ACTi

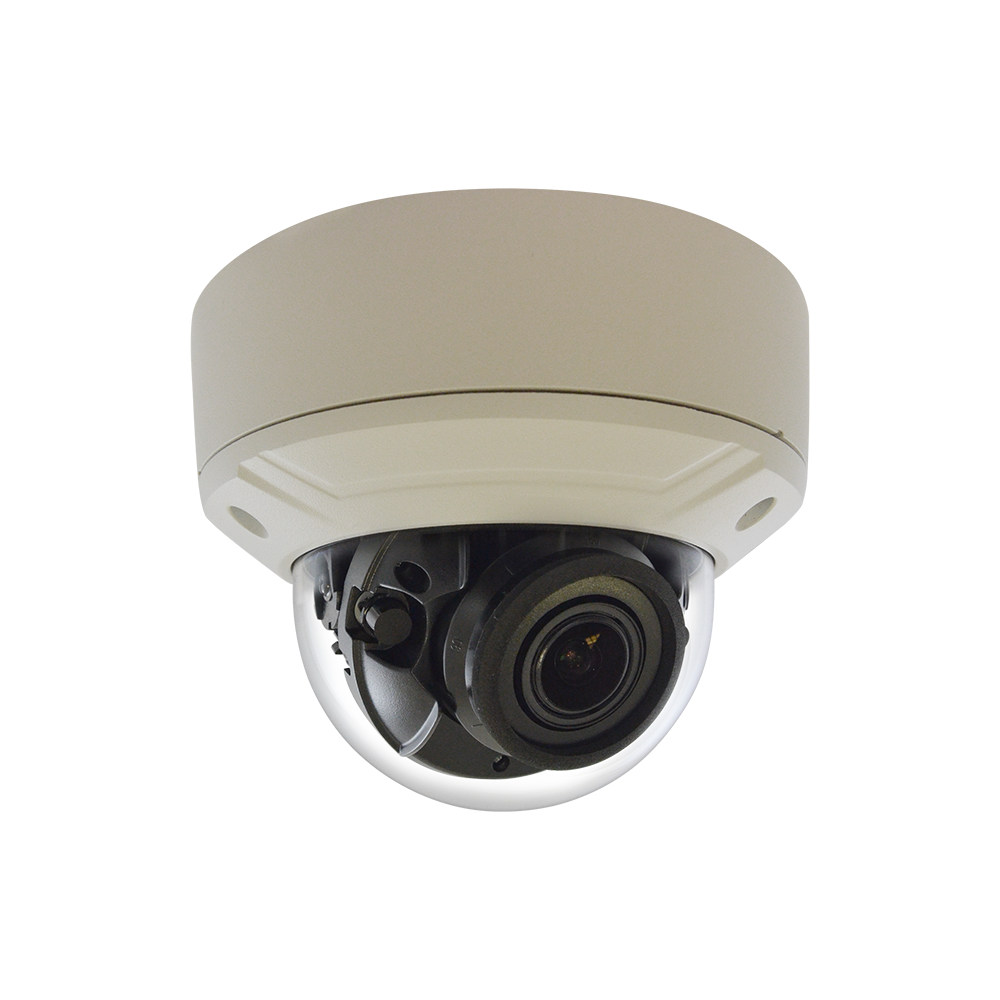

A811 - ACTi 4MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom Lens

A811 - ACTi 4MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom Lens

A8111

$498.75 NZD
$498.75 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock: 1 left
  • 4 Megapixel
  • Day & Night with Superior Low Light Sensitivity and IR LED
  • Extreme WDR
  • Super wide angle
  • Taiwan IoT Cybersecurity Certification Level 1 (TAICS, TCA)
  • Event trigger, response and notification



Device


Product Type Zoom Dome
Maximum Resolution 4MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.7 "
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.01 lux at F1.2 (AGC on); B/W: 0.002 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR LED IR LED (850 nm)
IR Working Distance 85m (1.0 lux)
Electronic Shutter 1/30-1/100000 second (auto mode)
S/N Ratio 75 dB

Lens


Focal Length Zoom, f2.7-13.5mm
Aperture F1.6
Zoom Ratio 5x optical zoom
Zoom Application Camera Installation
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 104° - 29°
Vertical Viewing Angle 55° - 17°
Viewing Angle Adjustment Pan: 0°-355°, Tilt: 0°-75°, Rotation: 0°-355°

Video


Compression H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264 Adaptive Stream (equivalent to Zip or Smart Stream or H.264+), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 2688 x 1520
30 fps at 2560 x 1440
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 640 x 480
Multi-Streaming Simultaneous quad streams
Bit Rate 128Kbps - 12Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (150 dB)
Image Enhancement White Balance, Backlight compensation (BLC), Brightness, Contrast, Sharpness, Automatic gain control
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
Built-in Analytics Tampering Detection, Face Detection, Object Line Crossing Detection, Object Enter Area Detection
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror, Rotation (Corridor mode)

Audio


Audio Type 2-way, Mic-in, Line-in, Line-out
Audio Compression G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, ICMP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control, Standard IoT Security (anti-hacking, anti-malware)

Event


Event Trigger Video motion detection (10 included and excluded polygonal regions), External device through digital input, Intelligent event detection, Sound detection, Video streams loss, System log buffer overrun, Remove system log, Logon events (Login Failure, Login Success, Block an Account)
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

System


System Monitor CPU loading, memory usage and network statistics via API
System Log Support
Watchdog Support

RFID Card


Integration


Unified Solution Fully compatible with ACTi software
GPS Position Manual setting
Edge Recording Support (integration with NVR by ONVIF Profile G or proprietary protocol)**
ONVIF Compliant Yes, Profile S, Profile G, Profile T, Profile M
GB28181 Compliant Yes
Web Browser IE 11, Google Chrome*, Microsoft Edge*, Apple Safari*
Auto Firmware Upgrade Yes

Interface


Audio Interface Cable with Terminal block
Analog Video Output 1 x CVBS, BNC connector, for installation only
Local Storage MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Digital Input/Output 1/1 (Cable with Terminal block)
Operating Button Reset Button

Installation


General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 10 W (DC), 12 W (PoE)
Weight 1060g (2.34lb)
Dimensions (Ø x H): 141mm x 99.5mm (5.55" x 3.9")
Environmental Casing Weatherproof (IP68), Vandal proof (IK10)
Corrosion Protection Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years.
Mount Type Surface, Wall Mount, Pole Mount, Pendant, Corner Mount
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity 10% - 95% RH
Approvals CE Class B, FCC Class B, EAC, BIS, IP68, NEMA 4X, IK10, Taiwan IoT Cybersecurity Certification Level 1 (TAICS, TCA)
Real-time Clock (RTC) Yes
