Dahua

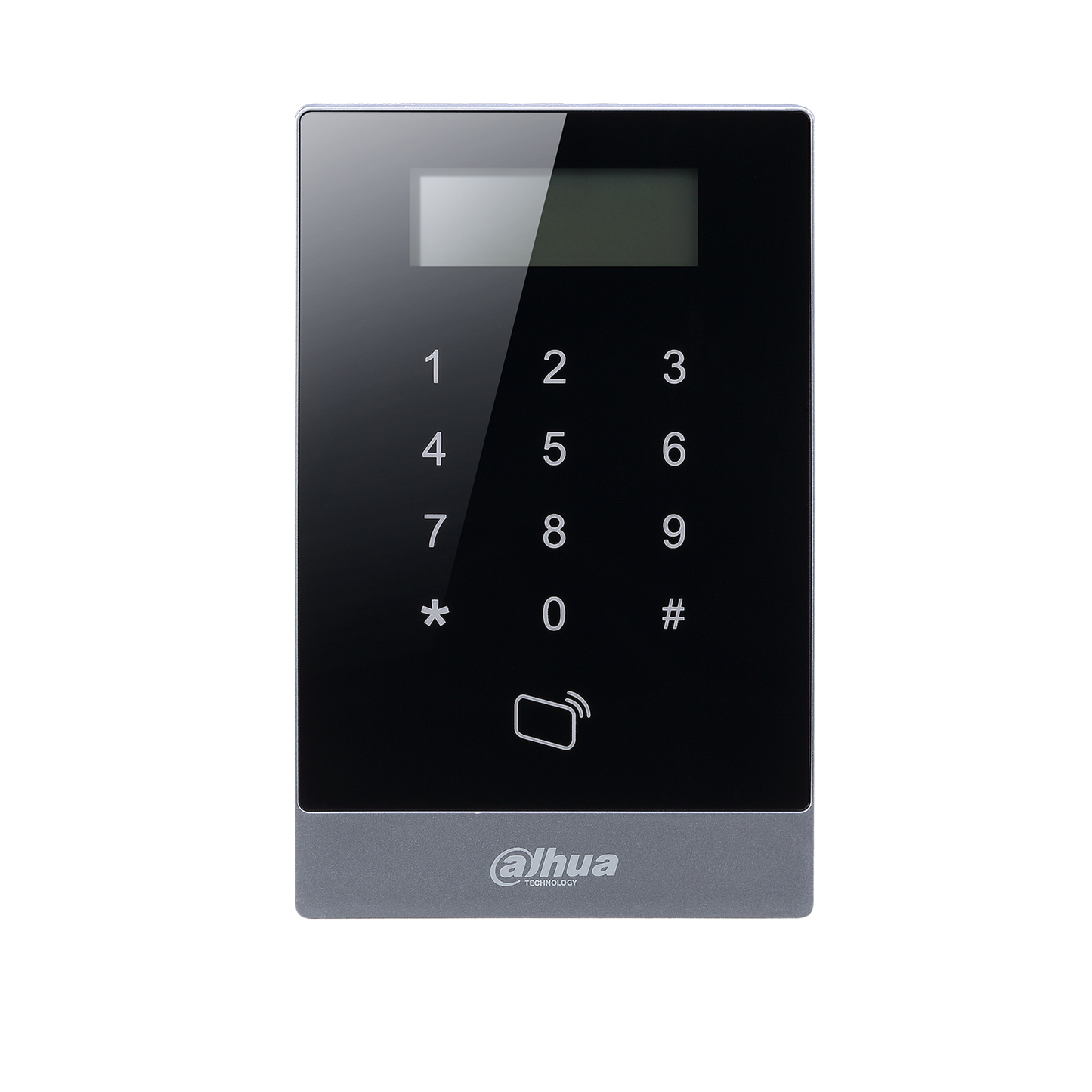

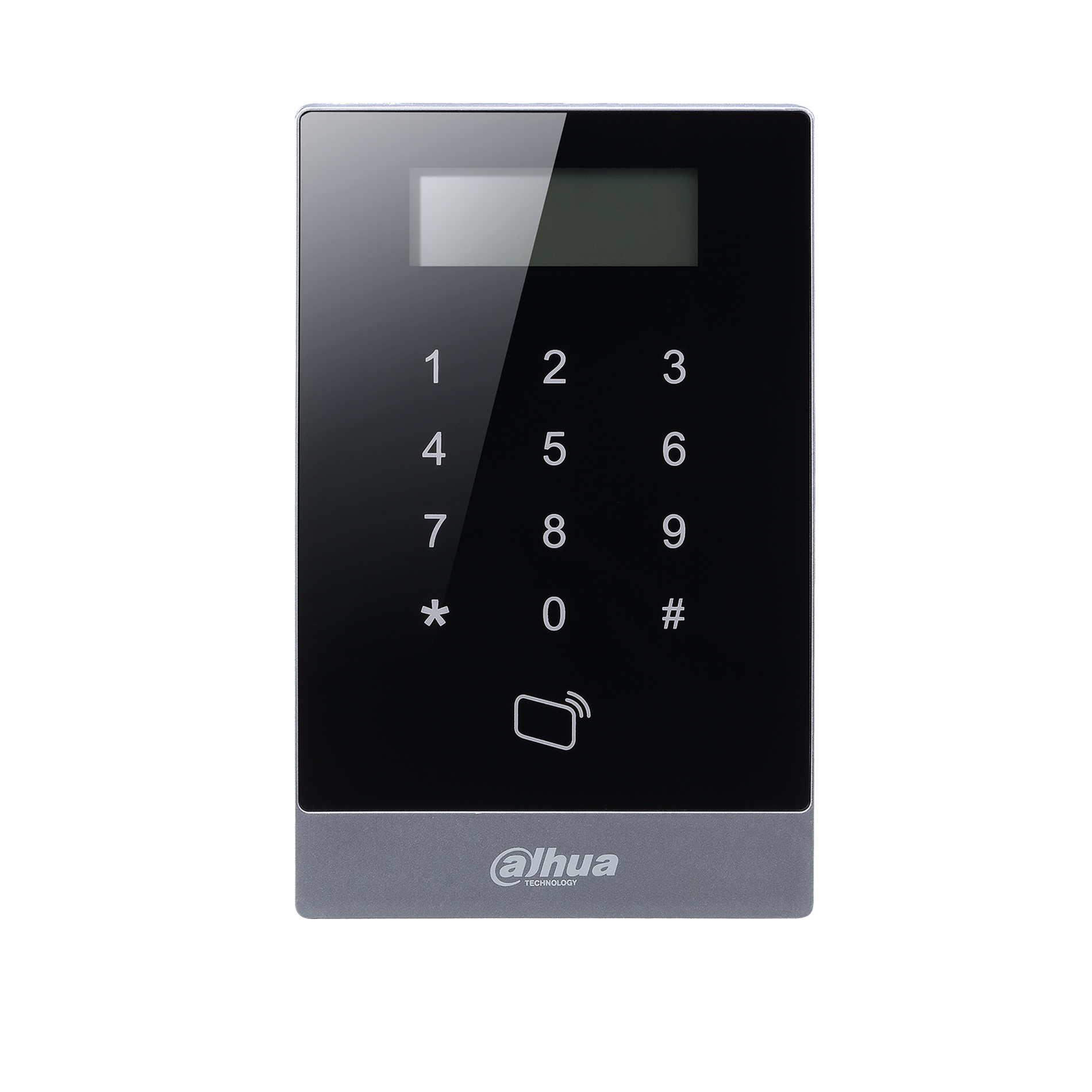

ASI1201A-D - IP Based Standalone Access Controller, IP55, PIN-CARD Access
ASI1201A-D - IP Based Standalone Access Controller, IP55, PIN-CARD Access
SKU:ASI1201A-D
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock: 21 left
Features
Includes:
- Touch keyboard and LCD display
- Support 30,000 valid cards & 150,000 records
- Supports EM (125kHz card)
- Support card, password and combination
- TCP/IP to PC
- Wiegand or RS-485 interface to reader
- Door time out alarm, intrusion alarm, duress alarm and tamper alarm
- Anti-pass back, multi-card open
- Software attendance
- Support 128 efficient time and holiday schedules
- Watch dog function ensure device free from halting
Specs
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
32 Bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Memory |
16M |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input/Output Ports |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input |
Door sensor x 1, Exit button x 1, Alarm input x 1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output |
Relay: Door lock x1 TTL: Bell x1,Alarm x2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reader |
Reader x 1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Read |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Read Format |
125KHz (-D version is EM) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Read Range |
3-8cm (max.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Response Time |
<0.1s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cardholders |
30,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Events |
150,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Management |
General, VIP, Guest, Patrol, Black list, Duress |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Function |
Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Period Setting |
Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods |
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
To PC |
RJ45(10/100M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
To Reader |
Wiegand/ RS485 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RTC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Voice Prompt |
No |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Beep Tone |
Buzzer |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Keyboard |
Sensitive touch keypad with blue backlight |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
9-15DC/200mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Environment |
-5C~+55C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Humidity |
95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension(W??D??H) |
97mm*16mm *150mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
0.3Kg |
