Dahua

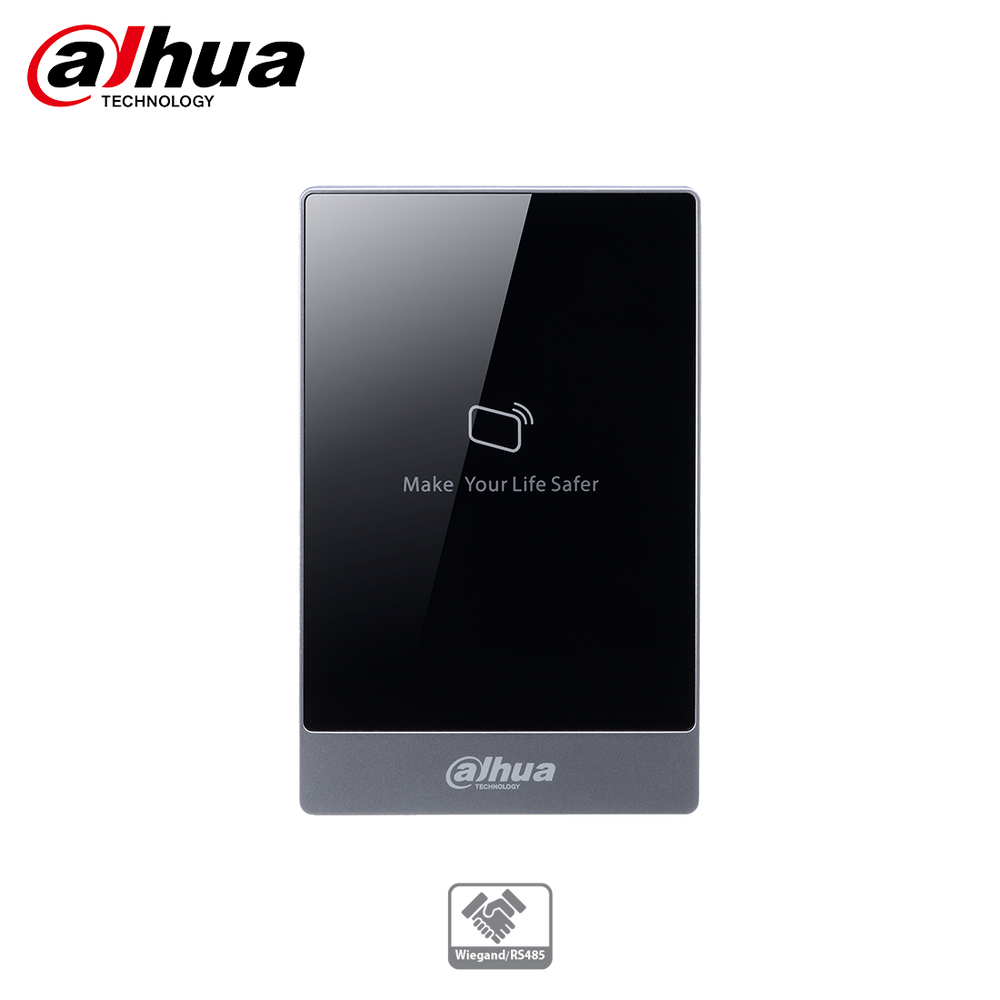

ASR1100A-D - RFID EM Wiegand Reader ‐ Blue Backlit

ASR1100A-D - RFID EM Wiegand Reader ‐ Blue Backlit

ASR1100A-D

$40.56 NZD
$40.56 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

51 in stock

Features

Includes:

  • RS‐485 protocol
  • 125KHz(EM‐ID)
  • Red and Green LEDs
  • Buzzer and LED indicator
  • Surface mounted installation
  • 5‐16V DC, IP55, .025Kg

Specs

Technical Specification

Model

ASR1100A-D



System

Main Processor

8 Bit

Read

Read Format

125KHz



Read Range

1cm–8cm (max.)

Reading time

<0.1s

Function

Tamper Alarm

Yes

Interface

To Controller

RS485, Wiegand34(Wiegand 26 optional)

General

LED Display

Blue backlight

Beep Tone

Buzzer

Power Supply

9V–15V DC/100mA

Operating Temperature

-30°C to +60°C

Working Humidity

≤95%

Dimension(W×D×H)

87mm×13mm×136mm

Weight

0.25kg

Working Environment

Indoor

Certificates

CE

Yes

FCC

Yes
