ACTi

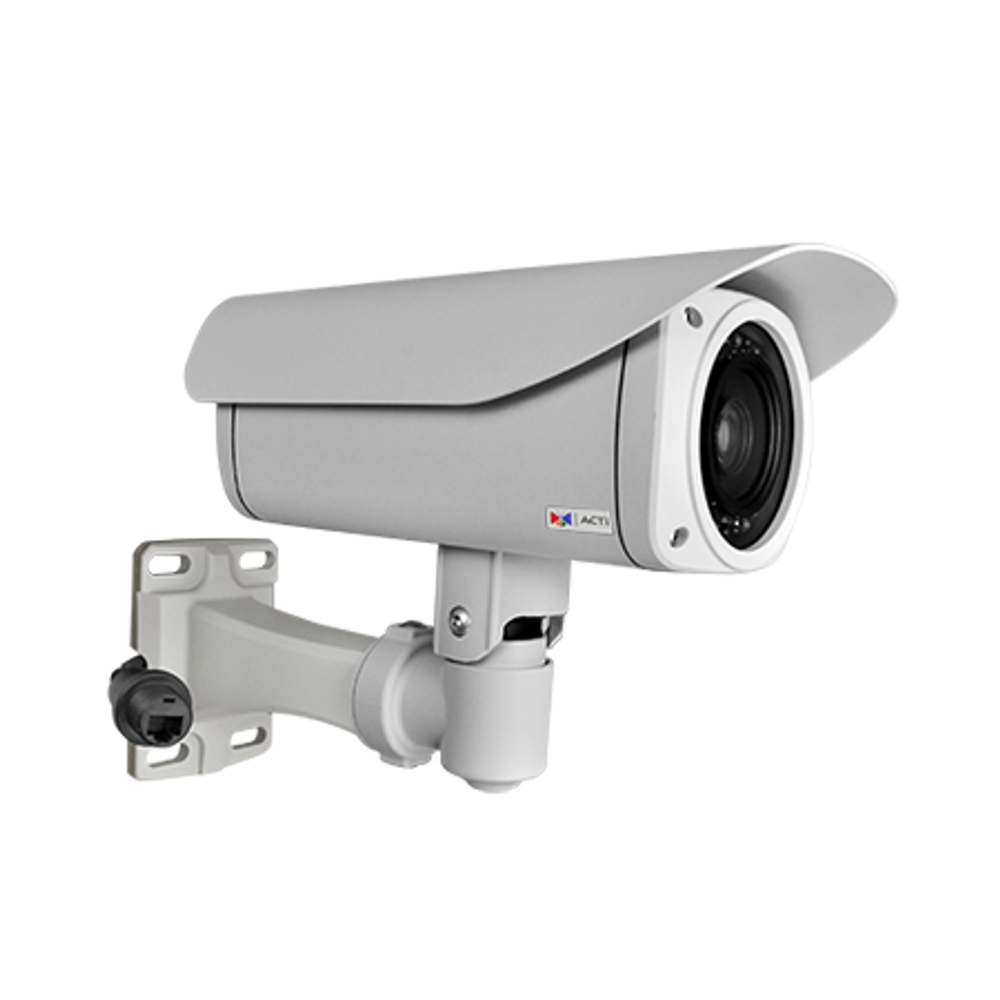

B47 - ACTi 3MP with D/N, Adaptive IR, Superior WDR, 12x Zoom Lens

B47 - ACTi 3MP with D/N, Adaptive IR, Superior WDR, 12x Zoom Lens

B47

$930.00 NZD
$930.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock: 1 left
  • 3 Megapixel
  • Day & Night with Adaptive IR LED
  • 12x Zoom Lens with f5.2-62.4mm/F1.8-F3.0, DC iris, Auto focus
  • Superior WDR
  • Event trigger, response and notification



Device


Product Type Zoom Bullet
Maximum Resolution 3MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/3 "
Effective Pixels 2048(H) X 1536(V) (3.15 MP)
Day / Night Yes
Low Light Sensitivity Standard
Minimum Illumination Color: 0.1 lux at F1.8 (30 IRE, 2400 K); B/W: 0 lux at F1.8 (IR LED on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1100nm
IR LED Adaptive IR LED x 27 (850 nm)
IR Working Distance 40m
Electronic Shutter 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode)
Horizontal Resolution (TV Lines) 1450 TVL
S/N Ratio 52 dB

Lens


Focal Length Zoom, f5.2-62.4mm
Aperture F1.8-F3.0
Zoom Ratio 12x optical zoom
Zoom Speed 2.3 second (wide to tele)
Zoom Application Camera Installation, Auto Zoom by Event, Manual Operation
Iris DC iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 50.2° - 4.69°
Vertical Viewing Angle 38.85° - 3.21°

PTZ


Pan, Tilt or Zoom protocol Visca, Pelco-D, Pelco-P, ACTi URL command

Video


Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 20 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28Kbps - 6Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Superior WDR (110 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
Digital Noise Reduction DNR
Privacy Mask 4 configurable regions for each of 17 preset points
Text Overlay Yes
On-Screen Graphics (Picture Overlay) Yes
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror

Audio


Audio Type 2-way, Line-in, Line-out
Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event


Event Trigger Video motion detection (3 regions), External device through digital input, Sound detection,
Event Response Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output

Integration


Unified Solution Fully compatible with ACTi software
Software Development Kit Yes
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile Q
GB28181 Compliant Yes
Web Browser IE 11 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
Auto Firmware Upgrade Yes

Interface


Audio Interface Terminal block
Local Storage MicroSDHC, MicroSDXC memory card slot (card not included)
Digital Input/Output 1/1

General


Power Source PoE Class 3 (IEEE802.3af), DC 12V
Power Consumption 12 W (PoE, heater and IR on)
Weight 2390g (5.269lb)
Dimensions (W x H x D): 122.4mm x 223.7mm x 317mm (4.82" x 8.81" x 12.48")
Environmental Casing Weatherproof (IP67), Vandal proof metal casing (IK10)
Bundled Accessories Bracket, Weatherproof connector kit
Mount Type Ceiling Bracket, Gang Box, Integrated Bracket, Pole Mount
Heater Yes
Starting Temperature -40°C ~ 50°C (-40°F ~ 122°F) within 30 minutes
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Operating Humidity 10% - 85% RH
Approvals CE, FCC, IP67, IK10 (metal casing), NEMA 4X, UL (for optional PoE injector and power adapter)
Real-time Clock (RTC) Yes
