Cambium Networks

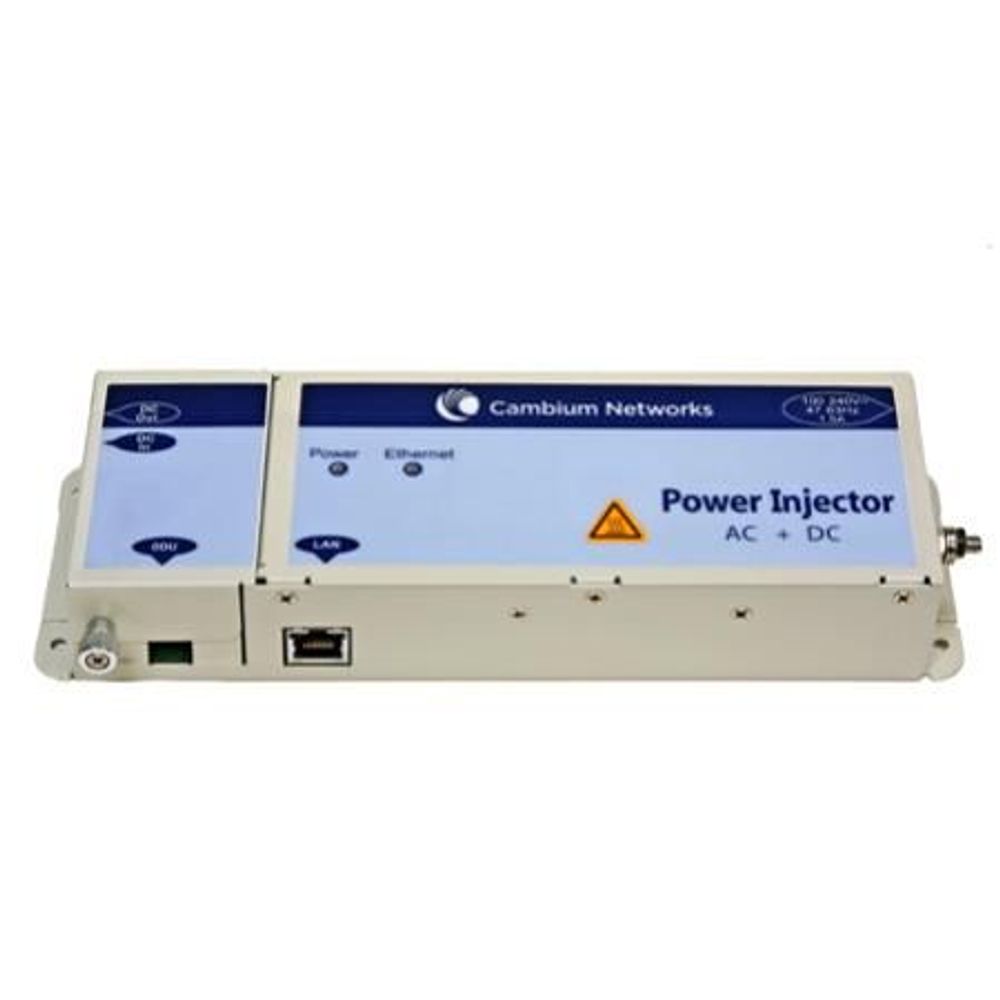

C000065L002 - Cambium PTP650/670 AC+DC Enhanced PoE Injector
C000065L002 - Cambium PTP650/670 AC+DC Enhanced PoE Injector
SKU:C000065L002
Regular price
$787.00 NZD
Regular price
Sale price
$787.00 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Cambium PTP650/670 AC+DC Enhanced Power Injector. This is an enhanced power injector that accepts either 100-240VAC or 48VDC input. It also tolerates a greater temperature range (-40° to 140° F or -40° to 60° C) and can power a device such as a video camera or wireless access point on the Auxiliary port of the ODU. The AC+DC injector can also be configured in redundant configurations for high availability requirements.
Details | |
---|---|
Manufacturer's Product Code | C000065L002 |
Input Voltage | AC: 100-240V, DC: 48VDC |
Output Voltage | DC Output 48-60V / 1.7A; ODU 48-60V / 1.7A |
Operating Temperature | -40° to 60° C |
Rating | Indoor |
Input Connector 1 | Figure 8 Power Cord |
Input Connector 2 | Wire Trminal (DC Input) |
Output Connector 1 | RJ45 Female |
Output Connector 2 | Wire Trminal (DC Output) |
Details | |
---|---|
Power Cord | Figure 8 Power Cord |
Specifications
Cambium PTP650/670 AC+DC Enhanced Power Injector. This is an enhanced power injector that accepts either 100-240VAC or 48VDC input. It also tolerates a greater temperature range (-40° to 140° F or -40° to 60° C) and can power a device such as a video camera or wireless access point on the Auxiliary port of the ODU. The AC+DC injector can also be configured in redundant configurations for high availability requirements.
Details | |
---|---|
Manufacturer's Product Code | C000065L002 |
Input Voltage | AC: 100-240V, DC: 48VDC |
Output Voltage | DC Output 48-60V / 1.7A; ODU 48-60V / 1.7A |
Operating Temperature | -40° to 60° C |
Rating | Indoor |
Input Connector 1 | Figure 8 Power Cord |
Input Connector 2 | Wire Trminal (DC Input) |
Output Connector 1 | RJ45 Female |
Output Connector 2 | Wire Trminal (DC Output) |
Details | |
---|---|
Power Cord | Figure 8 Power Cord |
