Cambium Networks

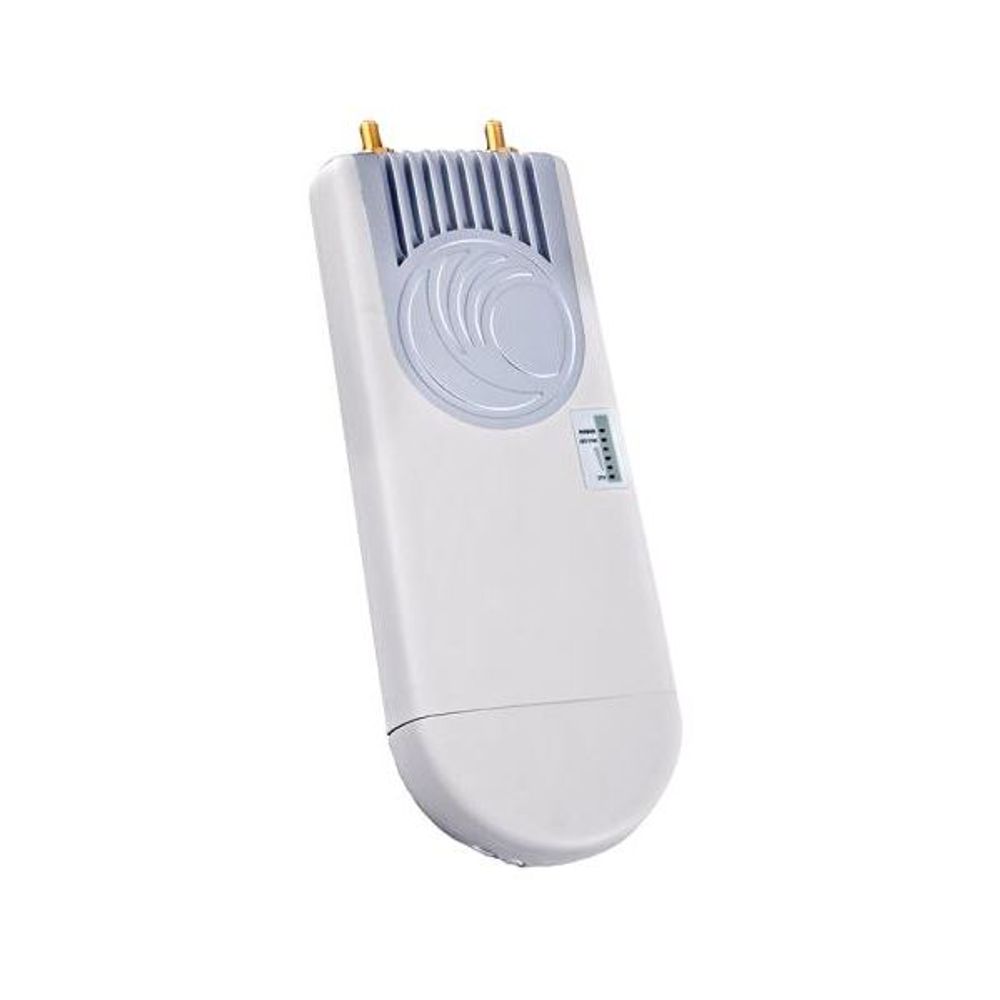

C025900A611A - Cambium ePMP 1000 2.5GHz Access Point Connectorised Radio

C025900A611A - Cambium ePMP 1000 2.5GHz Access Point Connectorised Radio

SKU:C025900A611A

Regular price $275.00 NZD
Regular price Sale price $275.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Cambium ePMP 1000 2.5GHz Access Point Connectorised Radio for MSP. Network operators are challenged to deliver reliable connectivity in overcrowded RF environments. As available spectrum becomes more congested, having the right broadband access solution that allows WISP's to deliver efficient quality cost effectively, is vital for all types of deployments. Maximise network performance using ePMP software with eFortify and eCommand features and tools. eFortify enhances the performance of the ePMP 1000 in high noise environments. eCommand provides a suite of management features and tools to assist network operators in planning, provisioning and monitoring of their network. The ePMP 1000 GPS Sync Radio provides flexibility to grow from a single sector deployment to complex multi-sector / multi-site deployments, as the subscriber base expands. Available in the 2.5 GHz frequency band, the platform delivers high performance and reliable broadband connectivity to customers, with services such as VoIP, video and data. The ePMP 1000 is the most effective connectivity solution for reaching the under and unconnected around the world.

The Cambium Networks ePMP 1000 GPS Sync Radio provides more than 200 Mbps of real user throughput. Using 2x2 MIMO-OFDM technologies, ePMP deployments achieve industry leading data rates.

Utilising GPS sync, ePMP is an ideal fit for networks that require capacity and reliability for superior QoS in remote and underserved areas. This integrated PTP and PMP solution features an efficient GPS synchronised operational mode that permits highly scalable frequency reuse.

When deployed with a sector antenna, the ePMP 1000 GPS Sync Radio can be configured as a GPS Synchronised Access Point serving ePMP Integrated Radios configured as Subscriber Modules. When deployed with a high gain point to point antenna, the ePMP GPS Sync Radio can be configured to be a GPS Synchronised Backhaul Master, forming a PTP link with another ePMP Radio module.
Features
  • Suitable for Managed Spectrum Park (MSP)
  • Covers 2580 - 2620 MHz frequencies
  • GPS Sync for frequency reuse
Details
Manufacturer's Code C025900A611A
Output Power -17 to +26 dBm (combined, to regional EIRP limit) (1 dB interval)
Channel Width 5 / 10 / 20 / 40 MHz
Frequency Range 2570 – 2620 MHz
Protocols Used IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Interfaces 100/1000BaseT, rate auto negotiated (802.3af compliant)
Temperature Range -30°C to +60°C (-22°F to +140°F)
PoE In 23 to 56 V, 30V PoE Supply (included), CMM3 & CMM4, 802.3af PoE Supply
Max Power consumption 10 W Maximum, 7.5 W Typical
Polarisation 2x2 MIMO/OFDM
Wind Loading 145 km/hour (90 mi/hour) when mounted on ePMP Sector Antennas
Dimensions 6.9 x 11 x 7.7 cm
IP Rating IP55
Subscribers Per Radio Up to 120
Details
Power Supply 3 Pin Clover Lead
Power Injector Included
Warranty Standard 12 Month RTB





Specifications





Details
Manufacturer's Code C025900A611A
Output Power -17 to +26 dBm (combined, to regional EIRP limit) (1 dB interval)
Channel Width 5 / 10 / 20 / 40 MHz
Frequency Range 2570 – 2620 MHz
Protocols Used IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Interfaces 100/1000BaseT, rate auto negotiated (802.3af compliant)
Temperature Range -30°C to +60°C (-22°F to +140°F)
PoE In 23 to 56 V, 30V PoE Supply (included), CMM3 & CMM4, 802.3af PoE Supply
Max Power consumption 10 W Maximum, 7.5 W Typical
Polarisation 2x2 MIMO/OFDM
Wind Loading 145 km/hour (90 mi/hour) when mounted on ePMP Sector Antennas
Dimensions 6.9 x 11 x 7.7 cm
IP Rating IP55
Subscribers Per Radio Up to 120
