Cambium Networks
C030045A002A - Cambium 3 GHz PMP 450i Integrated 90 Degree Access Point
C030045A002A - Cambium 3 GHz PMP 450i Integrated 90 Degree Access Point
SKU:C030045A002A
Regular price
$5,955.00 NZD
Regular price
Sale price
$5,955.00 NZD
Unit price
/
per
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Couldn't load pickup availability

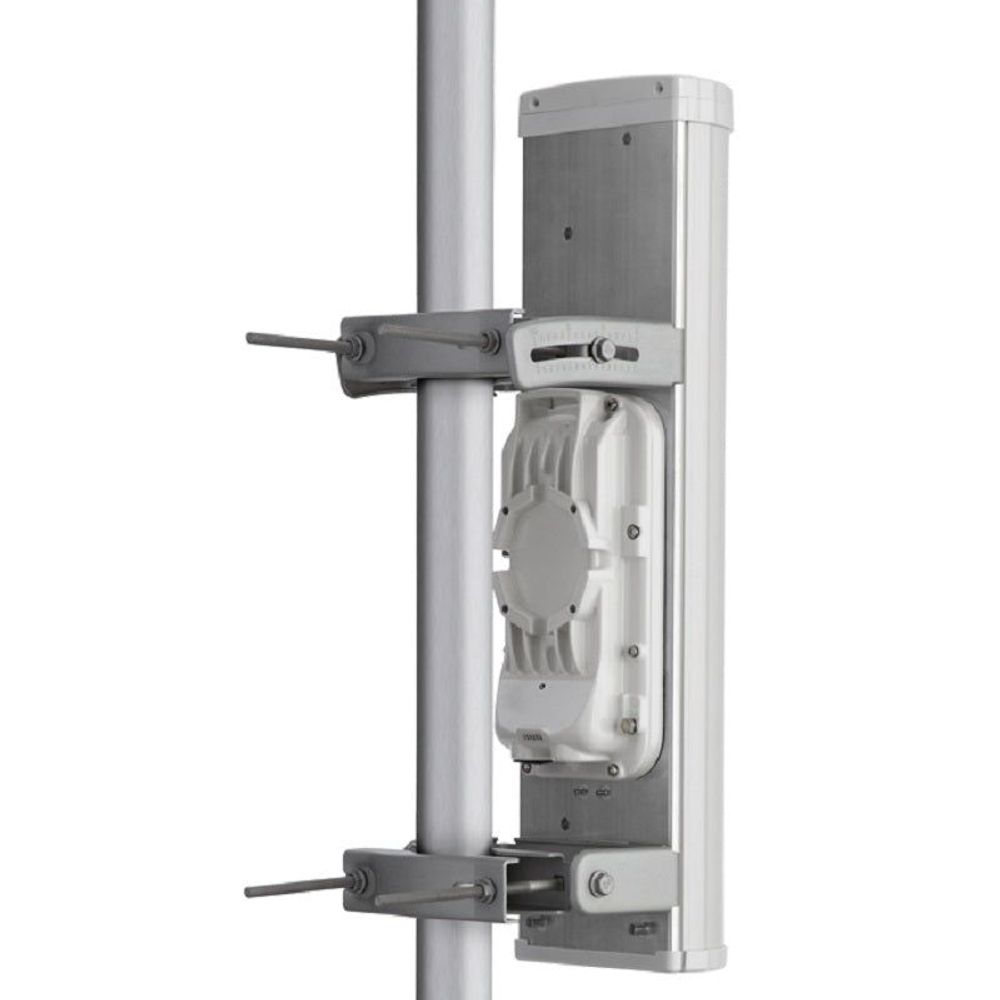

Cambium 3 GHz PMP 450i Access Point with Integrated 90 Degree Sector Antenna - C030045A002A.
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The PMP 450i Access Point product platform is the most scalable industrial-grade wireless broadband solution available.
Ultra-wide band radios
Supports the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.
Rugged metal enclosure
Designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.
Dynamic Interference Filtering
Provides industry leading noise isolation for improved performance.
Updated FPGA and SoC architecture
Triples the processing power compared to PMP 450.
Multifunction AUX Port
Allows for greater flexibility for deployment by adding a camera or other PoE directly.
Options for Integrated 90°/120º sector antenna
optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance.
Increase Throughput
Now capable of up to 300 Mbps per sector in a 40 MHz channel.
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The PMP 450i Access Point product platform is the most scalable industrial-grade wireless broadband solution available.
Ultra-wide band radios
Supports the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.
Rugged metal enclosure
Designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.
Dynamic Interference Filtering
Provides industry leading noise isolation for improved performance.
Updated FPGA and SoC architecture
Triples the processing power compared to PMP 450.
Multifunction AUX Port
Allows for greater flexibility for deployment by adding a camera or other PoE directly.
Options for Integrated 90°/120º sector antenna
optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance.
Increase Throughput
Now capable of up to 300 Mbps per sector in a 40 MHz channel.
Features
- Operates in the 3 GHz regional licensed band
- GPS Synchronization compatible with LTE/4G/5G
- Ultra-wide band radio (3300-3900 MHz)
- IP66/67 Rugged metal enclosure
- 2x2 OFDM MIMO radio capable of up to 300 Mbps per sector
- Starter Kit options available for regional operators
| Details | |
|---|---|
| Product Code | C030045A002A |
| Channel Spacing | Configurable on 2.5 MHz increments, 3 GHz customizable to 50 KHz |
| Frequency Range | 3 GHz: 3300–3900 MHz |
| Channel Width | 5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Subscriber Per Sector | Up to 238 |
| ARQ | Yes |
| Maximum Deployment Range | Approx. 10km with NZ Default Technical Conditions |
| Latency | 3 - 5 ms, typical |
| GPS Synchronization | Yes, via Autosync (CMM5 or UGPS) |
| Quality of Service | Diffserve QoS |
| Integrated Sector Antenna | 90° Azimuth (3dB rolloff), 120° Azimuth (6dB rolloff) 8° Elevation (3dB rolloff), 2° Electrical Downtilt, Dual polarity |
| Antenna Gain | 17 dBi ± 1 dBi integrated 90/120° sector |
| Maximum Transmit Power | +28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations) |
| Maximum EIRP | +43 dBm combined output (may be limited by regulations) |
| VSWR | 1.5, Reflection Coefficient 0.2, Reflected Power 4%, Return Loss 14 dB |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC |
| Surge Suppression (LPU fitted) | EN61000-4-5: 1.2us/50us, 500V voltage waveform Recommended external surge suppressor: Cambium Networks Model # C000000L033A |
| Mean Time Between Failure | >40 Years |
| Dust and Water Ingress Protection Rating | IP67, IP66 |
| Temperature / Humidity | -40°C to +75°C (-40°F to +167°F), 0-100% condensing |
| Weight | Approx. 7 kg (15.5 lbs) |
| Wind Survival | 322 km/h (200 mi/h) |
| Vibration | NEMA TS2 Section 2.1.9 and Section 2.2.3 |
| Shock | NEMA TS2 Section 2.1.10 and Section 2.2.4 |
| External Icing | NEMA 250-2003 Section 5.6 |
| Dimensions (H x W xD) | 90º Integrated 73.2 x 19.7 x 15 cm (28.8” x 7.8” x 5.9”) |
| Power Consumption | 15W typical, 18W max, Using Aux port PoE for another device will increase power draw |
| Input Voltage | 48-59V DC, 802.3at compatible |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License) |
| Details | |
|---|---|
| Power Supply | Sold Separately |
| Mounting Hardware | Included |
Specifications
Cambium 3 GHz PMP 450i Access Point with Integrated 90 Degree Sector Antenna - C030045A002A.
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The PMP 450i Access Point product platform is the most scalable industrial-grade wireless broadband solution available.
Ultra-wide band radios
Supports the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.
Rugged metal enclosure
Designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.
Dynamic Interference Filtering
Provides industry leading noise isolation for improved performance.
Updated FPGA and SoC architecture
Triples the processing power compared to PMP 450.
Multifunction AUX Port
Allows for greater flexibility for deployment by adding a camera or other PoE directly.
Options for Integrated 90°/120º sector antenna
optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance.
Increase Throughput
Now capable of up to 300 Mbps per sector in a 40 MHz channel.
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The PMP 450i Access Point product platform is the most scalable industrial-grade wireless broadband solution available.
Ultra-wide band radios
Supports the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.
Rugged metal enclosure
Designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.
Dynamic Interference Filtering
Provides industry leading noise isolation for improved performance.
Updated FPGA and SoC architecture
Triples the processing power compared to PMP 450.
Multifunction AUX Port
Allows for greater flexibility for deployment by adding a camera or other PoE directly.
Options for Integrated 90°/120º sector antenna
optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance.
Increase Throughput
Now capable of up to 300 Mbps per sector in a 40 MHz channel.
Features
- Operates in the 3 GHz regional licensed band
- GPS Synchronization compatible with LTE/4G/5G
- Ultra-wide band radio (3300-3900 MHz)
- IP66/67 Rugged metal enclosure
- 2x2 OFDM MIMO radio capable of up to 300 Mbps per sector
- Starter Kit options available for regional operators
| Details | |
|---|---|
| Product Code | C030045A002A |
| Channel Spacing | Configurable on 2.5 MHz increments, 3 GHz customizable to 50 KHz |
| Frequency Range | 3 GHz: 3300–3900 MHz |
| Channel Width | 5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Subscriber Per Sector | Up to 238 |
| ARQ | Yes |
| Maximum Deployment Range | Approx. 10km with NZ Default Technical Conditions |
| Latency | 3 - 5 ms, typical |
| GPS Synchronization | Yes, via Autosync (CMM5 or UGPS) |
| Quality of Service | Diffserve QoS |
| Integrated Sector Antenna | 90° Azimuth (3dB rolloff), 120° Azimuth (6dB rolloff) 8° Elevation (3dB rolloff), 2° Electrical Downtilt, Dual polarity |
| Antenna Gain | 17 dBi ± 1 dBi integrated 90/120° sector |
| Maximum Transmit Power | +28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations) |
| Maximum EIRP | +43 dBm combined output (may be limited by regulations) |
| VSWR | 1.5, Reflection Coefficient 0.2, Reflected Power 4%, Return Loss 14 dB |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC |
| Surge Suppression (LPU fitted) | EN61000-4-5: 1.2us/50us, 500V voltage waveform Recommended external surge suppressor: Cambium Networks Model # C000000L033A |
| Mean Time Between Failure | >40 Years |
| Dust and Water Ingress Protection Rating | IP67, IP66 |
| Temperature / Humidity | -40°C to +75°C (-40°F to +167°F), 0-100% condensing |
| Weight | Approx. 7 kg (15.5 lbs) |
| Wind Survival | 322 km/h (200 mi/h) |
| Vibration | NEMA TS2 Section 2.1.9 and Section 2.2.3 |
| Shock | NEMA TS2 Section 2.1.10 and Section 2.2.4 |
| External Icing | NEMA 250-2003 Section 5.6 |
| Dimensions (H x W xD) | 90º Integrated 73.2 x 19.7 x 15 cm (28.8” x 7.8” x 5.9”) |
| Power Consumption | 15W typical, 18W max, Using Aux port PoE for another device will increase power draw |
| Input Voltage | 48-59V DC, 802.3at compatible |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License) |
| Details | |
|---|---|
| Power Supply | Sold Separately |
| Mounting Hardware | Included |
