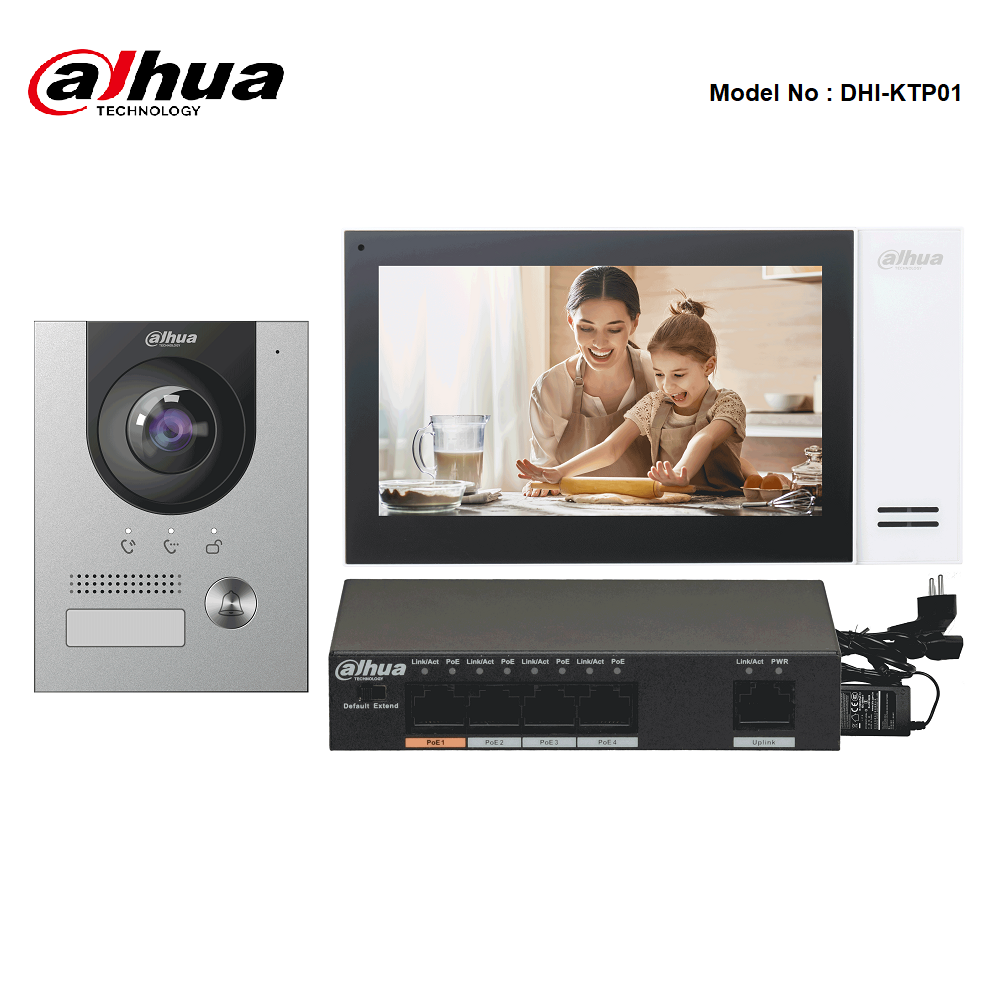

DHI-KTP01L(S) - Dahua - IP Intercom Kit, Door Station, 7" Monitor, Switch, Surface Mount
DHI-KTP01L(S) - Dahua - IP Intercom Kit, Door Station, 7" Monitor, Switch, Surface Mount
SKU:DHI-KTP01L(S)
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock: 1 left
Features
Includes:
IP VILLA DOOR STATION
- 2MP CMOS camera
- Mechanical button
- Night vision & voice indicator
- 160 angle of view
- Group call
- Aluminium alloy plate
- IK07&IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
- Surface mounted
- Support standard PoE
IP INDOOR MONITOR
- IPC surveillance
- Alarm integration
- High performance
- Embedded 8GB SD card
- Support standard PoE
POE SWITCH
- 4 PoE port + 1 trunk port
- Switch model is PFS3005-4ET-60
Specs
Model - DHI-KTP01-S
Technical Specification: Outdoor Unit |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model |
DHI-VTO2202S-P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System Parameter |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Host Processor |
Embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera |
1/2.8" 2MP CMOS high definition low illumination colorful |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View |
H:160 V:82 D:180 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
Noise suppression and echo cancellation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Encoding |
H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
PAL:25 fps NTSC:30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Encoding |
G.711 U |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
256 K to 2 M |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Light Compensation |
IR Supplement |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 Port |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output/Input |
1/1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lock Control |
1 set |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Status Detection |
1 set |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Eoc |
1 set |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exit Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper Switch |
1 set |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Interface |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output |
12V/100mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Parameter |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper Alarm |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Sensor Timeout Alarm |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Parameter |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
Built-in Omnidirectional Microphone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
Built-in Loudspeaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Status Indicator |
Calling & Communication & Unlocked |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Methods |
Digital communication |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Unlock Mode |
Remote unlocking |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Snapshot |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Leave Videos or Text Messages |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
Extended 64 G TF Card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WEB Configuration |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Real-time Monitor |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Normal Parameter |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Housing Material |
Aluminum |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply Mode |
POE or DC 12V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Method |
Surface mounted |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
130 mmx96 mmx28.5 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Temperature |
-30C to +60CÂ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
12W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Total Weight |
0.35kg/0.77lb |
Technical Specification: Indoor Unit |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model |
DHI-VTH2421FW-P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
High performance embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded LINUX OS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Type |
Capacitive screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display |
7-inch TFT screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
1024Â x 600 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711A/G.711U/PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 channel all-direction microphone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
Built-in 1.5W loudspeaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Mode |
Support dual-way bidirectional talk |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Enhancement |
Support echo cancellation/DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate |
16 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Mode |
Full digital |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Information Release |
Support to receive and view notifications issued by center |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Leave Videos or Text Messages |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DND Mode |
Support to set DND period |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub-station Quantity |
9 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
6 channel (switch quantity) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
1 RJ-45 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SOS Alarm |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
PC+ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color |
Appearance Color |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
Power Supply |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessories |
Default bracket |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
119.6 mm x 221.5 mm x 21.5 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-10C to +55C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%RH-95%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Standby 4W, work 6W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.35 Kg (0.77 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply Mode |
PoE or DC 12V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G |
