Cambium Networks

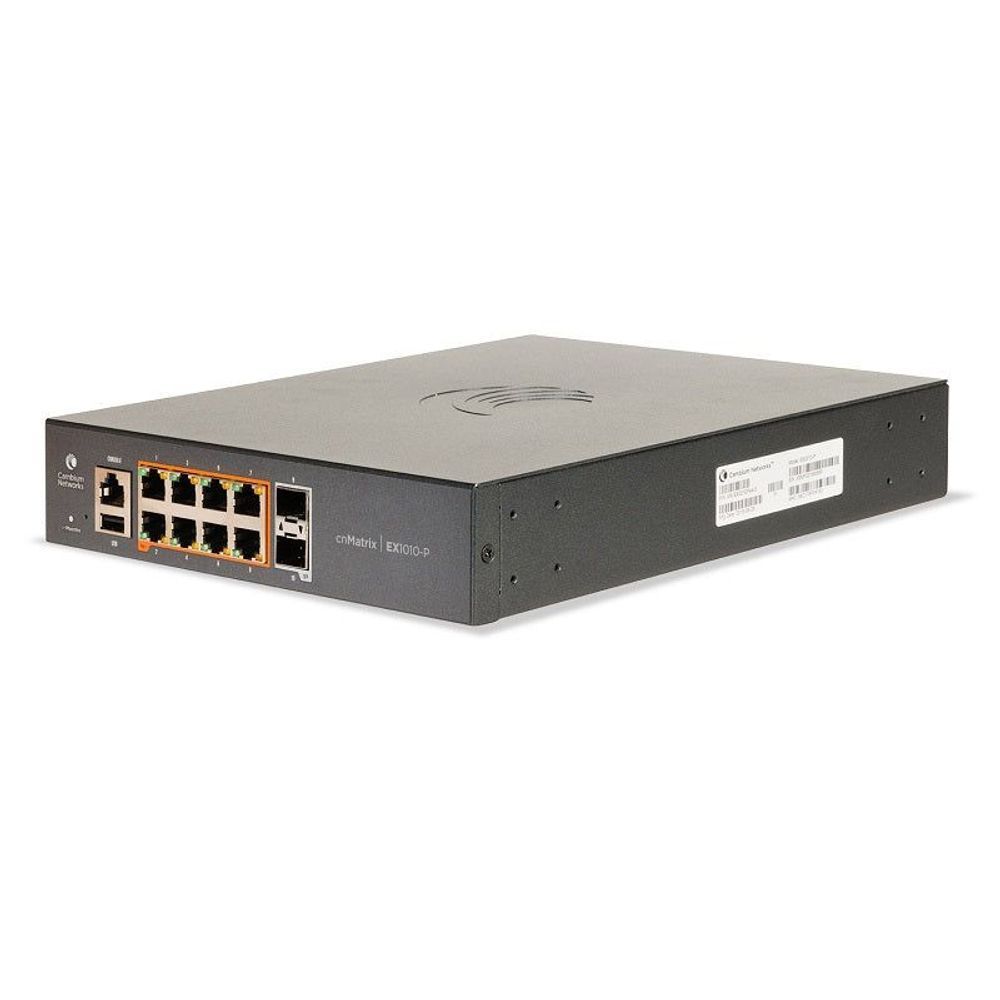

EX1010-P - Cambium cnMatrix EX1010-P Intelligent PoE+ Ethernet Switch with 8x 1GE & 2x SFP ports
EX1010-P - Cambium cnMatrix EX1010-P Intelligent PoE+ Ethernet Switch with 8x 1GE & 2x SFP ports
SKU:EX1010-P
Regular price
$720.00 NZD
Regular price
Sale price
$720.00 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*
The Cambium cnMatrix EX1010-P (MX-EX1010PxA-0) is an Intelligent Ethernet PoE+ Switch with 8x 1Gbps and 2x 1Gbps SFP fiber ports. Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
Improve network performance while reducing the time and cost of provisioning and management with the Cambium cnMatrix series of fully managed switches, delivering full Layer 2 capabilities with enhanced access security.
Improve network performance while reducing the time and cost of provisioning and management with the Cambium cnMatrix series of fully managed switches, delivering full Layer 2 capabilities with enhanced access security.
Features
- 8x PoE+ 802.3af/at Compliant Gigabit Ethernet Ports
- Easy and simple free cloud management with cnMaestro
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
- Limited lifetime warranty (5 Years)
Details | |
---|---|
Manufacturers Product code | MX-EX1010PxA-0 |
Non-Blocking Throughput | 20Gbps |
Forwarding Rate in Mpps (64 Byte Packets) | 120 |
Gigabit Ethernet Ports | 8 with 802.3af/at Compliant PoE Output |
Uplink Ports | 2 SFP |
Serial Console Port | 1 RJ45 |
USB | 1 |
Internal Fans | Fanless |
LEDs Per Port | Link/Activity |
Rack Mount Kit | Optional (Sold Separately) |
Power Supply | 100-240 VAC |
Max Switch Power (WITH TRAFFIC) | 10.54 W |
MTBF (Hours) | 338,917 |
Weight | 1.99 kg |
Dimensions | 21 x 4.4 x 25 cm |
PoE+ Power Budget | 75 W |
PoE+ Voltage | 54 V |
PoE Max Power Per Port | 30W |
Temperature Range | -0°C to +50°C |
Operating Humidity | +55° at 95% RH |
Storage Temperature | -40°C to +70°C |
Details | |
---|---|
Power Supply | (1) IEC Power Cord |
Specifications
The Cambium cnMatrix EX1010-P (MX-EX1010PxA-0) is an Intelligent Ethernet PoE+ Switch with 8x 1Gbps and 2x 1Gbps SFP fiber ports. Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
Improve network performance while reducing the time and cost of provisioning and management with the Cambium cnMatrix series of fully managed switches, delivering full Layer 2 capabilities with enhanced access security.
Improve network performance while reducing the time and cost of provisioning and management with the Cambium cnMatrix series of fully managed switches, delivering full Layer 2 capabilities with enhanced access security.
Features
- 8x PoE+ 802.3af/at Compliant Gigabit Ethernet Ports
- Easy and simple free cloud management with cnMaestro
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
- Limited lifetime warranty (5 Years)
Details | |
---|---|
Manufacturers Product code | MX-EX1010PxA-0 |
Non-Blocking Throughput | 20Gbps |
Forwarding Rate in Mpps (64 Byte Packets) | 120 |
Gigabit Ethernet Ports | 8 with 802.3af/at Compliant PoE Output |
Uplink Ports | 2 SFP |
Serial Console Port | 1 RJ45 |
USB | 1 |
Internal Fans | Fanless |
LEDs Per Port | Link/Activity |
Rack Mount Kit | Optional (Sold Separately) |
Power Supply | 100-240 VAC |
Max Switch Power (WITH TRAFFIC) | 10.54 W |
MTBF (Hours) | 338,917 |
Weight | 1.99 kg |
Dimensions | 21 x 4.4 x 25 cm |
PoE+ Power Budget | 75 W |
PoE+ Voltage | 54 V |
PoE Max Power Per Port | 30W |
Temperature Range | -0°C to +50°C |
Operating Humidity | +55° at 95% RH |
Storage Temperature | -40°C to +70°C |
Details | |
---|---|
Power Supply | (1) IEC Power Cord |
