EX1028-P - Cambium cnMatrix EX1028-P Intelligent Ethernet PoE+ Switch with 24x 1GE PoE+ & 4x SFP Ports
EX1028-P - Cambium cnMatrix EX1028-P Intelligent Ethernet PoE+ Switch with 24x 1GE PoE+ & 4x SFP Ports
SKU:EX1028-P
Regular price
$1,346.00 NZD
Regular price
Sale price
$1,346.00 NZD
Unit price
/
per
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Couldn't load pickup availability

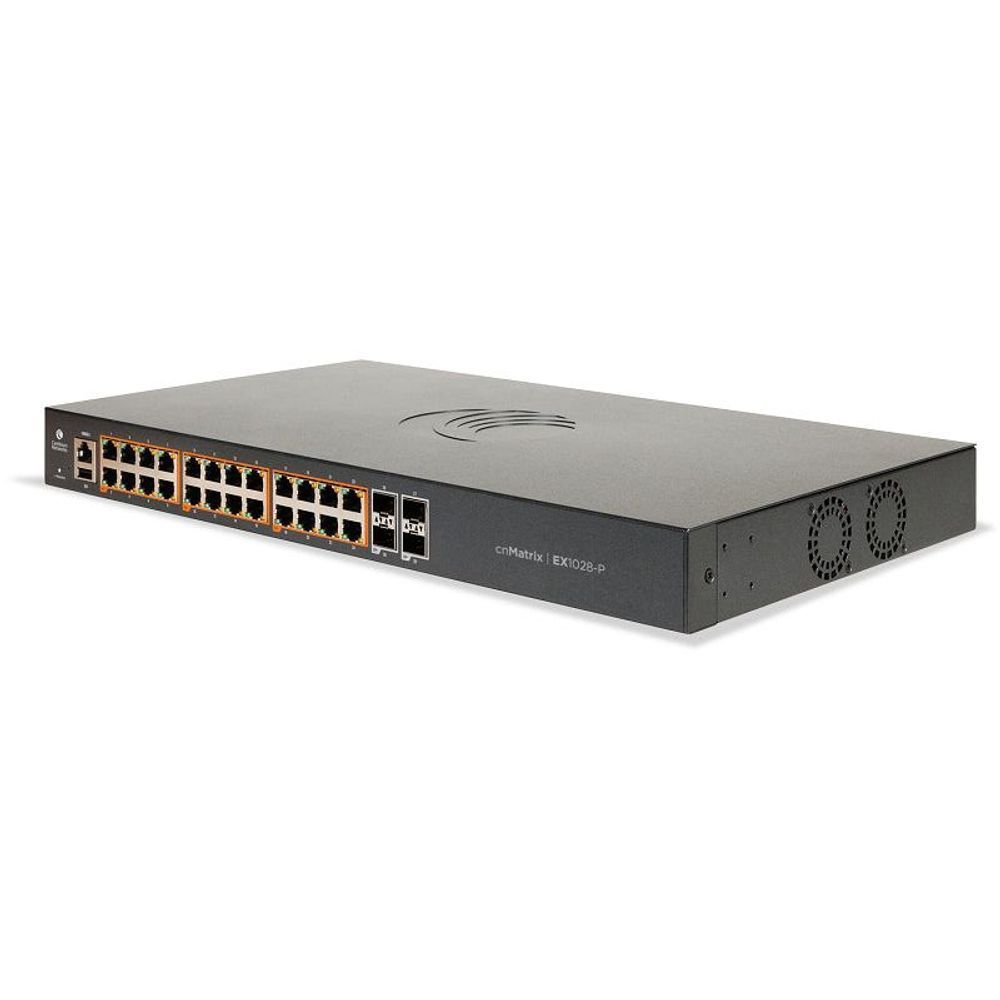

The Cambium cnMatrix EX1028-P (MX-EX1028PxB-0) is an Intelligent Ethernet PoE+ Switch with 24x 1GE PoE+ & 4x SFP Ports. Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
Improve network performance while reducing the time and cost of provisioning and management with the Cambium cnMatrix series of fully managed switches, delivering full Layer 2 capabilities with enhanced access security.
The EX1028-P supports 802.3af/at PoE+ (Power over Ethernet) output on all 24x 1G Ethernet Ports with a max power budget of 200 W.
Improve network performance while reducing the time and cost of provisioning and management with the Cambium cnMatrix series of fully managed switches, delivering full Layer 2 capabilities with enhanced access security.
The EX1028-P supports 802.3af/at PoE+ (Power over Ethernet) output on all 24x 1G Ethernet Ports with a max power budget of 200 W.
Features
- Support 802.3af/at PoE+ on all ethernet ports
- Max PoE+ Power Budget of 200 W
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Non-blocking, line-rate architecture with fully featured L2 switching
- Includes a 5-Year Limited Lifetime Warranty
| Details | |
|---|---|
| Manufacturers Product code | MX-EX1028PxB-0 |
| Non-Blocking Throughput | 56Gbps |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| Gigabit Ethernet Ports | 24 |
| PoE+ Enabled Ports (802.3af/at) | 24 |
| Uplink Ports | 4 SFP |
| Serial Console Port | 1 RJ45 |
| USB | 1 |
| Internal Fans | 2 |
| Acoustic Noise dBA (Ambient Temperature) | 40 dB - < 33°C, 44.3 dB - 30°C-40°C, 52 dB - > 43°C |
| LEDs Per Port | Link/Activity, PoE |
| PoE+ Power Budget | 200 W |
| PoE+ Voltage | 54 V |
| PoE Max Power Per Port | 30 W |
| Rack Mountable | Yes 1U |
| Rack Mount Kit | Included |
| Power Supply | 100-240 VAC |
| Max Switch Power (WITH TRAFFIC) | 25.10 W |
| MTBF (Hours) | 285,350 |
| Weight | 3.96kg |
| Dimensions | 44 x 4.4 x 25cm |
| Temperature Range | 0°C to +50°C |
| Operating Humidity | +55° at 95% RH |
| Storage Temperature | -40°C to +70°C |
| Details | |
|---|---|
| Power Supply | (1) IEC Power Cord |
| Mounting Hardware | 1U Rackmount Kit Included |
Specifications
The Cambium cnMatrix EX1028-P (MX-EX1028PxB-0) is an Intelligent Ethernet PoE+ Switch with 24x 1GE PoE+ & 4x SFP Ports. Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
Improve network performance while reducing the time and cost of provisioning and management with the Cambium cnMatrix series of fully managed switches, delivering full Layer 2 capabilities with enhanced access security.
The EX1028-P supports 802.3af/at PoE+ (Power over Ethernet) output on all 24x 1G Ethernet Ports with a max power budget of 200 W.
Improve network performance while reducing the time and cost of provisioning and management with the Cambium cnMatrix series of fully managed switches, delivering full Layer 2 capabilities with enhanced access security.
The EX1028-P supports 802.3af/at PoE+ (Power over Ethernet) output on all 24x 1G Ethernet Ports with a max power budget of 200 W.
Features
- Support 802.3af/at PoE+ on all ethernet ports
- Max PoE+ Power Budget of 200 W
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Non-blocking, line-rate architecture with fully featured L2 switching
- Includes a 5-Year Limited Lifetime Warranty
| Details | |
|---|---|
| Manufacturers Product code | MX-EX1028PxB-0 |
| Non-Blocking Throughput | 56Gbps |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| Gigabit Ethernet Ports | 24 |
| PoE+ Enabled Ports (802.3af/at) | 24 |
| Uplink Ports | 4 SFP |
| Serial Console Port | 1 RJ45 |
| USB | 1 |
| Internal Fans | 2 |
| Acoustic Noise dBA (Ambient Temperature) | 40 dB - < 33°C, 44.3 dB - 30°C-40°C, 52 dB - > 43°C |
| LEDs Per Port | Link/Activity, PoE |
| PoE+ Power Budget | 200 W |
| PoE+ Voltage | 54 V |
| PoE Max Power Per Port | 30 W |
| Rack Mountable | Yes 1U |
| Rack Mount Kit | Included |
| Power Supply | 100-240 VAC |
| Max Switch Power (WITH TRAFFIC) | 25.10 W |
| MTBF (Hours) | 285,350 |
| Weight | 3.96kg |
| Dimensions | 44 x 4.4 x 25cm |
| Temperature Range | 0°C to +50°C |
| Operating Humidity | +55° at 95% RH |
| Storage Temperature | -40°C to +70°C |
| Details | |
|---|---|
| Power Supply | (1) IEC Power Cord |
| Mounting Hardware | 1U Rackmount Kit Included |
