Cambium Networks

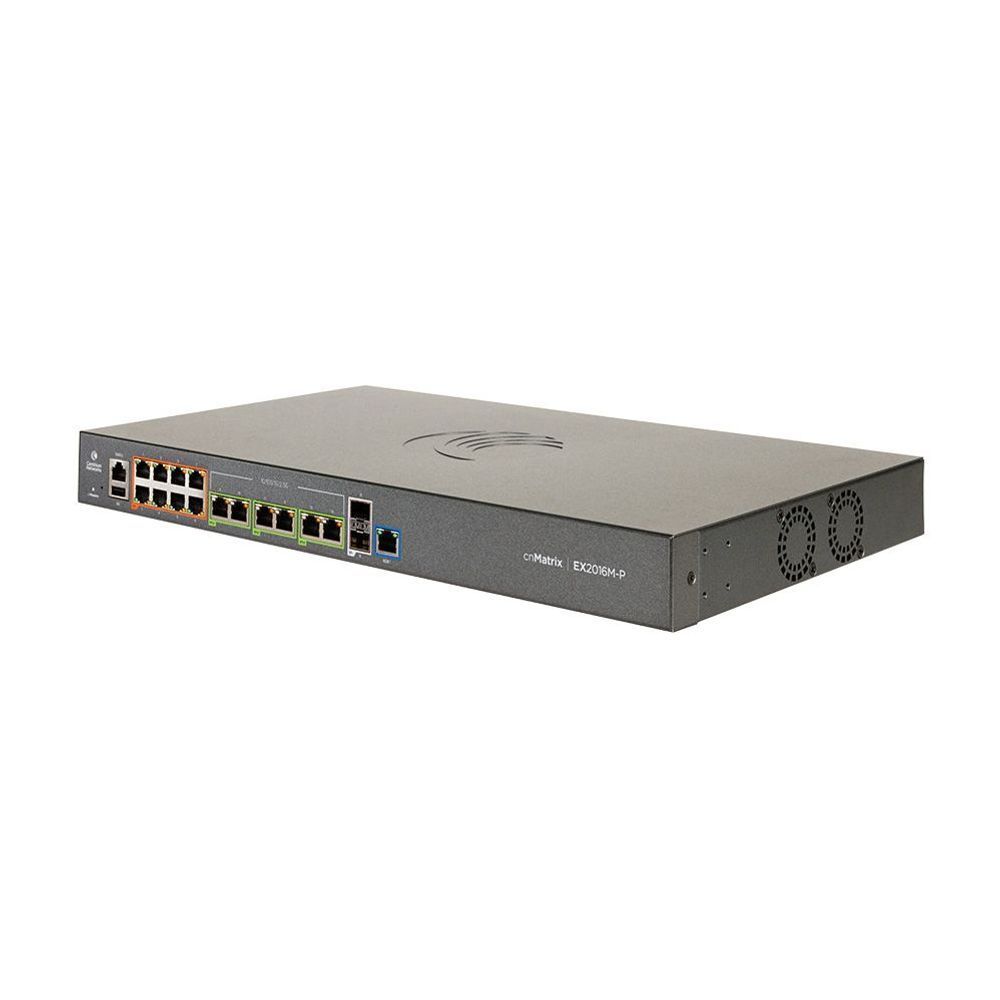

EX2016M-P - Cambium cnMatrix EX2016M-P 16-Port Enterprise Cloud Managed PoE Switch with SFP+

EX2016M-P - Cambium cnMatrix EX2016M-P 16-Port Enterprise Cloud Managed PoE Switch with SFP+

EX2016M-P

$3,305.00 NZD
$3,305.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*
Cambium cnMatrix EX2016M-P 16-Port Enterprise Cloud Managed PoE Switch with SFP+. Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports.
Features
  • 6 x 2.5 Gigabit Compatible Ethernet Ports
  • Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS*
  • Zero-touch deployment of switches makes installation easy
  • Policy Based Automation eliminates manual and time consuming configuration
  • Enhanced Security with automated device profiling and segmentation
  • Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
  • Unified Wired-Wireless access solution
  • Non-blocking, line-rate architecture with fully featured L2/L3 switching
  • Limited lifetime warranty (5 Years)
Details
Manufacturers Product code MXEX2016MXPA00
Non-Blocking Throughput 86Gbps
PoE Enabled Ports 14
PoE Power Budget 240W
Gigabit Ethernet Ports 8
2.5 G Ethernet Ports 6
Uplink Ports 2 SFP+
Serial Console Port 1 RJ45
USB 1 (Reserved for future use)
OOB Management Port 1
Internal Fans 2
Power Supply AC/Internal
LEDs Per Port Link/activity POE
Rack Mountable Yes 1U
Rack Mount Kit Included
Temperature Range -0°C to +50°C
Operating Humidity +55° at 95% RH
Storage Temperature -40°C to +70°C
Weight 3.6kg
Dimensions 44 x 4.4 x 25cm



Details
Power Supply (1) IEC Power Cord
Mounting Hardware 1U Rackmount Kit Included





Specifications





Details
Manufacturers Product code MXEX2016MXPA00
Non-Blocking Throughput 86Gbps
PoE Enabled Ports 14
PoE Power Budget 240W
Gigabit Ethernet Ports 8
2.5 G Ethernet Ports 6
Uplink Ports 2 SFP+
Serial Console Port 1 RJ45
USB 1 (Reserved for future use)
OOB Management Port 1
Internal Fans 2
Power Supply AC/Internal
LEDs Per Port Link/activity POE
Rack Mountable Yes 1U
Rack Mount Kit Included
Temperature Range -0°C to +50°C
Operating Humidity +55° at 95% RH
Storage Temperature -40°C to +70°C
Weight 3.6kg
Dimensions 44 x 4.4 x 25cm
View full details
