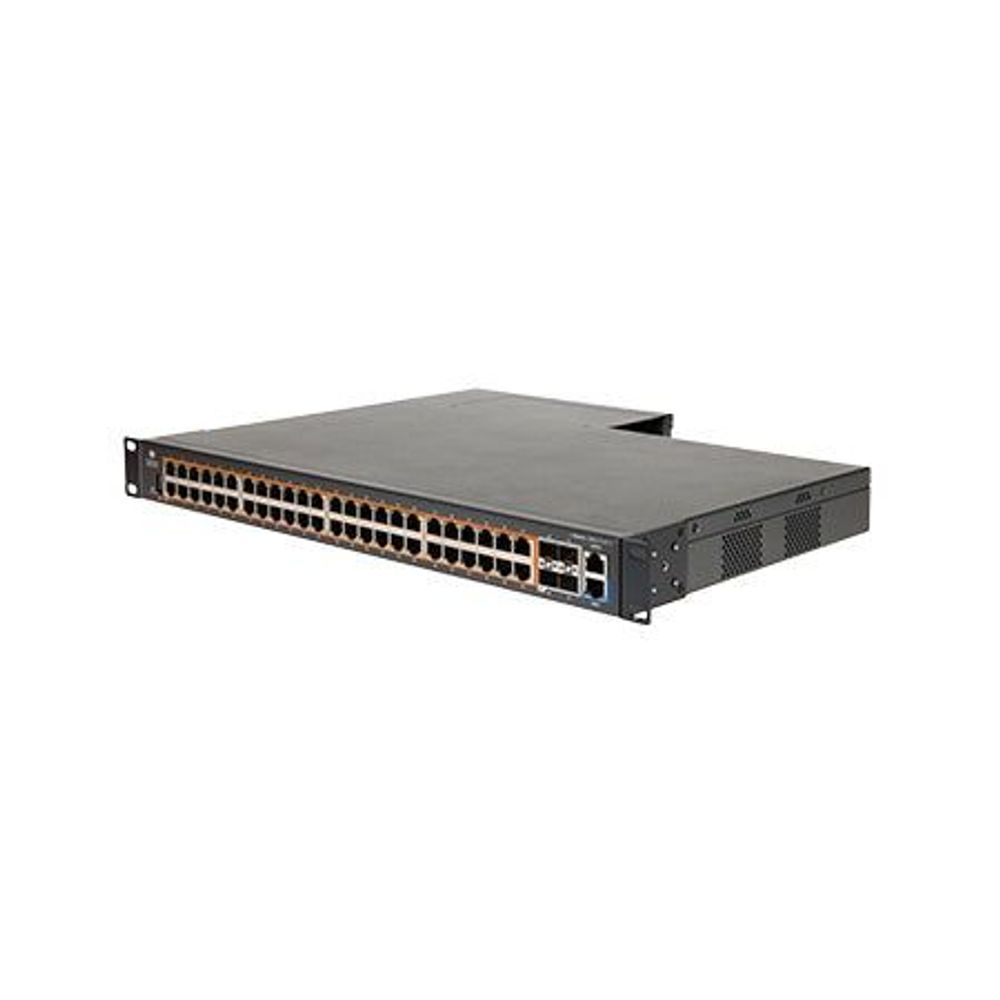

EX2052R-P - Cambium cnMatrix EX2052R-P 52-Port Enterprise Cloud Managed PoE Switch with CRPS Support
EX2052R-P - Cambium cnMatrix EX2052R-P 52-Port Enterprise Cloud Managed PoE Switch with CRPS Support
SKU:EX2052R-P
Regular price
$3,555.00 NZD
Regular price
Sale price
$3,555.00 NZD
Unit price
/
per
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Couldn't load pickup availability
Cambium cnMatrix EX2052R-P Cloud Managed Intelligent Power over Ethernet Switch with 48 x 1G, PoE+ (802.3af/at) Enabled ports and 4 x SFP+ fiber ports. Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports.
Note the EX2052R-P supports Common Removeable Power Supplies (CRPS), which are sold separately. No power supply is included with this switch.
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports.
Note the EX2052R-P supports Common Removeable Power Supplies (CRPS), which are sold separately. No power supply is included with this switch.
Features
- Supports Common Removeable Power Supplies (CRPS), sold separately
- Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS*
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
- Non-blocking, line-rate architecture with fully featured L2/L3 switching
- Limited lifetime warranty (5 Years)
| Details | |
|---|---|
| Manufacturers Product code | MXEX2052GXPA10 |
| Non-Blocking Throughput | 176Gbps |
| PoE+ (802.3af/at) Enabled Ports | 48 |
| PoE Power Budget | CRSP Dependent |
| Gigabit Ethernet Ports | 48 |
| Uplink Ports | 4 SFP+ |
| Serial Console Port | 1 RJ45 |
| USB | 1 |
| OOB Management Port | 1 |
| Internal Fans | 2 |
| Power Supply | CRPS (Sold Separately) |
| LEDs Per Port | Link/activity POE |
| Rack Mountable | Yes 1U |
| Rack Mount Kit | Included |
| Temperature Range | -0°C to +50°C |
| Operating Humidity | +55° at 95% RH |
| Storage Temperature | -40°C to +70°C |
| Weight | 4.3 kg or 5.2 kg |
| Dimensions | 44 x 4.4 x 35cm |
| Details | |
|---|---|
| Power Supply | CRPS Modules Sold Separately |
| Mounting Hardware | 1U Rackmount Kit Included |
