FSHFEM3500DM - 560Kg double magnetic lock - Monitored

FSHFEM3500DM - 560Kg double magnetic lock - Monitored

FSHFEM3500DM

$537.50 NZD
$1,208.21 NZD $537.50 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

1000 in stock

560Kg double magnetic lock - Monitored

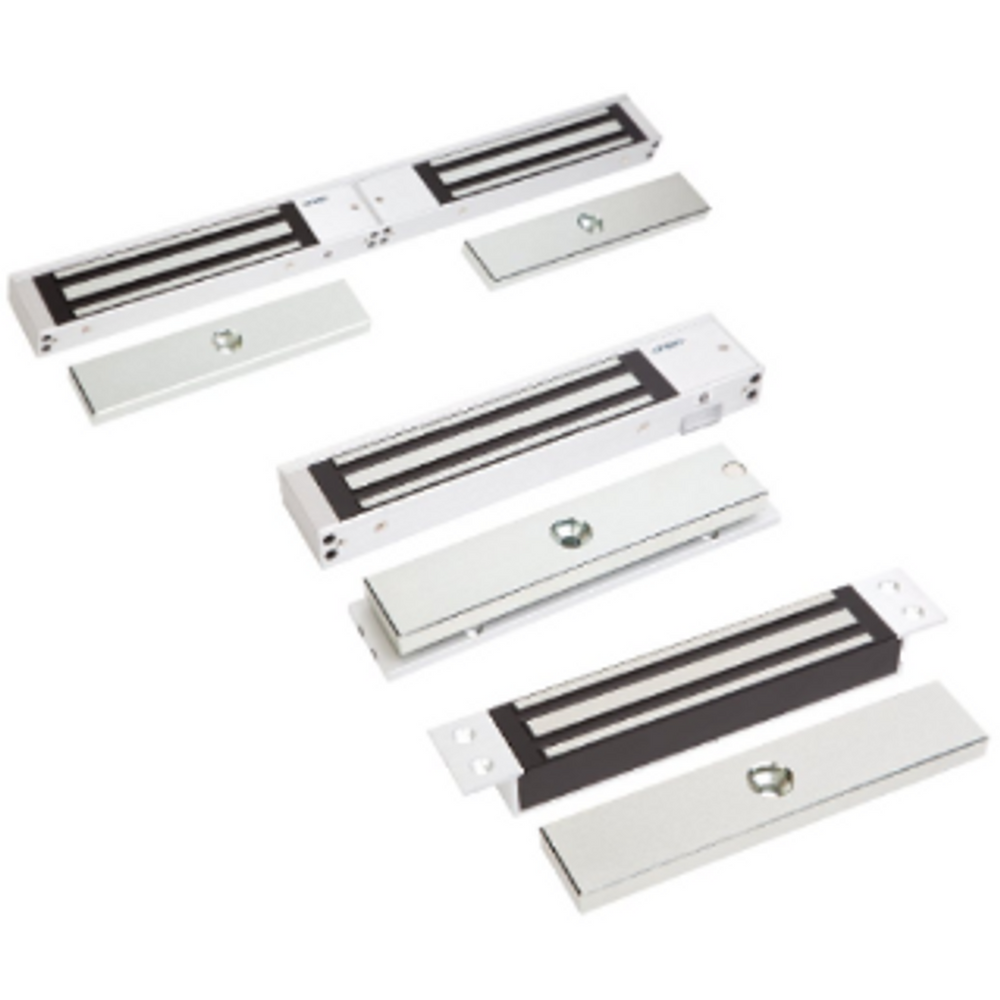

The FEM3500 is an unmonitored single magnetic lock and FEM3500D is an unmonitored double magnetic lock with dual 12 or 24 Volt settings.

The FEM3500M is a monitored single magnetic lock and the FEM3500DM is a monitored double magnetic lock both with 12 or 24 Volt settings. Each monitored magnetic lock has a built-in Hall Effect Sensor for remote monitoring of Lock status (LSS). The devices have a highly visible high luminosity Light Panel and a Door Status Sensor (DSS) for remote monitoring of the door status as well as Lock Status Sensor (LSS). The monitored devices come with a patented Anti-Tamper-Security-Plate as standard to prevent hostile attacks on the dome-nut-fixing bolt of the Armature Plate.

All FEM3500 Series Electro Magnetic Locks come with a lifetime warranty and have no residual magnetism.



PART No.

FEM3500 (Single) FEM3500M (Single) FEM3500FM (Flush Mounted)

FEM3500D (Double) FEM3500DM (Double)
Holding strength Up to 280kg
Voltage/Current Dual Voltage 12/24VDC 12VDC/500mA (Double x2) 24VDC/250mA (Double x2)
Size


Single door series magnet size: Double door series surface magnet size:

L = 238 x W = 48 x D = 25mm L = 477 x W = 48 x D = 25mm

Single door series armature plate size: Double door series armature plate size:

L = 185 x W = 38 x D = 12mm L = 185 x W = 38 X D = 12mm x 2 pcs

Single door series DSS-armature plate size: Double door series DSS-armature plate size:

L = 185 x W = 38 x D = 12mm L = 185 x W = 38 x D = 12mm x 2pcs
