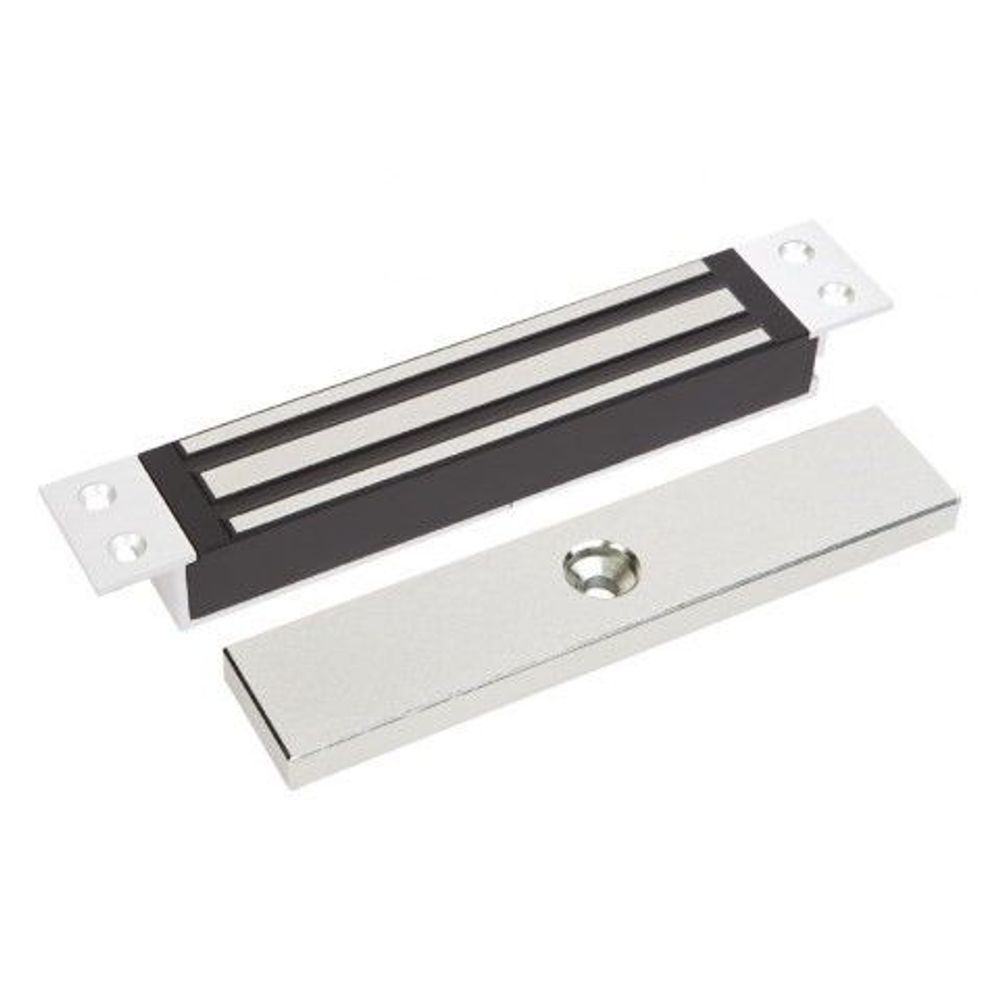

280Kg single flush mount magnetic lock

FSH FEM3500 Series

FSH FEM3500 Series

Application  Commercial

Description

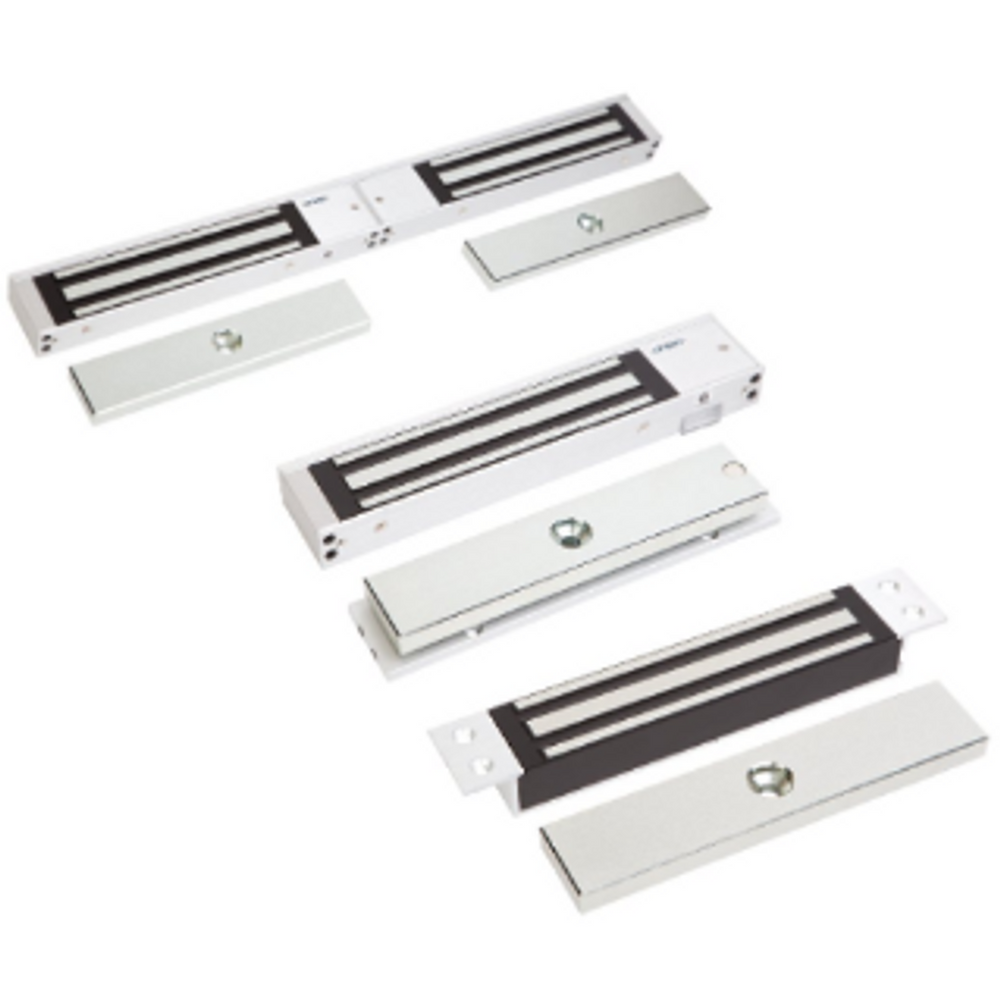

The FEM3500 is an unmonitored single magnetic lock and FEM3500D is an unmonitored double magnetic lock with dual 12 or 24 Volt settings.

The FEM3500M is a monitored single magnetic lock and the FEM3500DM is a monitored double magnetic lock both with 12 or 24 Volt settings. Each monitored magnetic lock has a built-in Hall Effect Sensor for remote monitoring of Lock status (LSS). The devices have a highly visible high luminosity Light Panel and a Door Status Sensor (DSS) for remote monitoring of the door status as well as Lock Status Sensor (LSS). The monitored devices come with a patented Anti-Tamper-Security-Plate as standard to prevent hostile attacks on the dome-nut-fixing bolt of the Armature Plate.

All FEM3500 Series Electro Magnetic Locks come with a lifetime warranty and have no residual magnetism.



Warranty

Mechanical - Lifetime warranty

Electronic - 1 year





PART No.

    FEM3500 (Single)                                                        FEM3500M (Single)                 FEM3500FM (Flush Mounted)

    FEM3500D (Double)                                                    FEM3500DM (Double)
Holding strength      Up to 280kg
Voltage/Current     Dual Voltage 12/24VDC 12VDC/500mA (Double x2) 24VDC/250mA (Double x2)
Size


    Single door series magnet size:                               Double door series surface magnet size:

    L = 238 x W = 48 x D = 25mm                                   L = 477 x W = 48 x D = 25mm

    Single door series armature plate size:                   Double door series armature plate size:

    L = 185 x W = 38 x D = 12mm                                   L = 185 x W = 38 X D = 12mm x 2 pcs

    Single door series DSS-armature plate size:          Double door series DSS-armature plate size:

    L = 185 x W = 38 x D = 12mm                                   L = 185 x W = 38 x D = 12mm x 2pcs
