FSH
FSHFEM3500M - 280Kg single magnetic lock - Monitored
FSHFEM3500M - 280Kg single magnetic lock - Monitored
SKU:FSHFEM3500M
* All prices exclude GST & Freight, Calculated at checkout - supply only*
1000 in stock
Couldn't load pickup availability

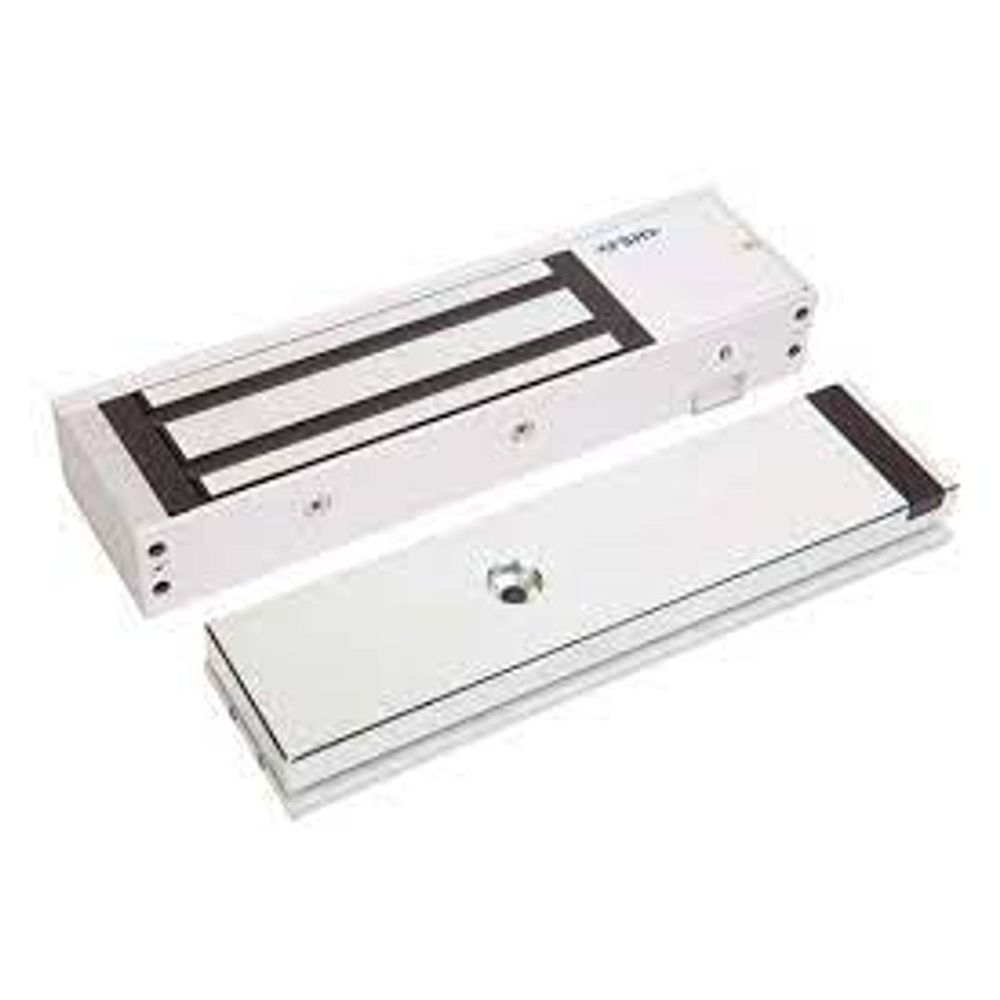

280Kg single magnetic lock - Monitored
Description
The FEM3500 is an unmonitored single magnetic lock and FEM3500D is an unmonitored double magnetic lock with dual 12 or 24 Volt settings.
The FEM3500M is a monitored single magnetic lock and the FEM3500DM is a monitored double magnetic lock both with 12 or 24 Volt settings. Each monitored magnetic lock has a built-in Hall Effect Sensor for remote monitoring of Lock status (LSS). The devices have a highly visible high luminosity Light Panel and a Door Status Sensor (DSS) for remote monitoring of the door status as well as Lock Status Sensor (LSS). The monitored devices come with a patented Anti-Tamper-Security-Plate as standard to prevent hostile attacks on the dome-nut-fixing bolt of the Armature Plate.
All FEM3500 Series Electro Magnetic Locks come with a lifetime warranty and have no residual magnetism.
Â
Warranty
Mechanical - Lifetime warranty
Electronic - 1 yearÂ
| Â No. |
  FEM3500 (Single)                             FEM3500M (Single)         FEM3500FM (Flush Mounted)   FEM3500D (Double)                           FEM3500DM (Double) |
| Holding strength |   Up to 280kg |
| Voltage/Current | Â Â Dual Voltage 12/24VDC 12VDC/500mA (Double x2) 24VDC/250mA (Double x2) |
| Size |
    L = 238 x W = 48 x D = 25mm                  L = 477 x W = 48 x D = 25mm   Single door series armature plate size:          Double door series armature plate size:   L = 185 x W = 38 x D = 12mm                  L = 185 x W = 38 X D = 12mm x 2 pcs   Single door series DSS-armature plate size:      Double door series DSS-armature plate size:   L = 185 x W = 38 x D = 12mm                  L = 185 x W = 38 x D = 12mm x 2pcs |
