FSHFEM4700FS-LSS - 380Kg single magnetic lock - Weather resistant - Monitored
FSHFEM4700FS-LSS - 380Kg single magnetic lock - Weather resistant - Monitored
SKU:FSHFEM4700FS-LSS
* All prices exclude GST & Freight, Calculated at checkout - supply only*
1000 in stock
380Kg single magnetic lock - Weather resistant - Monitored
Description

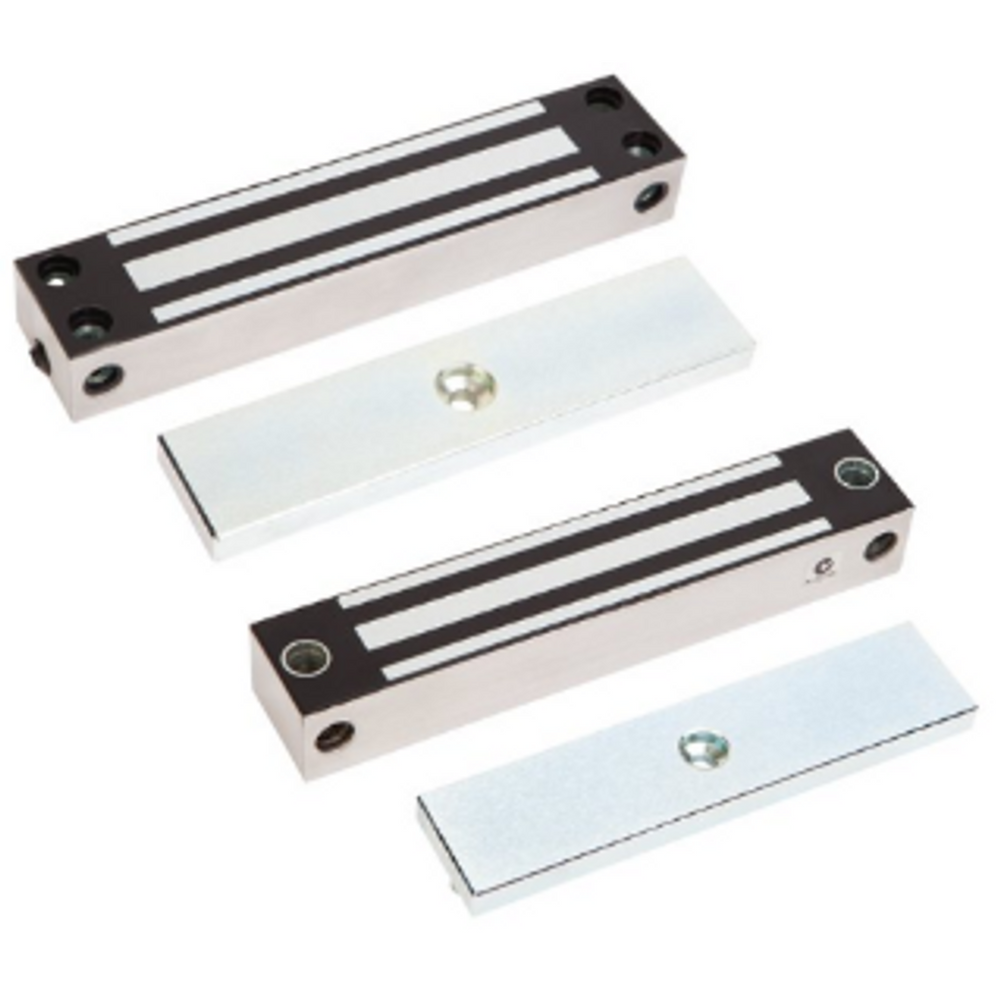

The Electro Magnetic Mini Gate Lock FEM4700FS-LSS has a holding force of up to 380kg and the Electro Magnetic Micro Gate Lock FEM4500FS-RSW has a holding force of up to 200kg.
Both products are IP67 weather resistant with stainless steel body housings. The devices provide a dual fixing arrangement, a built-in varistor surge protection and accept both 12 and 24VDC.
The Electro Magnetic Gate Locks also provide the monitoring feature “Lock Status Sensor” (LSS). The Electro Magnetic Gate Locks come with a lifetime warranty.
Warranty
Mechanical - Lifetime warranty
Electronic - 1 year
PART No. | FEM4700FS-LSS FEM4500FS-RSW |
Holding strength |
Up to 380kg Up to 200kg
|
Voltage/Current |
Dual voltage 12/24VDC Dual Voltage 12/24VDC 12VDC/400mA 24VDC/200mA 12VDC = 360mA 24VDC = 180mA |
Size |
L = 220 x W = 47 x D = 30.5mm L = 162 x W = 26 x D = 31mm Armature plate size: Armature plate size L = 185 x W = 42 x D = 12mm L = 130 x W = 30 X D = 8.7mm |
