FSHFEM5000G - 630Kg single magnetic lock - Weather resistant

FSHFEM5000G - 630Kg single magnetic lock - Weather resistant

FSHFEM5000G

$512.50 NZD
$1,208.21 NZD $512.50 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

1000 in stock

630Kg single magnetic lock - Weather resistant

Description

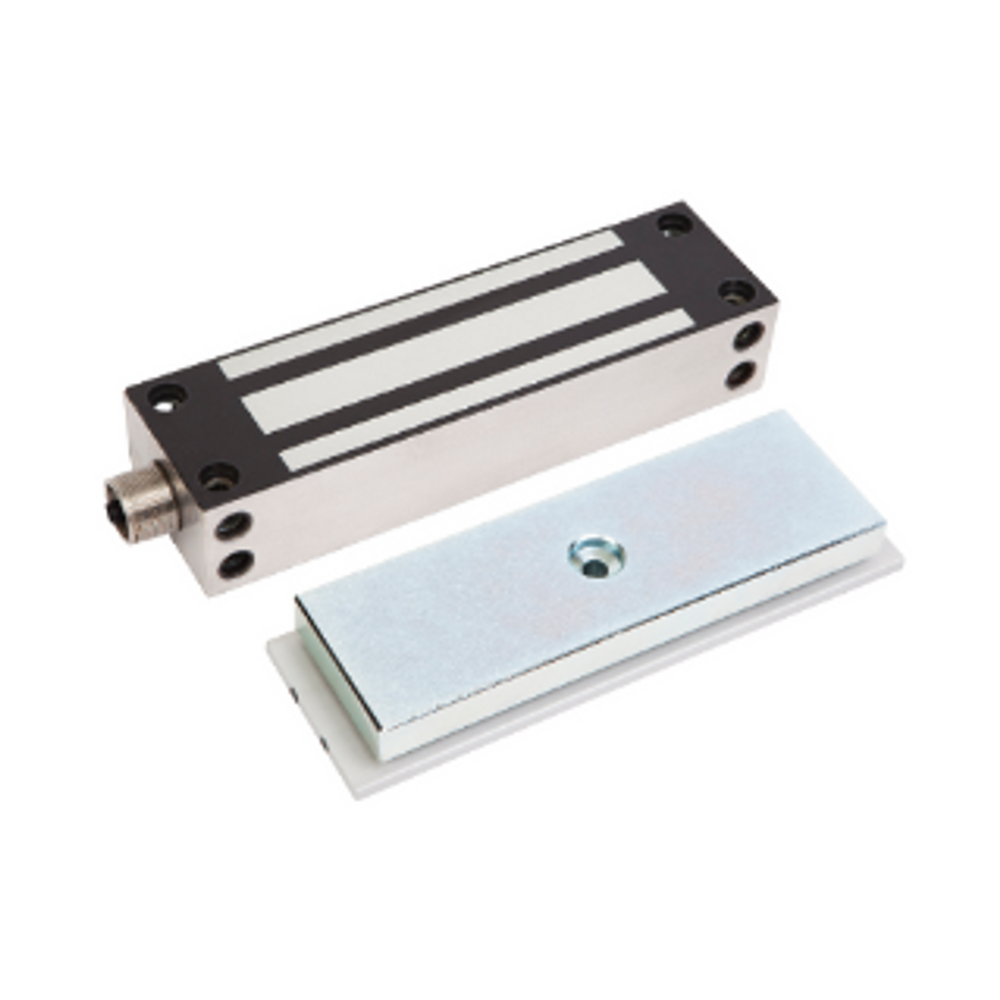

The Electro Magnetic Gate Lock FEM5000G has a holding force of up to 630kg and is IP67 weather resistant with a stainless steel body housing. The device provides a dual fixing arrangement, a built-in varistor surge protection and accepts both 12 and 24VDC.

The Electro Magnetic Gate Lock also provides the monitoring feature “Lock Status Sensor” by Hall-Effect (LSS). The Electro Magnetic Gate Lock comes with a lifetime warranty and is supplied with an Anti-Tamper-Plate as standard to prevent hostile attacks on the dome-nut-fixing bolt of the Armature Plate.



Holding strength      Up to 630kg
Voltage/Current

    Dual voltage 12/24VDC

    12VDC = 480mA

    24VDC = 240mA
Size

    Magnet size: L = 220 x W = 63 x D 45mm

    Armature plate size: L = 190 x W = 61 x D = 16mm
