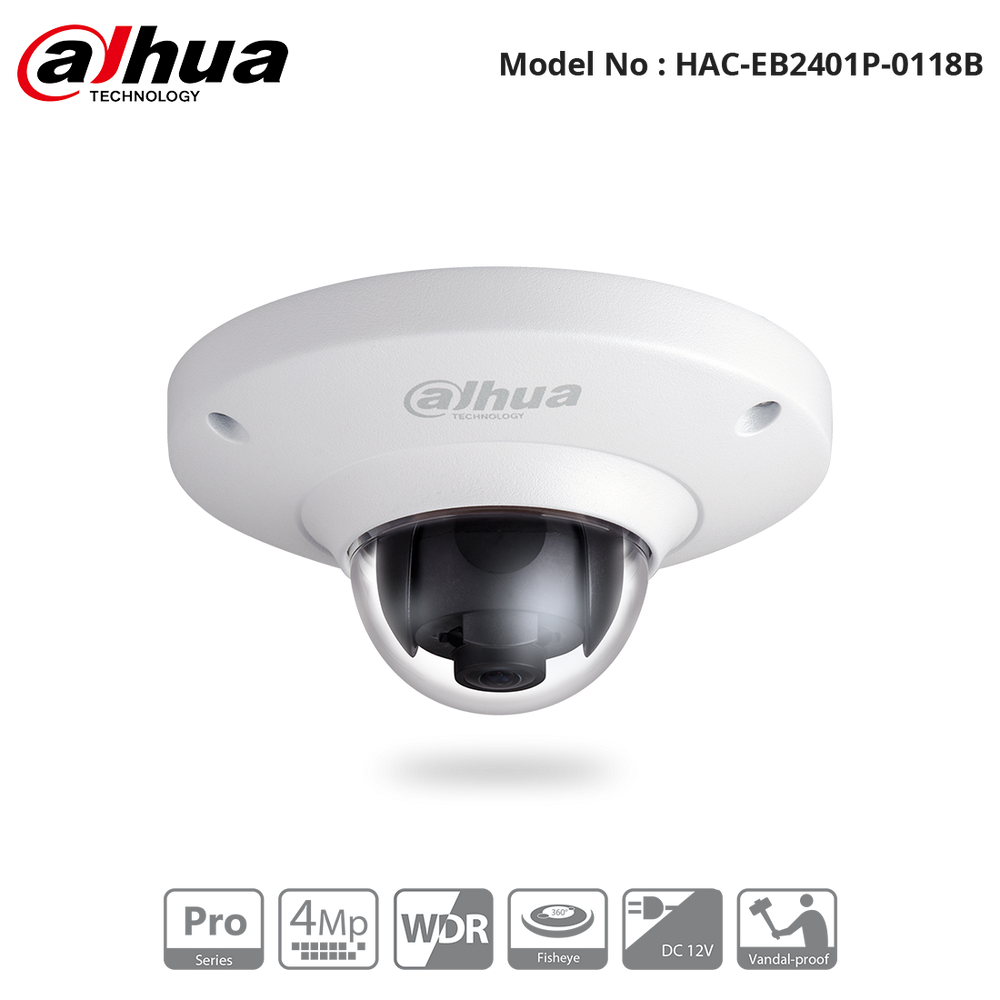

HAC-EB2401P-0118B - Dahua - 4MP HDCVI WDR Fisheye Camera
HAC-EB2401P-0118B - Dahua - 4MP HDCVI WDR Fisheye Camera
SKU:DH-HAC-EB2401P-0118B
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock: 4 left
Features
Includes
- 120dB True WDR, 3DNR
- Max 4MP real-time
- HD and SD dual-output
- 1.18mm panoramic lens
- IK10, DC12V
Specs
Model - HAC-EB2401P-0118B
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Image Sensor |
1/3" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels |
2688(H)x1520(V), 4.1MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
PAL:1/4s~1/100,000s NTSC:1/3s~1/100,000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Illumination |
0.01Lux/F2.0 (Color), 0.001lux/F2.0(B/W), 30IRE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
More than 65dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Distance |
NA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR On/Off Control |
NA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR LEDs |
NA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed lens / Fixed iris |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
1.18mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Aperture |
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View |
H: 180 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
100mm 3.94'' |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan / Tilt / Rotation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation |
Pan: NA Tilt: NA Rotation: NA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
4MP (2560x1440) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
25fps@4MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto (Electronic) / Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OSD Menu |
Multi-language |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC Mode |
BLC / HLC / WDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
AGC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
2D/3D |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto / Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart IR |
NA |
DORI Distance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Definition |
Distance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detect |
25px/m (8px/ft) |
24m(77ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Observe |
63px/m (19px/ft) |
9m(31ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recognize |
125px/m (38px/ft) |
5m(15ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Identify |
250px/m (76px/ft) |
2m(8ft) |
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Certifications |
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12V DCÂ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Max 2.2W (12V DC) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
-30C ~ +60C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Conditions |
-30C ~ +60CÂ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection & Vandal Resistance |
IK10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Aluminium |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
110mmx56mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.41kg (0.9lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.45kg (0.99lb) |
