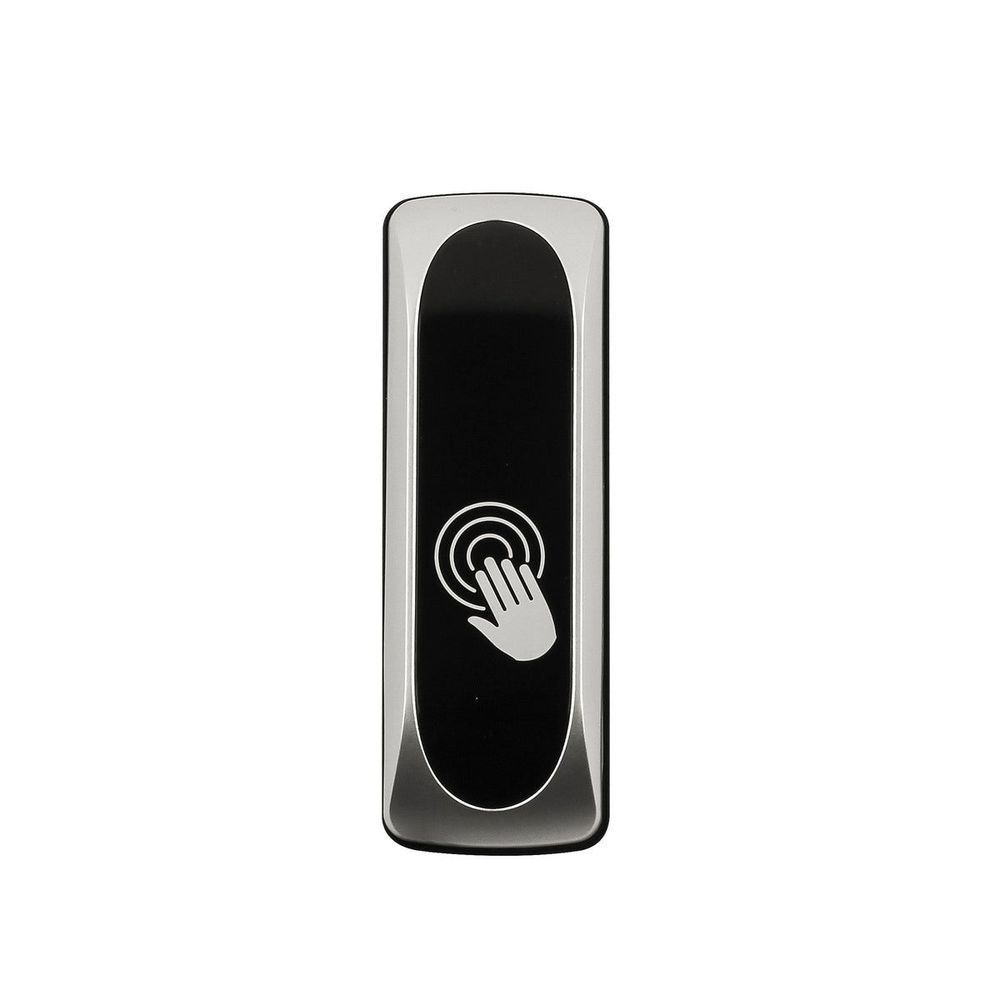

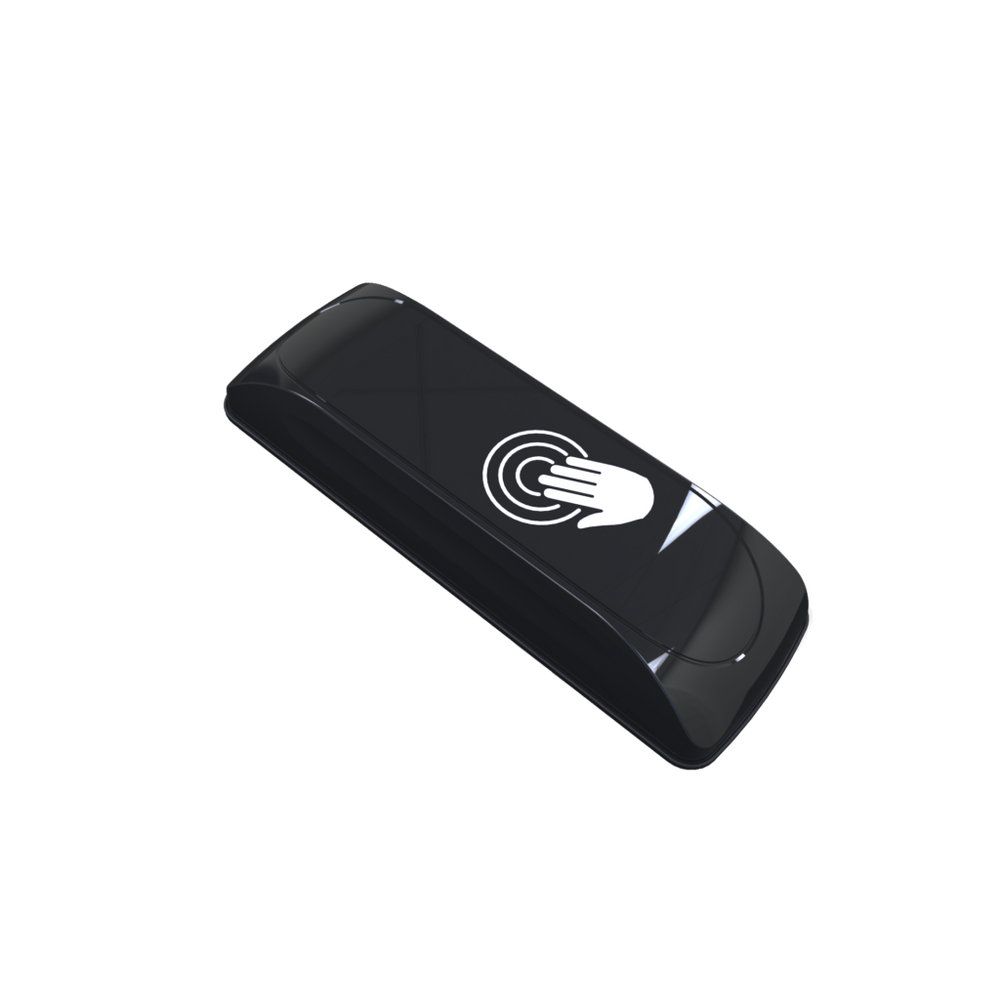

Hotron J Wave - Automatic Touchless Door Activation Switch

J Wave - Automatic Touchless Door Activation Switch. Narrow style

Narrow profile, hygienic, non-touch automatic door activation switch.

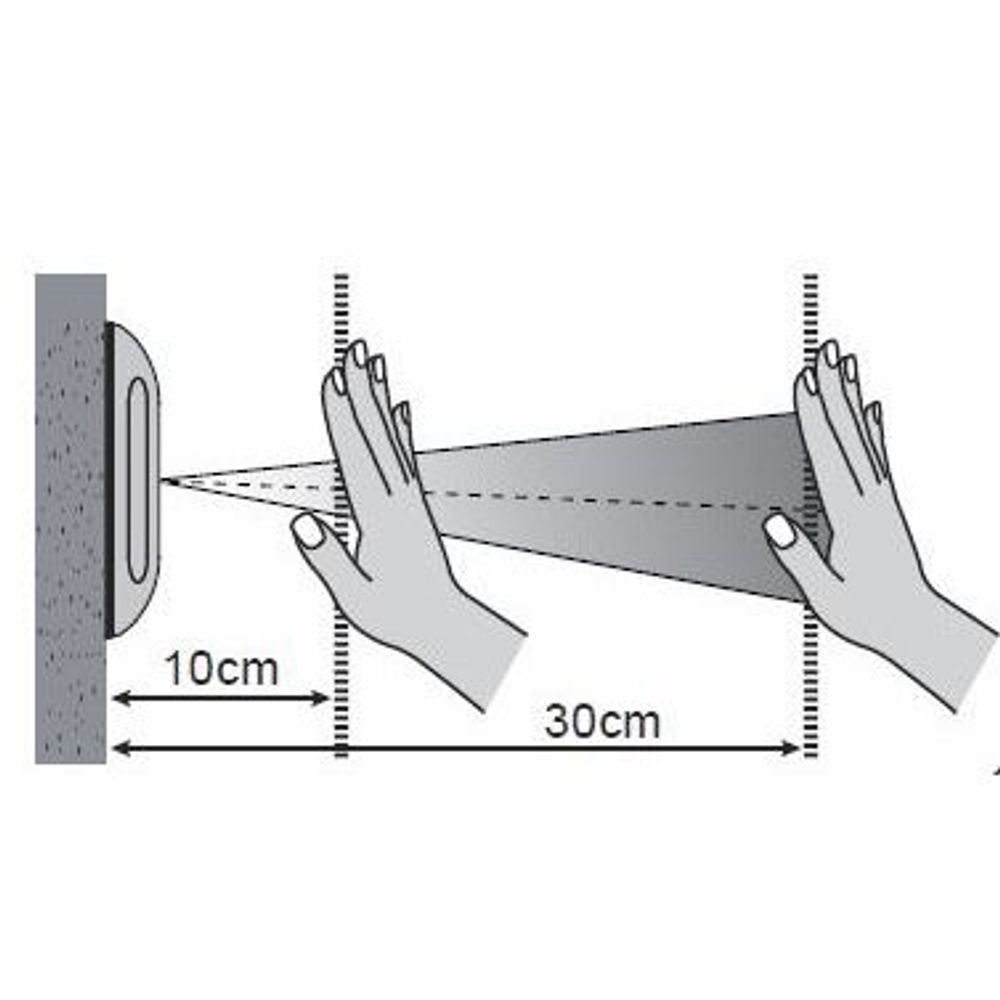

Detection range from 10-30 cm with an Illuminated faceplate.

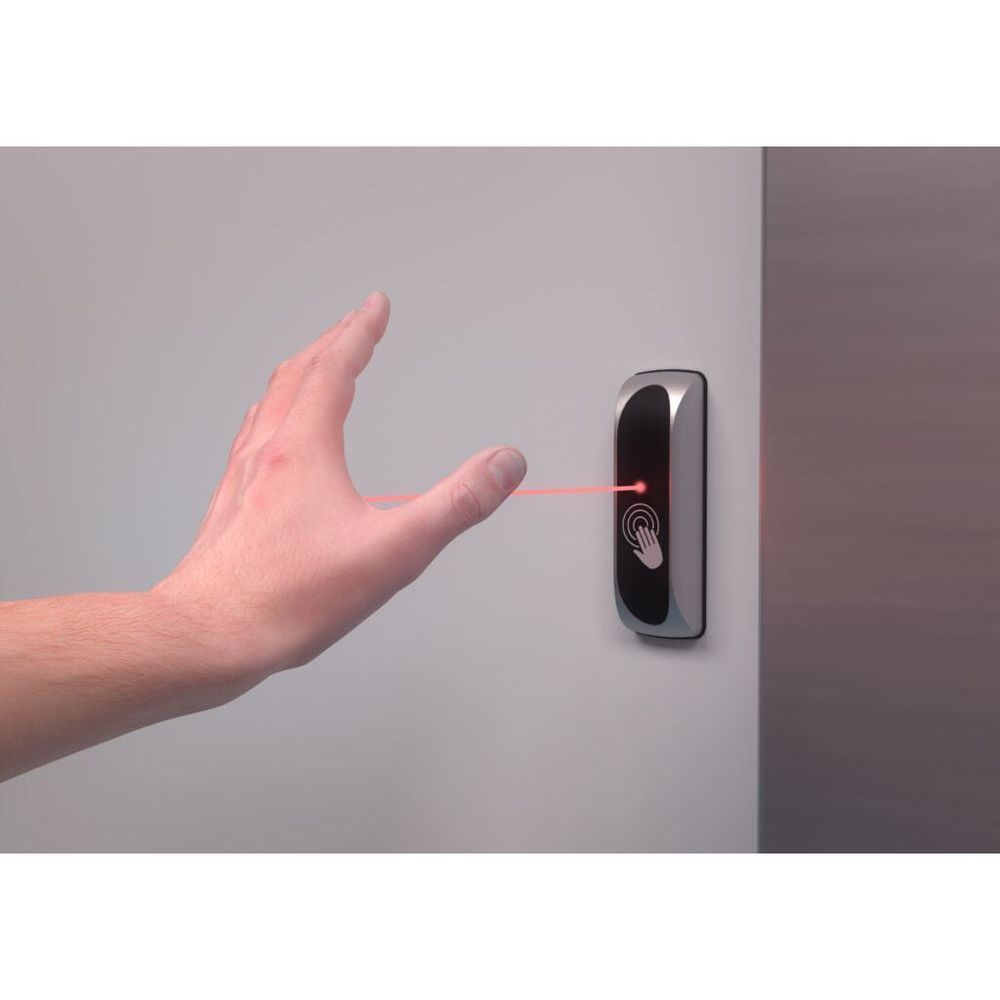

Infrared technology

• Prevent the Spread of Germs

  • Touchless design to reduce the spread of germs and improve accessibility in healthcare, retail and commercial settings.

• Tough and Illuminated

  • Made from a tough, polycarbonate material with a constantly illuminated LED to assist location in dimly lit environments.

• Slim Design

  • Low profile design facilitates a tidy installation on door frames or guiderails.

• Fast Reaction Time

  • Detection range of up to 30cm with the ability to detect very fast hand movements.

Specs

• ModelJ-Wave: Door Activation Switch
• Detection MethodActive Infrared Detection
• Detection Range10-30cm
• Sensor Dimensions40mm ˣ 117mm ˣ 19.5mm (W ˣ L ˣ H)
• IP RatingIP54
• Power SupplyDC12-30V, AC12-24V
• Power Consumption40mA (DC24V)
• Operating Temperature-20℃ - +50℃ / 0~90%
• Weight50g
