iSecure CP1216-32A-4K 12VDC 32A Wall-Mount Power Supply Distribution Panel with
iSecure CP1216-32A-4K 12VDC 32A Wall-Mount Power Supply Distribution Panel with
SKU:CP1216-32A-4K
Regular price
$257.14 NZD
Regular price
Sale price
$257.14 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*

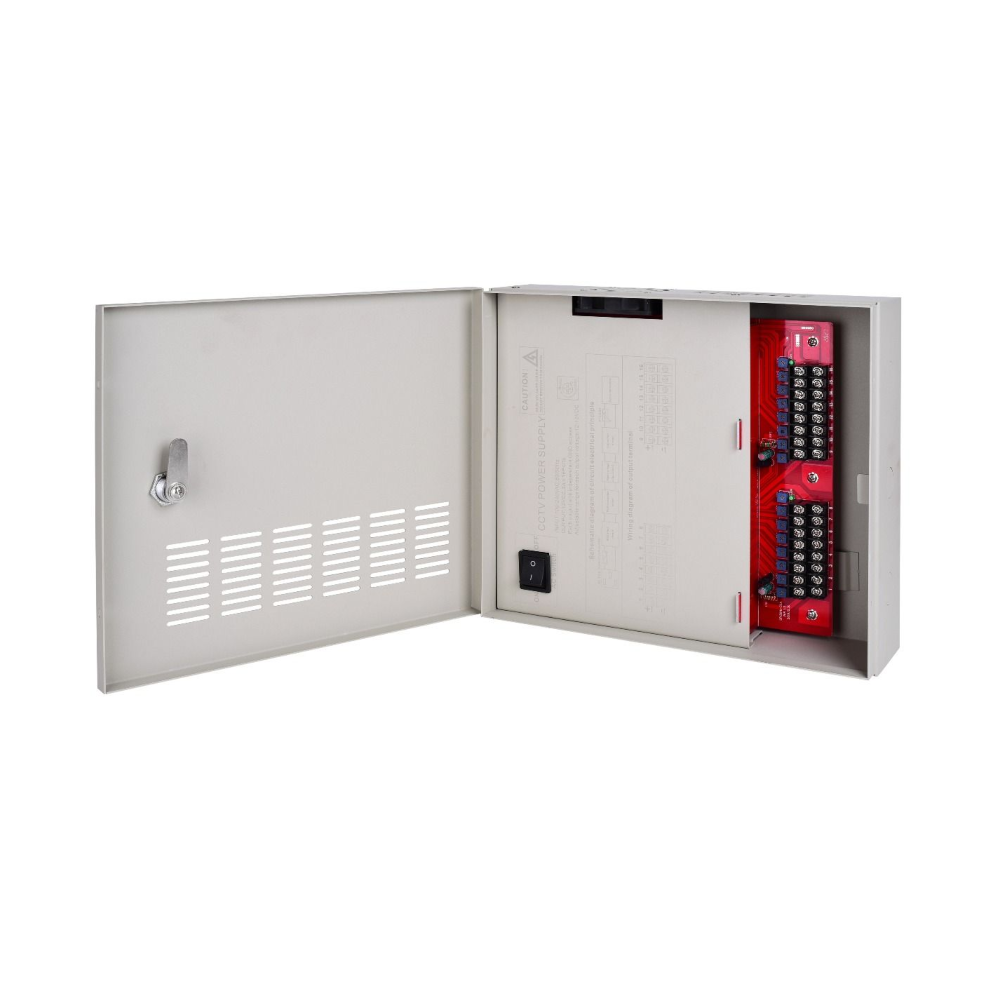

iSecure CP1216-32A-4K 12VDC 32A Wall-Mount Power Supply Distribution Panel with 16x PTC Fused Outputs – Suitable for 4K HDCVI/HDTVI/AHD Camera Power Distribution
iSecure CP1216-32A-4K 12VDC 32A Wall-Mount Power Supply Distribution Panel with 16x PTC Fused Outputs – Suitable for 4K HDCVI/HDTVI/AHD Camera Power Distribution
Features :-
- Input Voltage 100V – 240V
- Channels 16
- Inrush Current ? 50A
- DC Output voltage range 12V – 15V
- DC Output Current 32A
- Output Ripple and Noise ? 200mVpp
- Overshoot at turn-on/off ? 110%
- Over Voltage Protection 16V
- Input Frequency 50/60Hz
- Fuse Type PTC 2.6A (Resettable)
- Unit size 260 × 201 × 86.8 mm
- Unit weight 2.15Kg (4.8LB)
- Gift box 305 × 240 × 125 mm
- Operating Temperature 0 ~ 40°C / Less than 85% RH (Non-condensing)
- Storage Temperature -20 ~ 75°C / Less than 90% RH (Non-condensing)
