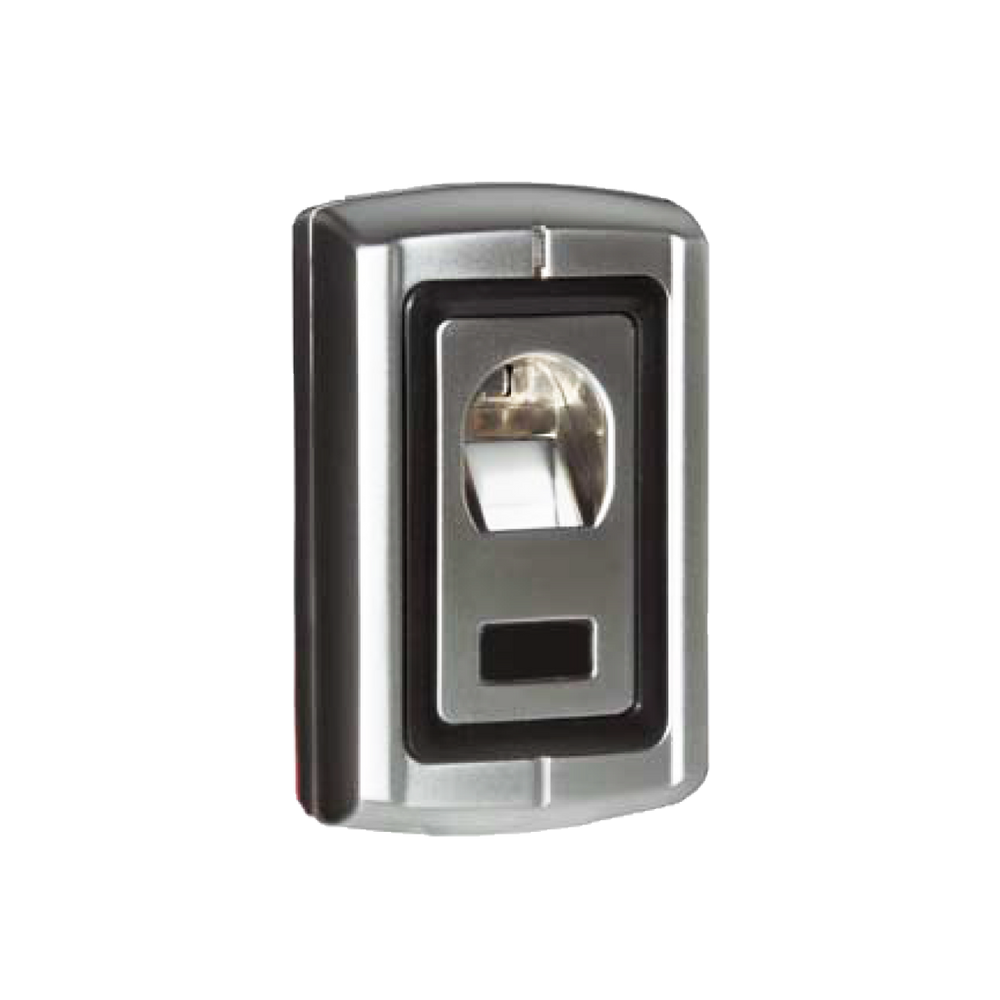

F007-II -Sebury - Standalone Biometric & RFID Reader

Features

Includes:

• Support Fingerprint, support EM card
• 160 fingerprints, 2,000 cards
• Wiegand output, Wiegand input
• Can be connected to other controllers as its slave reader
• Wiegand interface: Wiegand 26
• Remote control/Master card for programming
• Metal Vandal Shell
• Dimensions 115x70 x 35mm
• Weight 500g

Specs

Technical parameters:
Type: Sebury F007EM-II
Design: tin-coated steel, durable, anti-vandal
Use: indoor and outdoor (IP 53)
Input voltage: 12 V DC ± 10 %
Relay load: 12 V / 2 A
Current consumption: ? 20 mA (in standby), ? 80 mA (working)
Number of users: fingerprints 1 000, RFID cards 2 000
RFID cards type: EM 125 kHz
Card scanning distance: 3 - 6 cm
Operational temperature: - 20°C ~ +50°C
Operational humidity: 20 – 95 % (non-condensing)
Finger scanner resolution: 450 DPI
Time of reading the fingerprint/identification: < 1 s
Time of relay activation: 1 – 99 seconds
Alarm setting: 0 – 3 minutes
Dimensions (w x h x d): 115 x 70 x 35 mm
Weight 500 g
