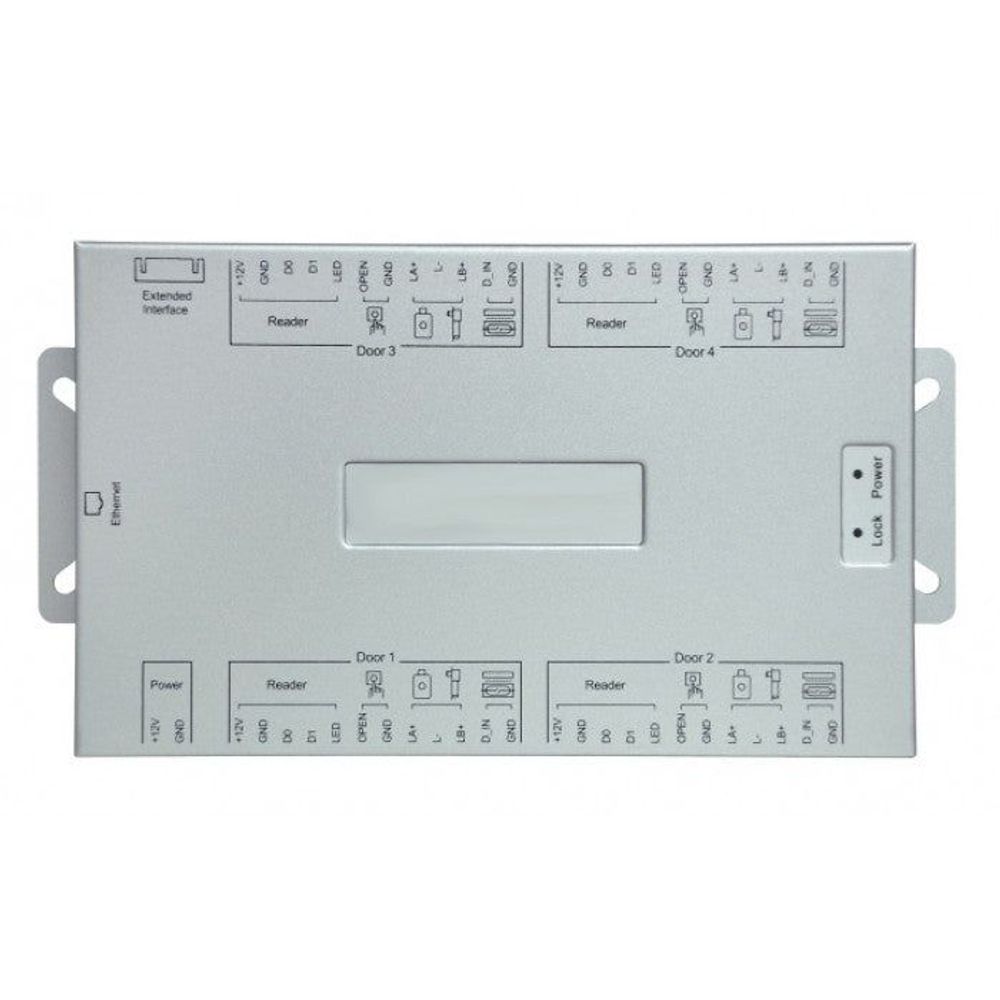

Sebury ‐4DOOR - Network Based Access Control Panels

User capacity: 20,000 pcs
· Event log: 100,000pcs (can be saved on controller permanently)
· Way of opening door: card; card + PIN; multi-cards; first card etc.
· Communication standard: TCP/IP
· Language of Software kit: Chinese & English
· Support database: Access and SQL
· Requirement of power supply: DC 12V/3A
· Idle current: ≤120mA
· Input format of card data from reader: Wiegand 26, 34 bit
· Input format of pressing keypad of reader: 4bit or 8bit (ACII)
· Delay time of opening door: 1-600s optional
· The maximum number of controller connecting in LAN: no limit
· Operating temperature: -40-60℃
· Operating humidity: 10-95%(non - condensing )
· The max distance between reader and controller: 100meter (cable requirement: RVV0.3)
· The max distance between controller and controller: depending on network coverage.
· Dimensions: 201mm×125mm×32mm
