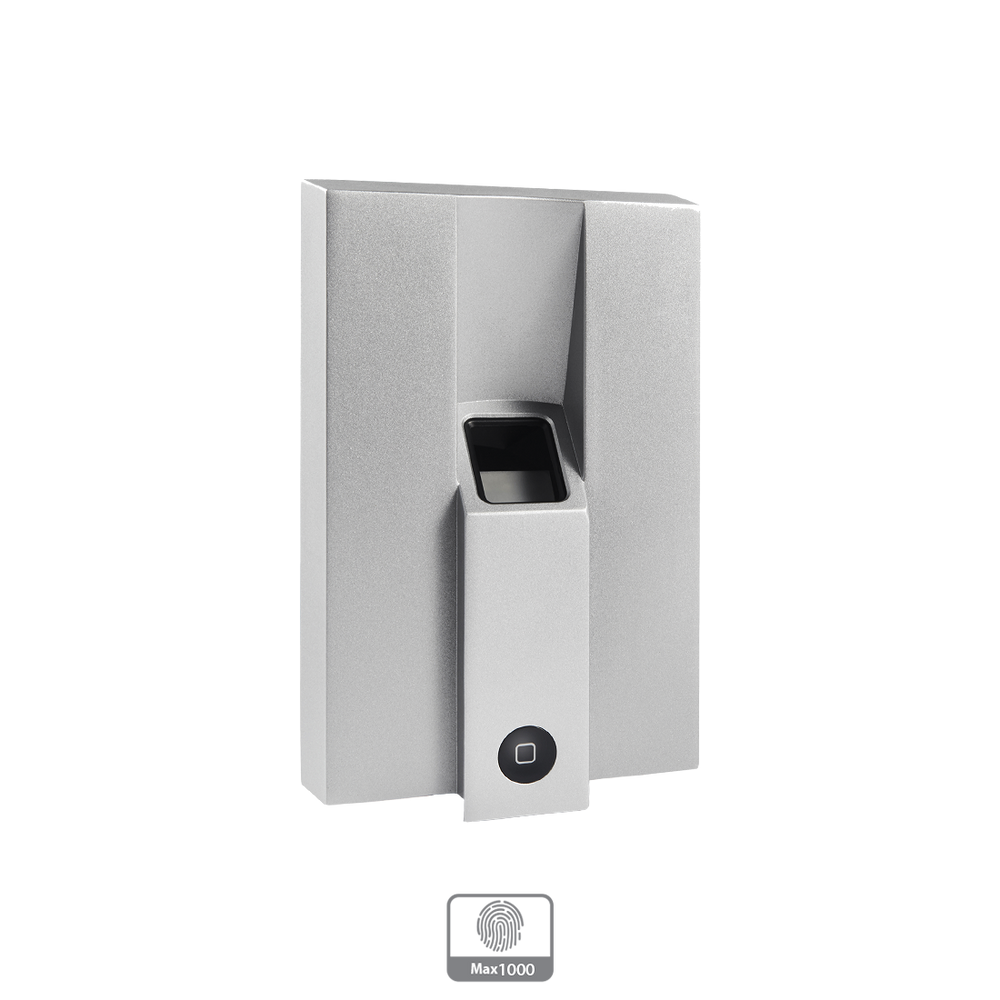

SPRESS‐BIO - Biometric - Standalone Access Controller-Reader

Features

Includes

> Use as Standalone Biometric Access Controller or as a Slave Weigand Reader
> 1000 Fingerprint Capacity
> Eco‐friendly Zinc Alloy Construction
> Anti‐Vandal & Anti‐Tamper
> Easy to install and setup
> Fingerprint Scan time: <1s
> Fingerprint Identification time: <1s
> Power: 12v~24v DC
> Dimension: 120mmx72x25mm

Wiegand 26 Output ‐ Fingerprint can be transformed into ID number. Ideal to connect to most Access Controllers for Biometric Access Control

Specs

Specifications

· Input voltage：DC12～24V
· Idle current：≤10mA
· Active Current：≤80mA
· Resolution：450 DPI
· Fingerprint press time: <1S
· Fingerprint identification time：<1S
· FAR：<0.0000256%
· FRR：<0.0198%
· Output format：Wiegand26
· Dimensions： 120mm×72mm×25mm
· Operating Temperature：-20～50° C

· Operating Humidity：20～95%（non-condensing）
