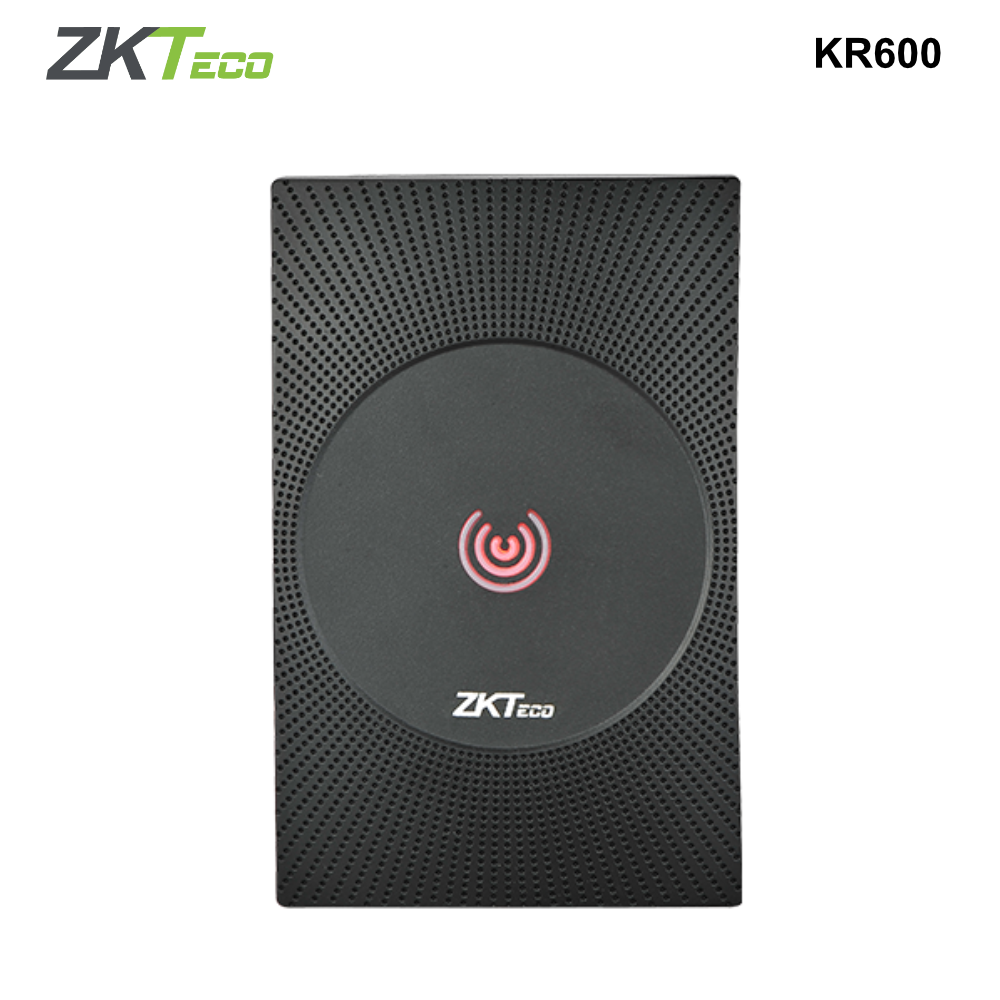

KR600 - ZKTeco Multiformat Prox Card Reader
KR600 - ZKTeco Multiformat Prox Card Reader
SKU:KR600
Regular price
$49.94 NZD
Regular price
Sale price
$49.94 NZD
Unit price
per
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock: 9 left
Couldn't load pickup availability
Features
Includes:
- Wiegand Card Readers
- 125kHz EM or 13.56MHz IC card reader
- Wiegand interface
- Read range of up to 10cm for proximity card and 5cm for IC card
- Waterproof IP65
Specs
|
Read Range |
KRxxx-E: Up to 10CM, KRxxx-M: Up to 5CM |
|
Reading Time |
≤300ms |
|
Input Port |
External LED Control , External Buzzer Control |
|
Output Port |
KRxxx-E: 26bit Wiegand (Default), KRxxx-M: 34bit Wiegand (Default) |
|
Power/Current |
DC 6-14V / Max.70mA |
|
LED |
Red and Green LEDs |
|
Operating Temperature |
-10°C to +65°C |
|
Material |
ABS+PC with texture |
|
Operating Humidity |
10% to 90% relative humidity non-condensing |
|
Beeper |
Yes |
|
Index of Protection |
• KR600-E/M: IP65 • KR601-E/M: IP65 • KR602-E/M: IP64 |
