OneTop

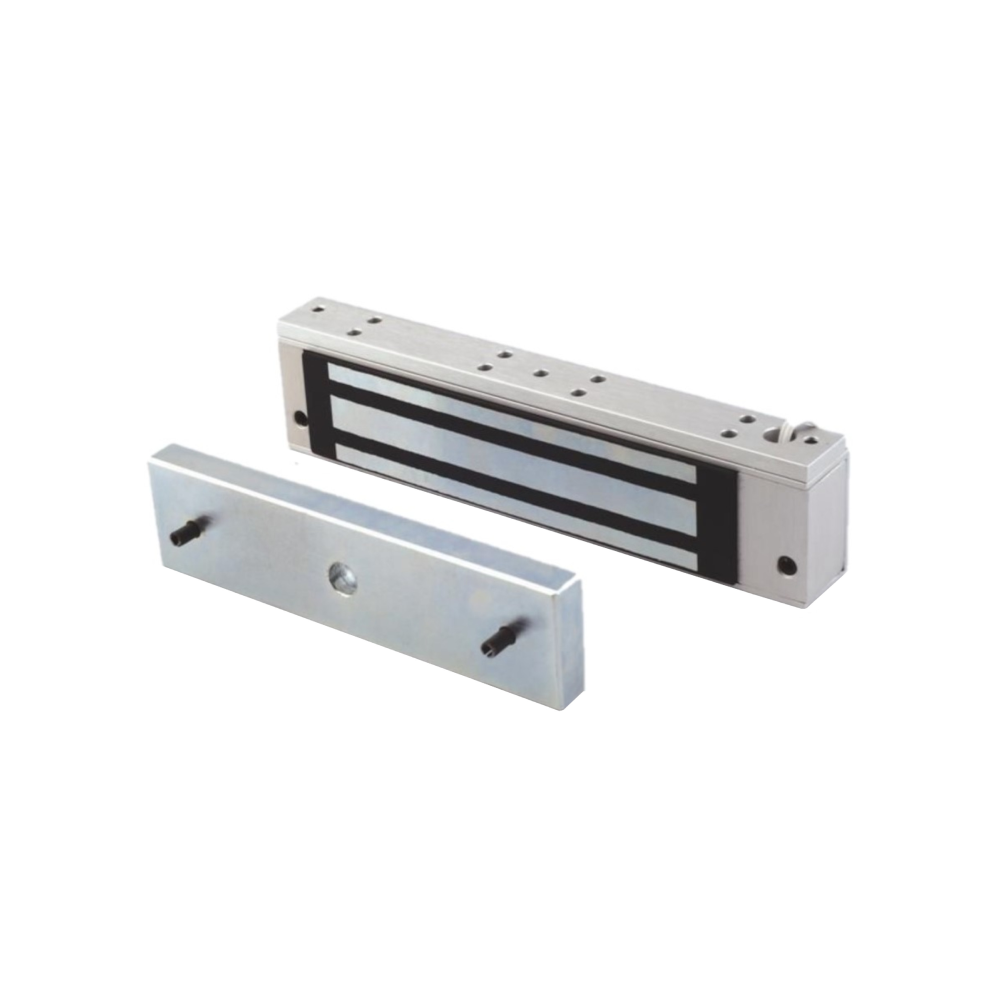

OneTop EM3500 DSS Single Door Surface-Mount Electromagnetic Lock – 12VDC/24VDC P
OneTop EM3500 DSS Single Door Surface-Mount Electromagnetic Lock – 12VDC/24VDC P
SKU:EM3500 DSS
Regular price
$201.14 NZD
Regular price
Sale price
$201.14 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*
OneTop EM3500 DSS Single Door Surface-Mount Electromagnetic Lock – 12VDC/24VDC Powered – 280KGs Pull Force – Anti-Corrosion Plating
OneTop EM3500 DSS Single Door Surface-Mount Electromagnetic Lock – 12VDC/24VDC Powered – 280KGs Pull Force – Anti-Corrosion Plating
Features :-
- Certifications – BS465: Tested under British Standard for 4 hours fire resistance
- Fail Safe – Power to lock
- Lock Body Dimension – EM3500 DSS – 238L x 48W x 25H (mm)
- Armature Plate Dimension – EM3500 DSS – 185L x 38W x 12H (mm)
- Lock Operating Voltage – 12/ 24VDC ±10%
- Lock Operating Current – 530mA /12VDC; 260mA /24VDC
- Lock Holding Force – Up to 250~280Kg
- Weight – EM3500 DSS 2.0Kg
- Output Signals – EM3500 DSS is equipped with LSS & DSS
- Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A
- Door Status Output (DSS) NO/COM, Max 24VDC; Max 0.2A
- Operating Temp -10°C ~60°C
- Operating Humidity 0~95% (non-condensing)
- Light Panel Red/Green/Off indicating the status
- Insecure/Secure/Power Off the magnetic lock
- Surface Finish – Anodized Aluminium housing Zinc plated for anti-corrosion
