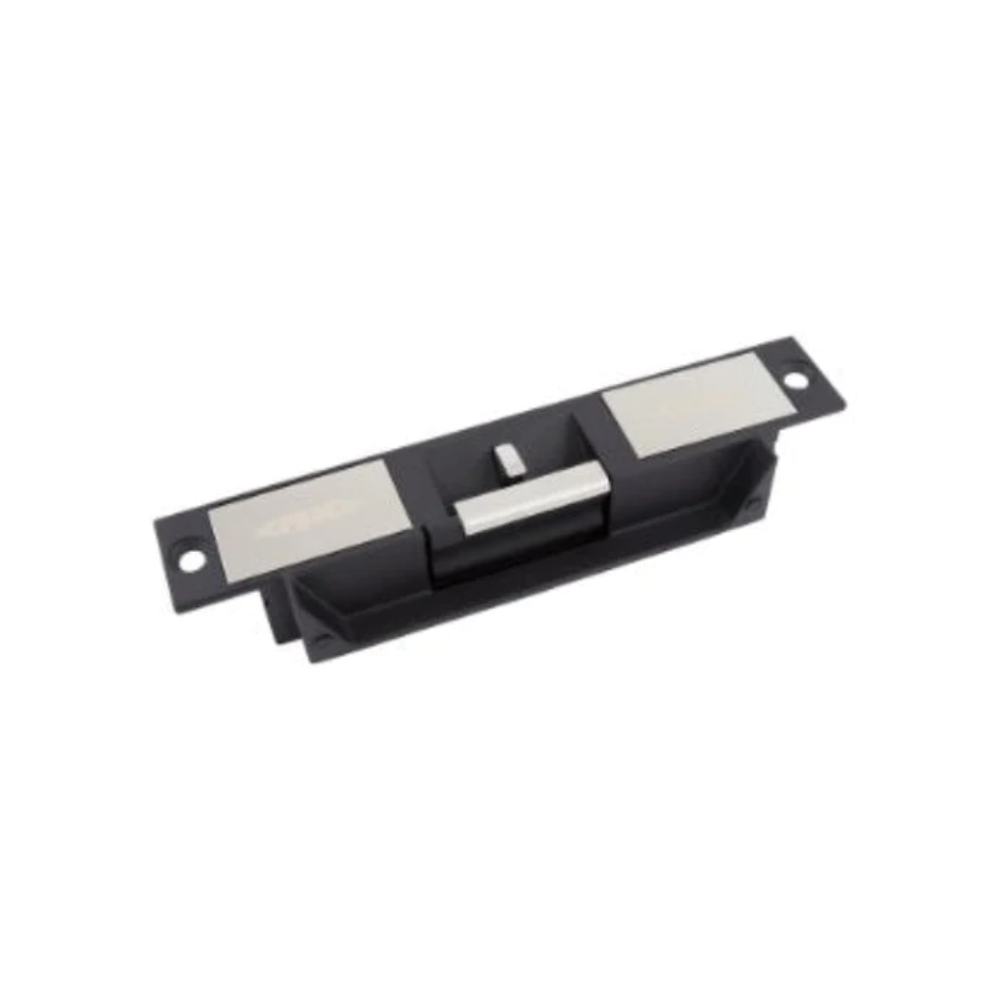

OneTop ES20M Weatherproof Heavy-Duty Electric Strike Lock – Fail-Safe / Fail-Sec
OneTop ES20M Weatherproof Heavy-Duty Electric Strike Lock – Fail-Safe / Fail-Sec
SKU:ES20M
Regular price
$314.29 NZD
Regular price
Sale price
$314.29 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*
OneTop ES20M Weatherproof Heavy-Duty Electric Strike Lock – Fail-Safe / Fail-Secure – Monitoring – 12VDC / 24VDC Powered – Size: 176.0 (L) x 44.5 (W) x 26.5 (H)
OneTop ES20M Weatherproof Heavy-Duty Electric Strike Lock – Fail-Safe / Fail-Secure – Monitoring – 12VDC / 24VDC Powered – Size: 176.0 (L) x 44.5 (W) x 26.5 (H)
Features :-
- Certifications – ROHS, CE, Intertek. BS EN1634-1: 2024 Fire rated 4 hours
- Fail Safe / Fail Secure – Can be manually switched between PTO and PTL
- Lock Dimension – 176.0L x 44.5W x 26.5H (mm)
- Lock Operating Voltage -12/24VDC +/- 10%
- Lock Operating Current – 12VDC 220mA, 24VDC 120mA
- Output Signals – see specification sheet
- Lock Holding Force – 850Kg
- Impact Force – 160J
- Weight – 0.6Kg
- Surface Finish – Stainless Steel Body
