PFM376-C - Dahua Mounting Bracket of Solar Panel

PFM376-C - Dahua Mounting Bracket of Solar Panel

PFM376-C-c

$199.00 NZD
$399.00 NZD $199.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock: 5 left

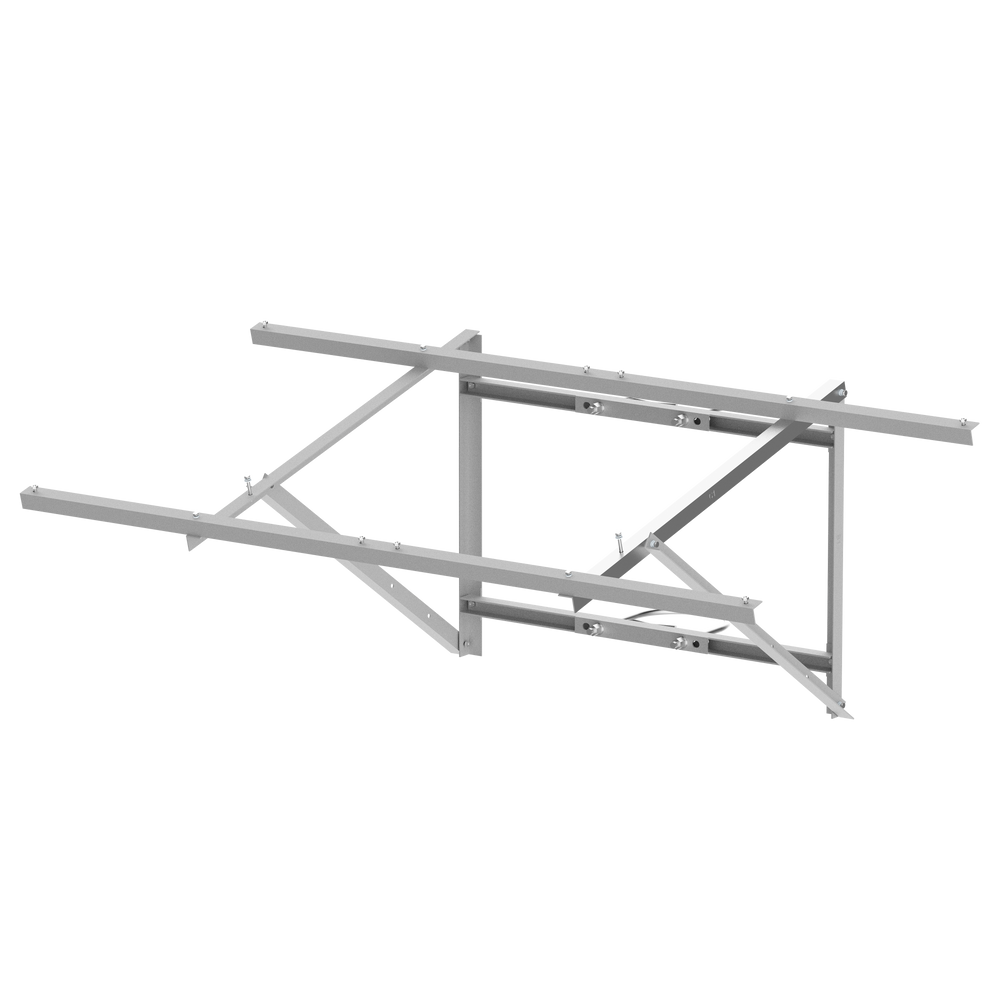

Mounting Bracket of Solar Panel

> Mounting bracket of solar panel DH-PFM376-C *1
> M8x25mm assembling bolt *14pcs
> M8x60mm assembling bolt *4pcs
> M16(double nut&spring pad&flat pad) components *4pcs
> M16 U-hoop *2pcs
> M8x25mm hex head screw *4pcs





Technical Specification

Model

DH-PFM376-C

Type

Mounting brackets of solar panel

Material

Q235

Surface treatment

Galvanized

Installation

Pole mont

Installation diameter

Φ150mm~Φ220mm(Φ5.91"~Φ8.66")

Optional angle

15°

30°

45°

Suitable region(latitude)

0°~15°

16°~30°

31°~45°

Load bearing

30kg(66.14lb)

Color

Silver grey

Compatibility

(solar panel model and quantity)

Suitable for the solar panel model of DH-PFM371-150/200 and support to install 2 pcs solar panels simultaneously.

Package dimension & weight

2179mmx310mmx210mm(85.79”x12.2”x8.27”)

36kg(79.37lb)
