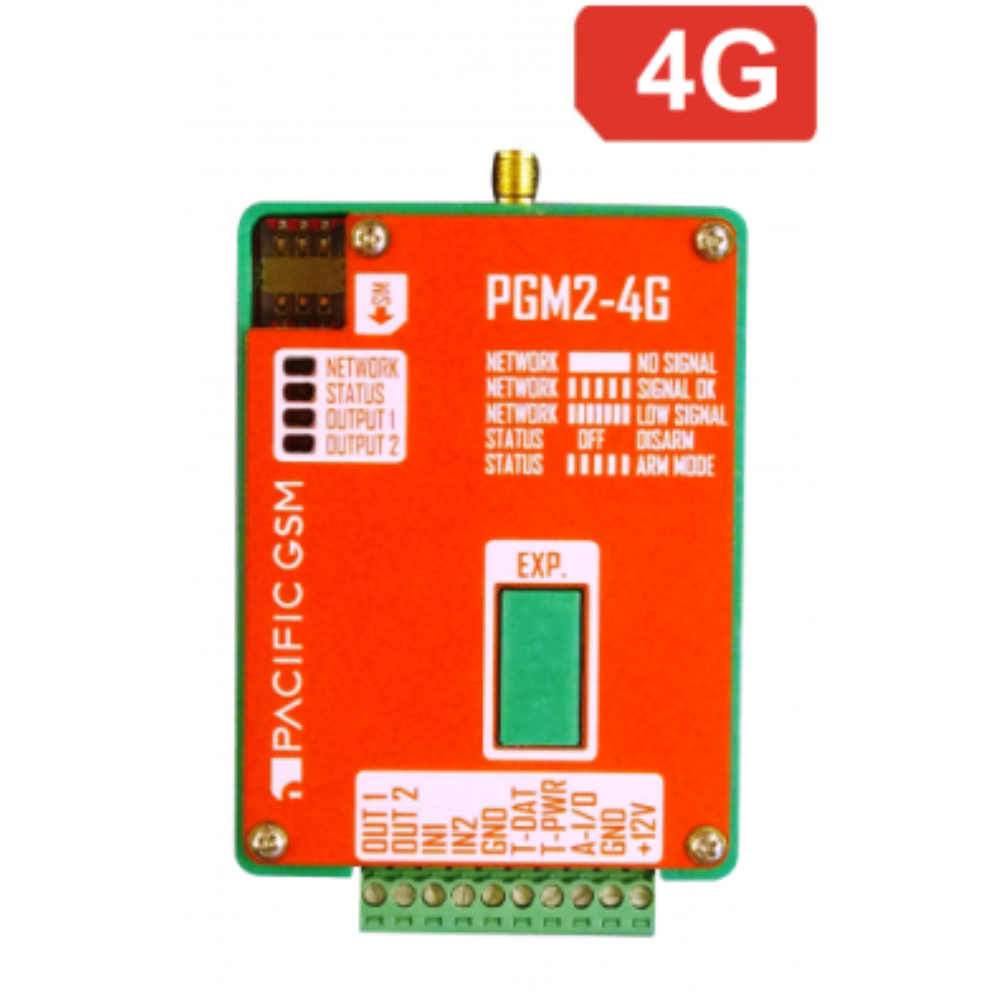

PGM2-4G - PGM2-4G Pacific GSM Module/Communicator

The PGM2-4G offers two universal inputs with adjustable reaction to change, connection or disconnection of the loop. Inputs can be named (SMS text), Each input can send 2 different text for remote status equipment's, Inputs can be used for arming, disarming the communicator from remote device, inputs regime arm/disarm or 24h loop, Input for digital temperature sensor with automatic output control (thermostat), Information SMS in case of exceeding the set temperature or the temperature drops below the set limit, 2 outputs with multiple configuration options. Activation via TXT or call with timer option, siren, arm mode indication ets. Device status, you can always check the status via SMS.

Features:
PGM2-4G module dimensions: 93 x 61 x 20 mm (H x W x D)
Power Supply Voltage: 6-15V DC
Current Consumption - 4G Module connected to network, standby: approx 20 mA
Max current consumption (4G module transmits): peak of 1A max.
Operating temperature: -20°C to +50°C
2 logic input, active level GND
1 input for digital temperature sensor with a measuring range from -55­°C to 125°C
2 output transistor open collection with load max 100 mA 12V
1 x Expander for additional inputs, outputs, relays, LCD etc.
USB-PC configuration with USB cable
10 authorised phone numbers can be set up
PGM2-4G have two mounting option DIN rail or screw in and multiple colour option.
PGM2-4G is designed in a dry environment. For outdoor installation, use the box with corresponding protection.
