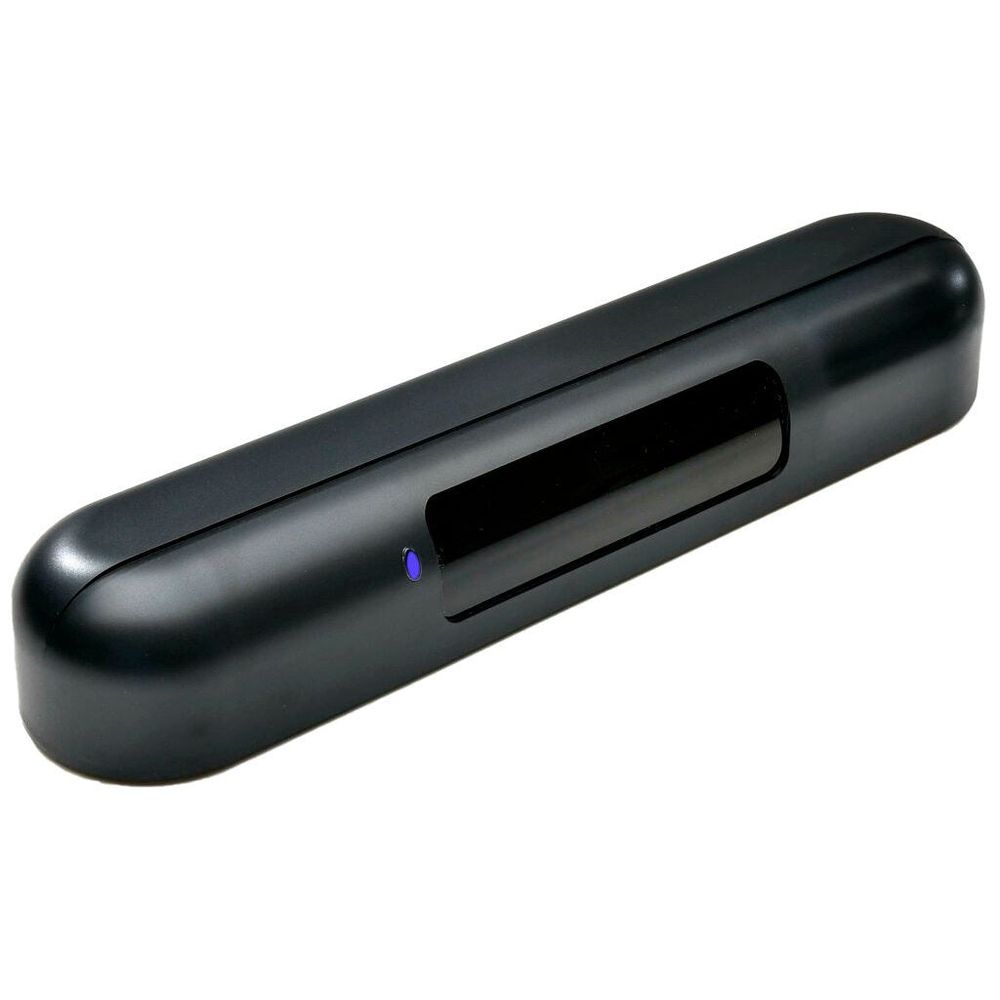

SSR-3 - Hotron Automatic swing door safety sensor

• Large Detection Area

  • Large detection distances ensure timely openings for doors approached by shopping trolleys or fast moving traffic.
  • Ideal for airports, DIY stores, garden centres, etc.

• Energy Efficiency

  • Unidirectional detecting technology reduces building energy losses by as much as 20%.

• Pedestrian Safety

  • Door Learn technology provides unrivalled pedestrian safety.
  • 3-row infrared safety curtain protects pedestrian inside and around the door close zone.
  • Monitored safety system.

• Reduced Time Onsite

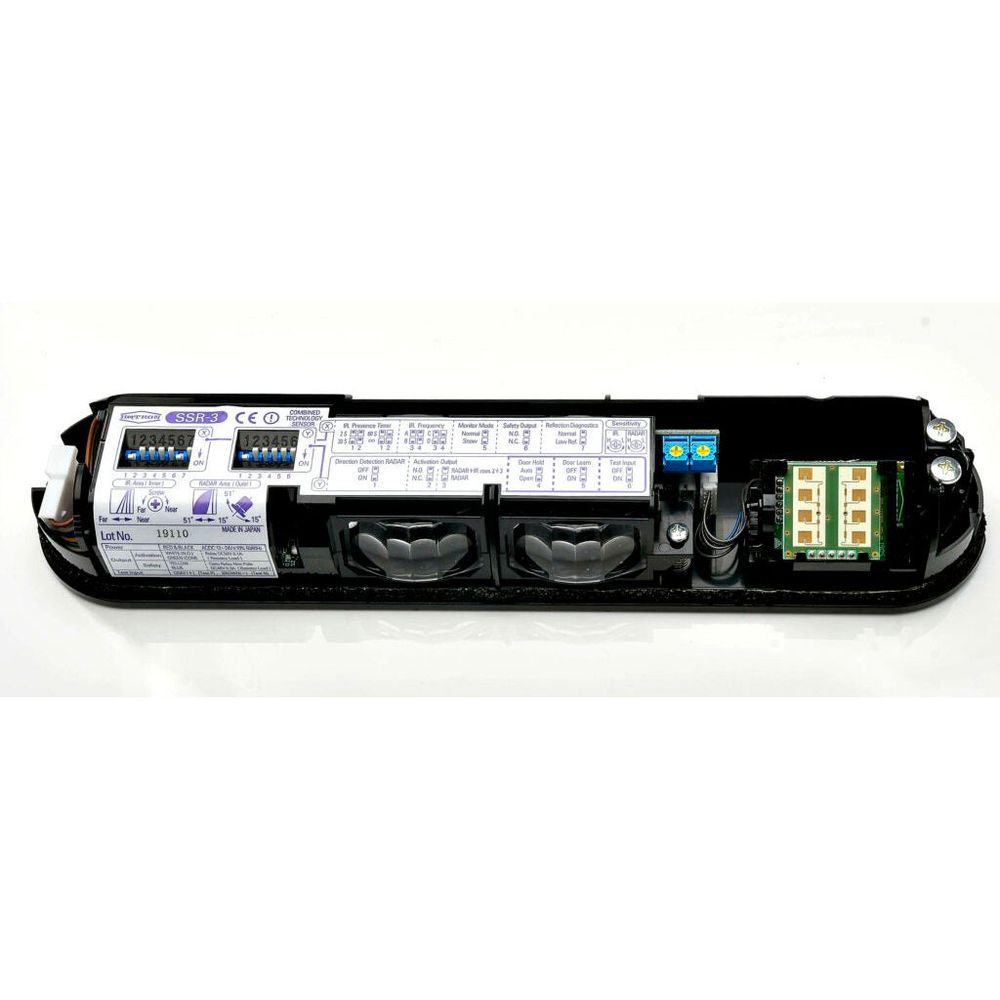

  • Installation instructions clearly printed on the sensor body.
  • Factory pre-set dipswitch settings to conform to EN16005.
  • Intelligent software prevents false door activations.
  • One piece sensor body construction prevents parts getting lost or broken during installation.

Specs

• ModelSSR-3: Dual Relay Output Automatic Door Activation + Monitored Safety.
• Detection MethodMicrowave Motion Detection, K-Band + Active Infrared Detection
• Installation Height2000mm to 3200mm (6.5ft to 10.5ft)
• Sensor Dimensions265mm (W), 60mm (H), 43mm (D)
• Presence Timer2s, 30s, 1min and infinity (Active Infrared 3 rows)
• IP Rating54
• Power Supply12 to 24V AC or DC ± 10%
• Power ConsumptionAC12V-2.5 [VA] (Max), DC12V-150 [mA] (Max)
• Operating Temperature-20°C to +60°C (-4°F to 140°F)
• Weight254g (0.56 lbs)
