Hotron

SSS-5 - Hotron Automatic swing door safety sensor

SSS-5 - Hotron Automatic swing door safety sensor

SSS-5

$693.75 NZD
$693.75 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

1000 in stock

  • Pedestrian Safety

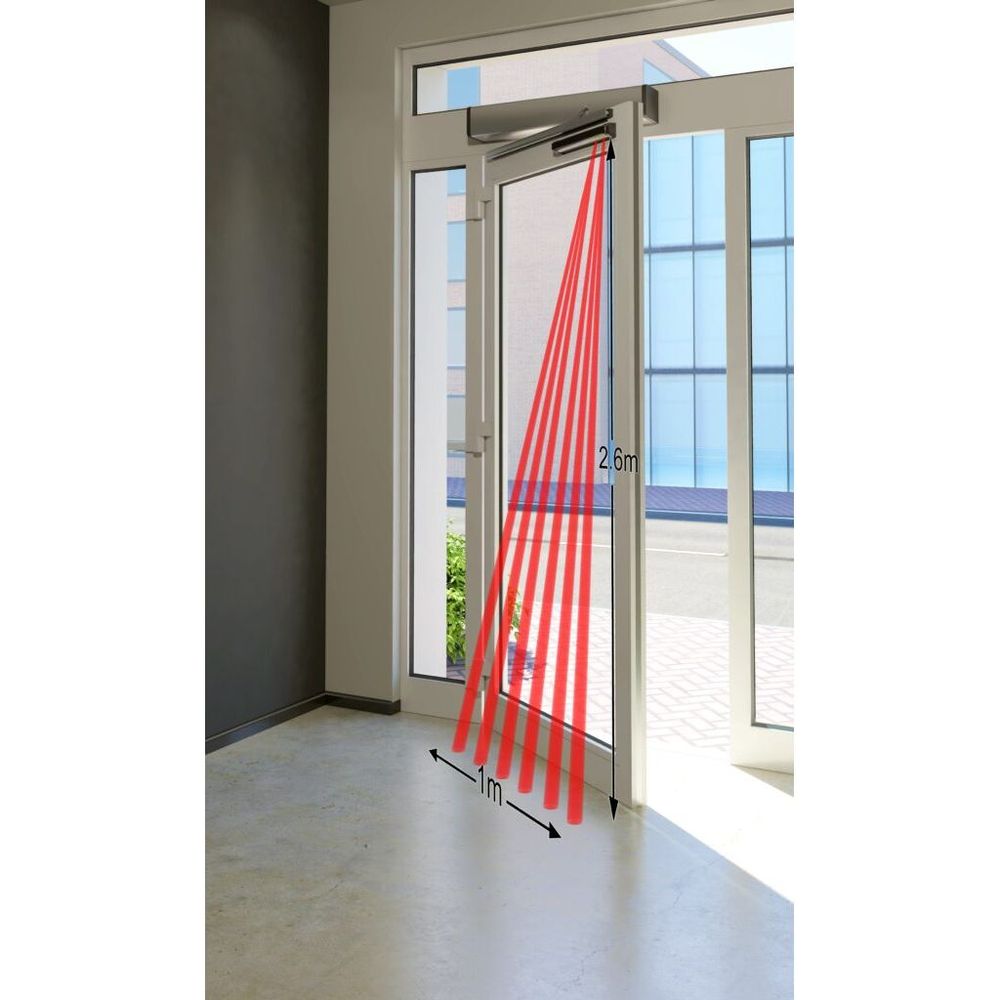

    • 900mm wide safety curtain achieved with just 1 PCB unit
    • Safety curtain can be focused very close to the floor
    • EN16005 compliant monitored safety system

  • Ease of Installation

    • Simple push button setting of detection distance
    • Only one PCB units required for full door safety
    • Communication cable provided to connect SSS-5 sensors on opposite sides of the door
    • Removable terminal block simplifies wiring

  • Performance Reliability

    • Ability to adjust in real-time to changing environmental conditions

  • Maintenance Free

    • Robust housing and parts prevent damage during installation and operation
Specs
  • ModelSSS-5: Swing Door Safety Sensor　
  • Detection MethodStatic Presence Detection using PSD distance measurement
  • Detection Range0 - 2.55m
  • Installation Height2600mm (8.5ft) Max
  • Sensor DimensionsSSS-5S = 360mm, SSS-5M = 692mm, SSS-5L = 1,023mm
  • Presence TimerInfinity
  • IP Rating54
  • Power Supply12 to 24V AC or DC ± 10%
  • Power ConsumptionAC12V-1.7 [VA] (Max), DC12V-95 [mA], AC24V-2.3 [VA] (Max), DC24V-55 [mA]
  • Operating Temperature-20°C to +60°C, (-4°F to 140°F)
  • WeightSSS-5S1: 350[g] APPROX. SSS-5M1: 540[g] APPROX. SSS-5L1: 760[g] APPROX.
  • Available ColoursBlack
