TL-OC200 - TP-Link OC200 Omada Cloud Controller

TL-OC200 - TP-Link OC200 Omada Cloud Controller

TL-OC200

$183.50 NZD
$183.50 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock: 20 left

OC200

Omada Hardware Controller

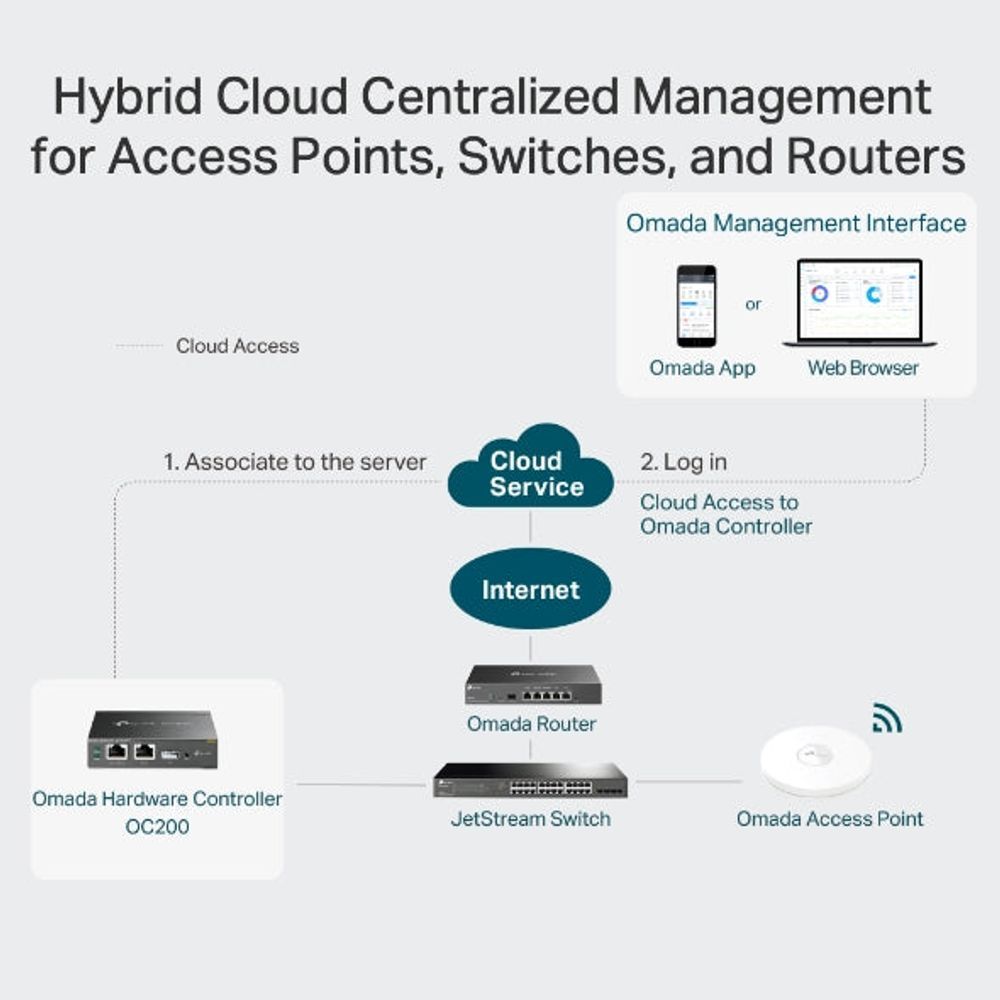

  • Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.
  • Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
  • On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.

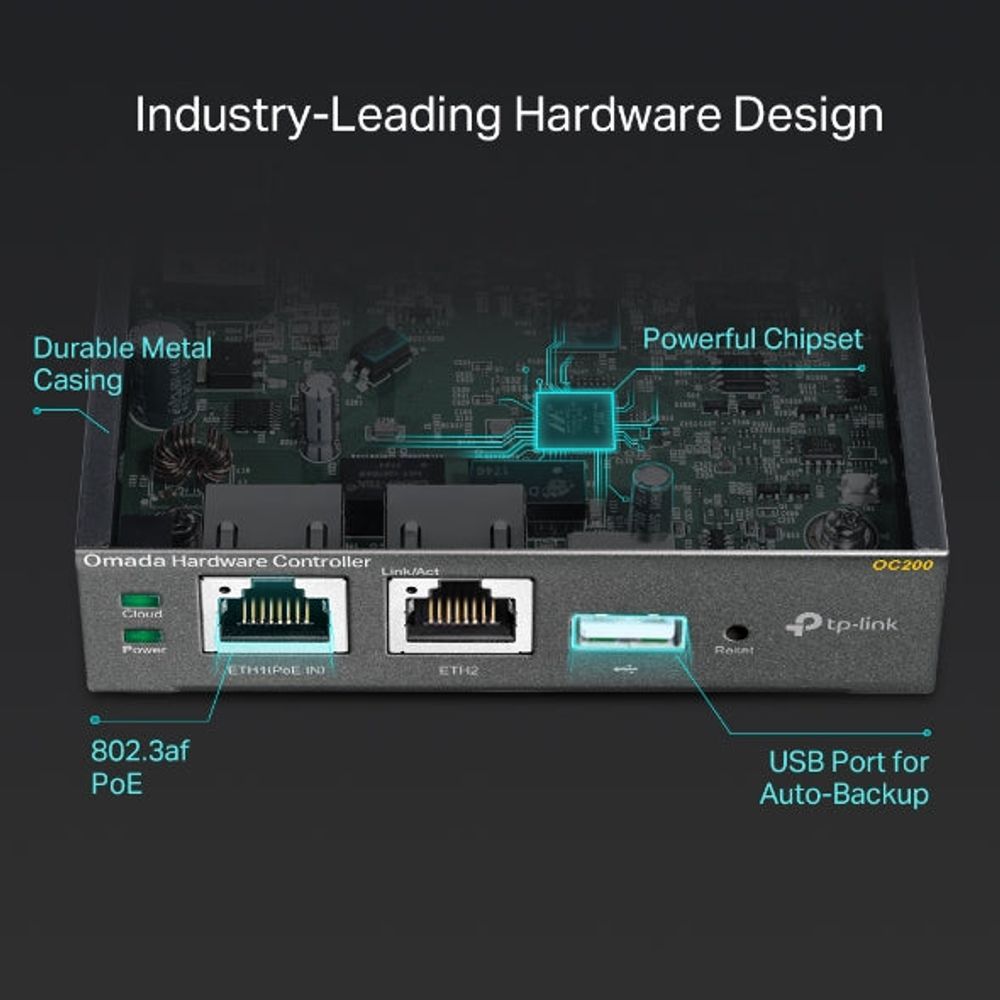

  • Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
  • Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
  • Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
  • Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
  • Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.
HARDWARE FEATURES
Interface 2 × 10/100Mbps Ethernet Port
1 × USB 2.0 Port for configuration backup
1 × Micro USB Port for power
Power Supply 802.3af/at PoE or Micro USB（DC 5V/1A）
Dimensions 3.9 × 3.9 × 1.0in.
(100 × 98 × 25mm)
MANAGEMENT
Omada App Yes
Centralized Management • Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
• Up to 1,000 Clients

Note: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the device models supported by OC200
Cloud Access Yes
L3 Management Yes
Multi-site Management Yes
Management Features • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS

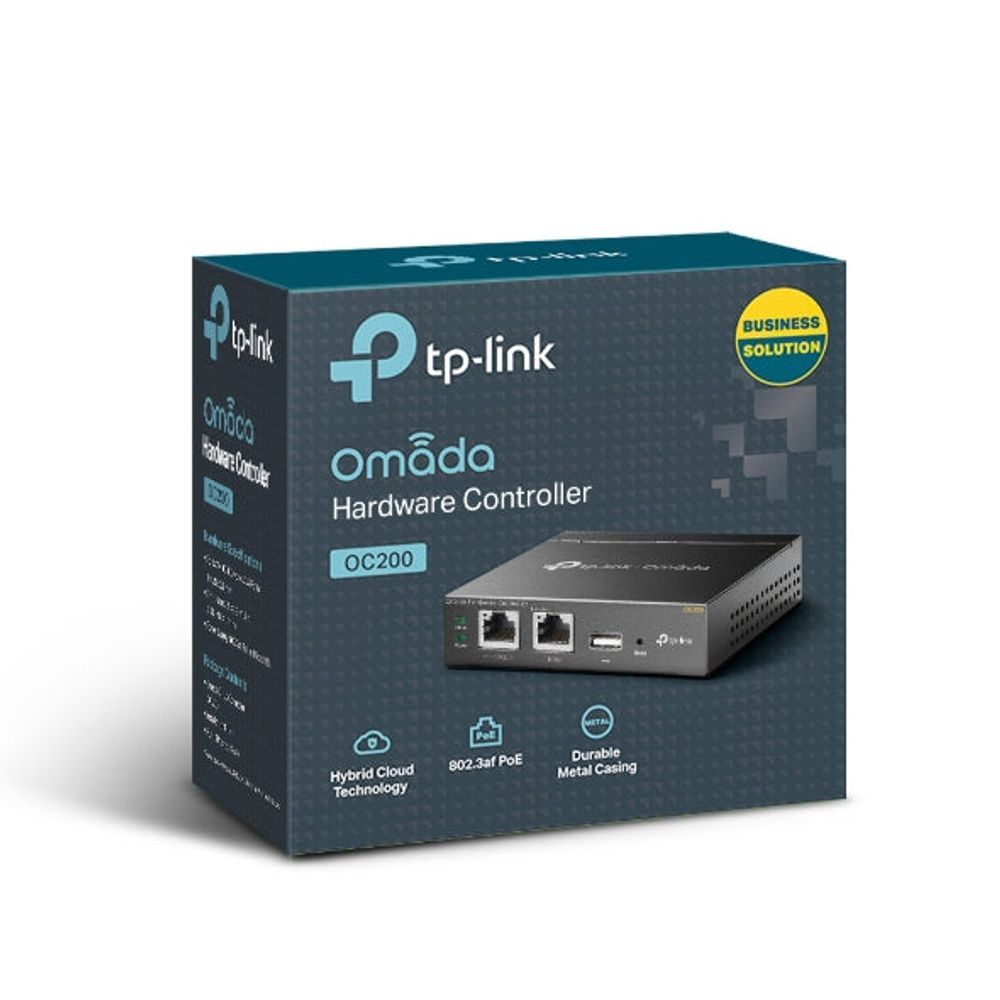

Package Contents • Omada Hardware Controller OC200
• Quick Installation Guide
• Ethernet Cable
System Requirements Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
