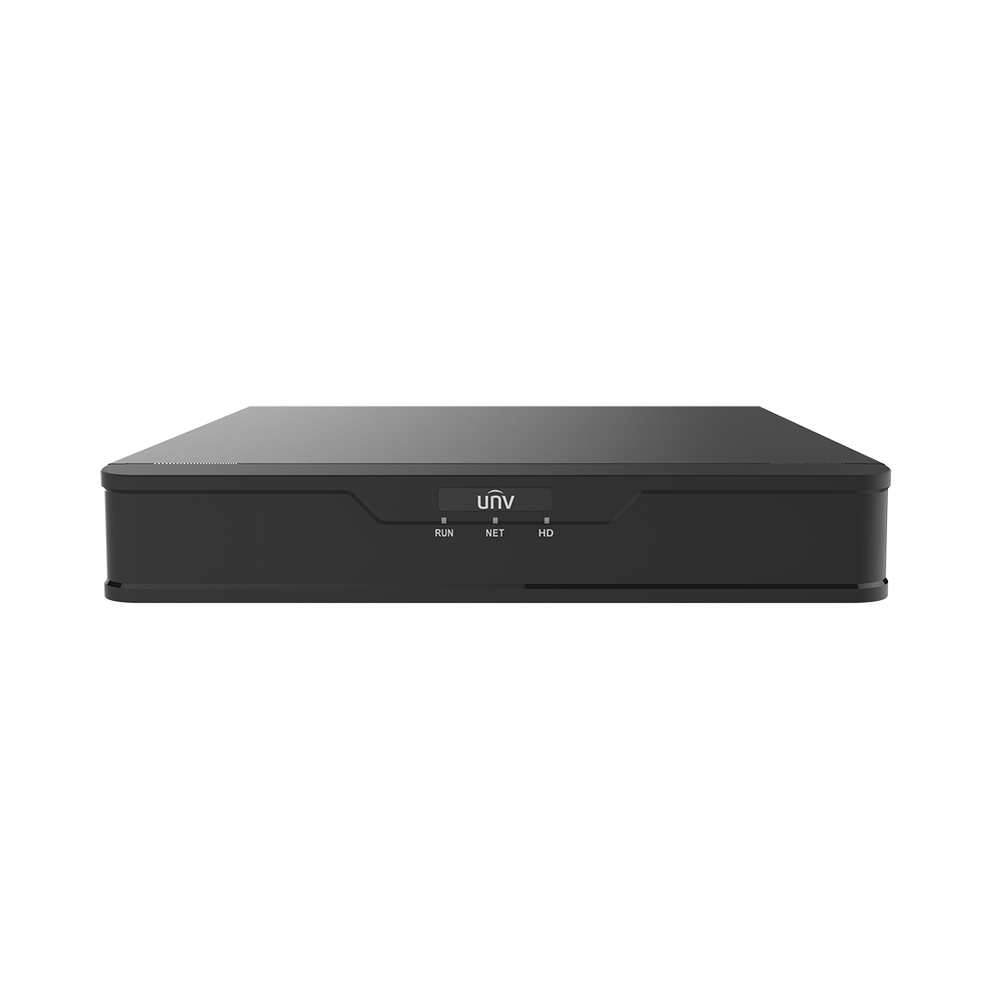

Uniview XVR301-04Q Compact 1U H265 4-Channel Pentabrid (HDTVI / HDCVI / AHD / CV

Uniview XVR301-04Q Compact 1U H265 4-Channel Pentabrid (HDTVI / HDCVI / AHD / CVBS / IP) DVR – 4x BNC Inputs + 2x IPC Support

Uniview XVR301-04Q Compact 1U H265 4-Channel Pentabrid (HDTVI / HDCVI / AHD / CVBS / IP) DVR – 4x BNC Inputs + 2x IPC Support

Features :-

• Support H.265 / H.264 video formats
• Support audio over coaxial cable
• Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• 4-channel BNC input
• Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
• Long transmission distance over coaxial cable
• Hardware characteristics :-
  • • • 1 x VGA port (max. 1080P resolution)
      • 1 x HDMI port (max. 1080 resolution) – Same display output as VGA
      • 1 x CVBS output
      • 1 x 3.5? SATA HDD port (max. 6TB HDD per port)
      • 2 x USB ports (two rear)
      • 1 x RS-485 port
      • 4 x BNC inputs (to support Analogue / AHD / HDCVI / HDTVI cameras)* – Check specifications for resolution support
      • 1 x LAN port (10/100Mbps)
      • No Alarm input ports
      • No Alarm output ports
      • 1 x Audio RCA input port
      • 1 x Audio RCA output port
