Uniview XVR302-16Q3 Ultra HD 2.0 Series 4K 1U 16-Channel Pentabrid (AHD / TVI /

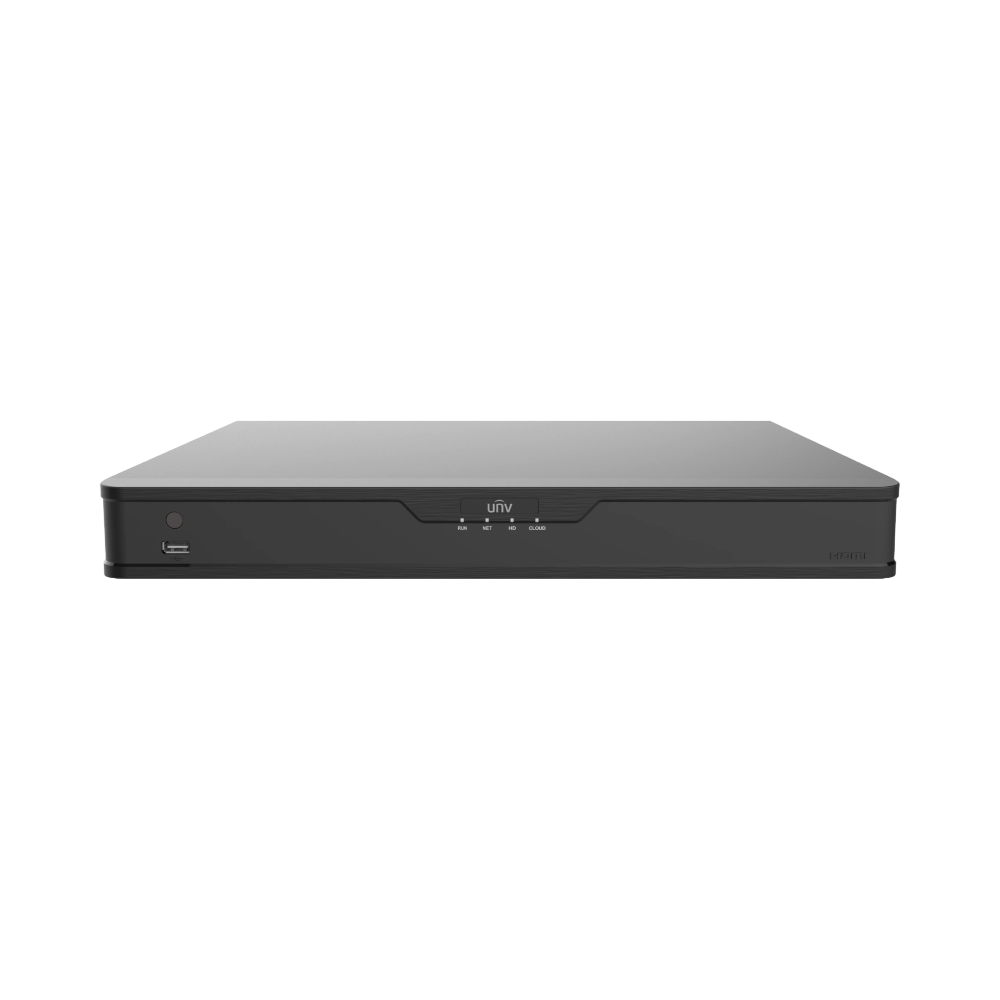

Uniview XVR302-16Q3 Ultra HD 2.0 Series 4K 1U 16-Channel Pentabrid (AHD / TVI / CVI / CVBS / IP) DVR – Digital Video Recorder

Uniview XVR302-16Q3 Ultra HD 2.0 Series 4K 1U 16-Channel Pentabrid (AHD / TVI / CVI / CVBS / IP) DVR – Digital Video Recorder

Features :-

• Supports H.265 / H.264 video formats
• Supports audio over coaxial cable(only for TVI cameras)
• Supports TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• 16-channel BNC input
• Supports 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160)
• HDMI and VGA simultaneous output
• Long transmission distance over coaxial cable
• Support mainstream cameras of ONVIF and RTSP protocols
• Hardware characteristics :-
  • • • 1 x VGA port (max. 1080P resolution)
      • 1 x HDMI port (max. 1080 resolution) – Same display output as VGA
      • 1 x CVBS output
      • 2 x 3.5? SATA HDD ports (max. 8TB HDD per port)
      • 3 x USB ports (one front, two rear)
      • 1 x RS-485 port
      • 16 x BNC inputs (to support Analogue / AHD / HDCVI / HDTVI cameras)* – Check specifications for resolution support
      • 1 x LAN port (10/100/1000Mbps)
      • 4 x Alarm input ports
      • 1 x Alarm output port
      • 1 x Audio RCA input port
      • 1 x Audio RCA output port
