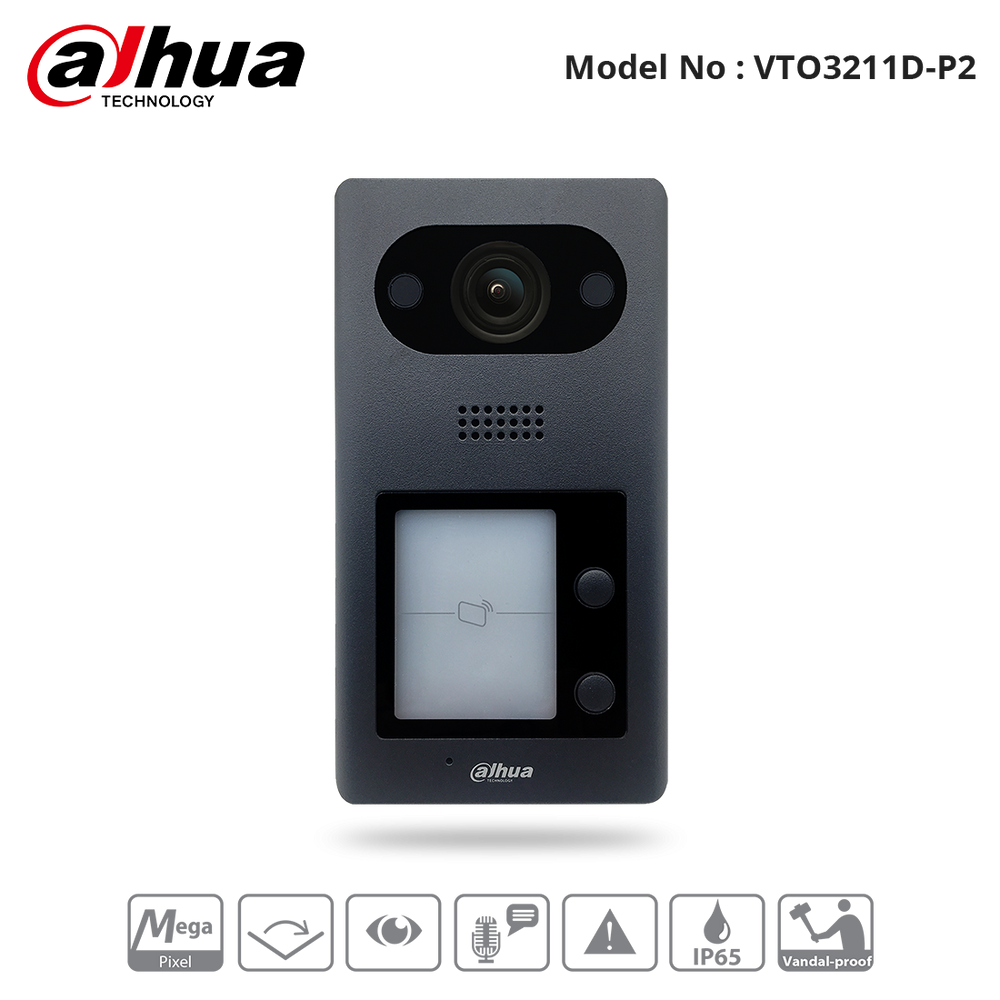

VTO3211D-P2 - Dahua 2 Button Villa Outdoor Station
VTO3211D-P2 - Dahua 2 Button Villa Outdoor Station
SKU:DHI-VTO3211D-P2
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock: 1 left
Features
Includes:
- 2MP HD CMOS camera
- Aluminum panel, IP65,IK08
- ICR Night vision and Voice indication
- Video and Audio messaging
- Remote intercom with mobile APP
- Surface Mounted
Specs
Model - VTO3211D-P2
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model |
VTO3211D-P/P2/P4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Embedded Micro Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation System |
Embedded LINUX OS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.8" 2MP CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
1.9mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View |
H:140 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
ICR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
Omnidirectional Mic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
Built-in Speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bidirectional Talk |
Support Dual-way Bidirectional talk |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation Mode |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Keypad |
1/2/4 Mechanical Buttons |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reader |
Mifare Card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Control |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm In |
2(1ch unlock button, 1ch feedback) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet |
10M/100Mbps Self-adaptive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
TCP/IP |
Ethernet |
10M/100Mbps Self-adaptive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
TCP/IP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ingress Protection |
IP65, IK08 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper Switch |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Surface |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material |
Aluminum |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
DC 12V, PoE(802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Standby 1W, Work7W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Temperature |
-40C~+60C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Relative Humidity |
10%~90%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
182.0mmx30.0mmx101.0mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
0.8Kg |
