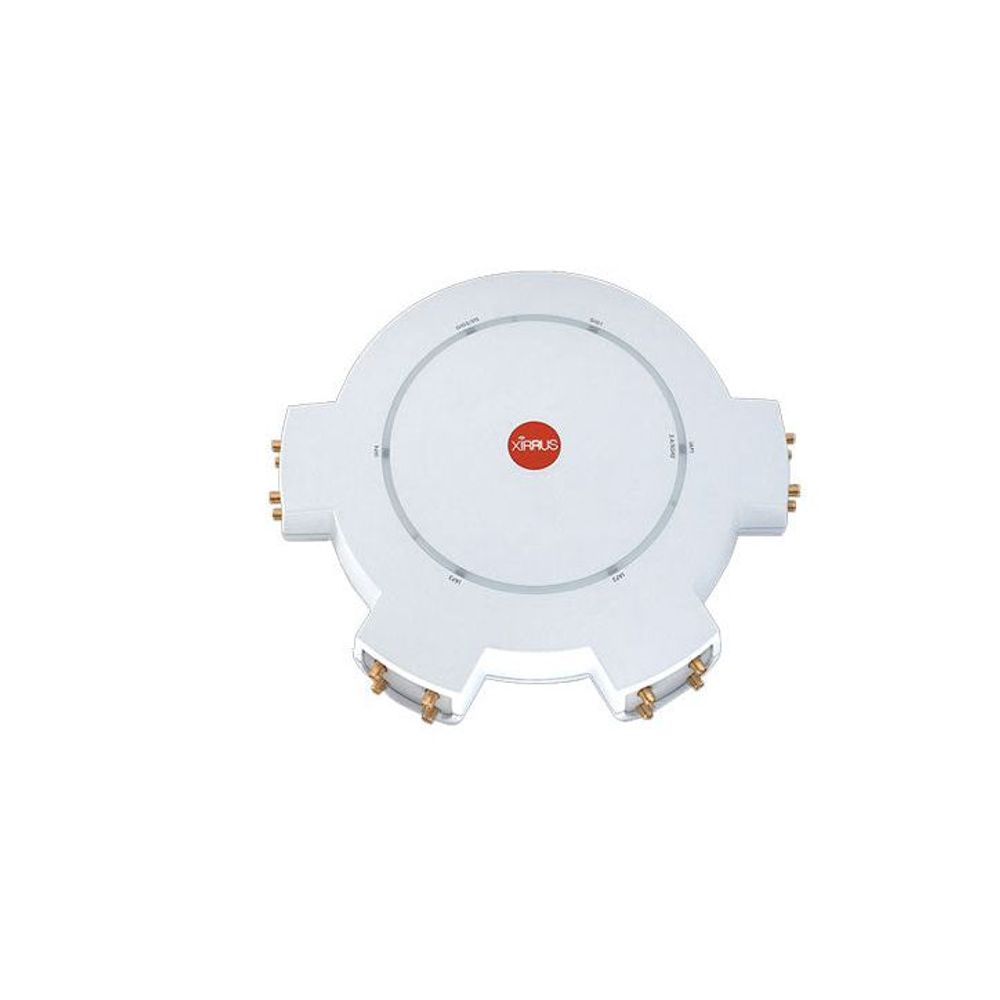

XA4-240 - Xirrus High Density Indoor 4x4 AP One 11ac Wave 2 SDR three 5GHz RP-SMA external antennas

XA4-240 - Xirrus High Density Indoor 4x4 AP One 11ac Wave 2 SDR three 5GHz RP-SMA external antennas

SKU:XA4-240

Regular price $3,053.00 NZD
Regular price Sale price $3,053.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Cambium cnPilot Xirrus High Density Indoor 4x4 AP. One 802.11ac Wave 2 Software Defined Radio (SDR), three 5GHz. RP-SMA external antennas. With 802.11ac Wave 2 becoming the Wi-Fi operational standard, large venues can take advantage of the performance improvements multi-user MIMO (MU-MIMO) technology brings to high density environments. cnPilotXirrus XA4 Wave 2 High Density Access Points (APs) provide high Wi-Fi capacity in locations such as convention centres, airports, train stations and arenas. The plenum rated XA4 AP features external antennas for customization of Wi-Fi coverage in structures with high ceilings, long hallways or wide-open spaces, delivering the robust performance needed to support thousands of Wi-Fi devices at once.

The XA4 AP delivers robust connectivity even in challenging locations by using external antennas to direct radio frequency (RF) signals. Support constantly changing environments and always-on connectivity for any kind of Wi-Fi device.
Features
  • Delivering Robust Performance to Support Thousands of Wi-Fi Devices at Once
  • Supports hot stand-by mode for mission critical areas
  • Radio assurance for radio self-test and healing
  • Dynamic channel and cell size configuration
  • EasyPass simplifies connectivity for Guest/BYOD/IoT
Details
Product Code XA4-240
Chassis Dimensions 13” Diameter, Weight 5.5lbs
Supported Standards 802.11 a/b/g/n/ac (Wave 2)
Total Number of Radios 4 total: 3 - 5GHz , 1 - 2.4GHz / 5GHz software programmable
Radio Type 4x4 11ac 3.47Gbps
MIMO Technology MU-MIMO: 16 streams
Channel Bonding up to 160MHz
Maximum Wi-Fi Bandwidth 13.88Gbps
Wi-Fi Threat Sensor Yes
Antennas 16 RP-SMA female Connectors
Maximum Associated Devices 960
Maximum SSIDs 16
Maximum VLANs 64
Wired Uplinks support four modes802.3ad (Aggregate traffic), broadcast, link-backup (failover), load balance 1 - 2.5GbE, 1 - GbE
Maximum Power Consumption 46W
Details
Power Supply Not included





Specifications





Details
Product Code XA4-240
Chassis Dimensions 13” Diameter, Weight 5.5lbs
Supported Standards 802.11 a/b/g/n/ac (Wave 2)
Total Number of Radios 4 total: 3 - 5GHz , 1 - 2.4GHz / 5GHz software programmable
Radio Type 4x4 11ac 3.47Gbps
MIMO Technology MU-MIMO: 16 streams
Channel Bonding up to 160MHz
Maximum Wi-Fi Bandwidth 13.88Gbps
Wi-Fi Threat Sensor Yes
Antennas 16 RP-SMA female Connectors
Maximum Associated Devices 960
Maximum SSIDs 16
Maximum VLANs 64
Wired Uplinks support four modes802.3ad (Aggregate traffic), broadcast, link-backup (failover), load balance 1 - 2.5GbE, 1 - GbE
Maximum Power Consumption 46W
