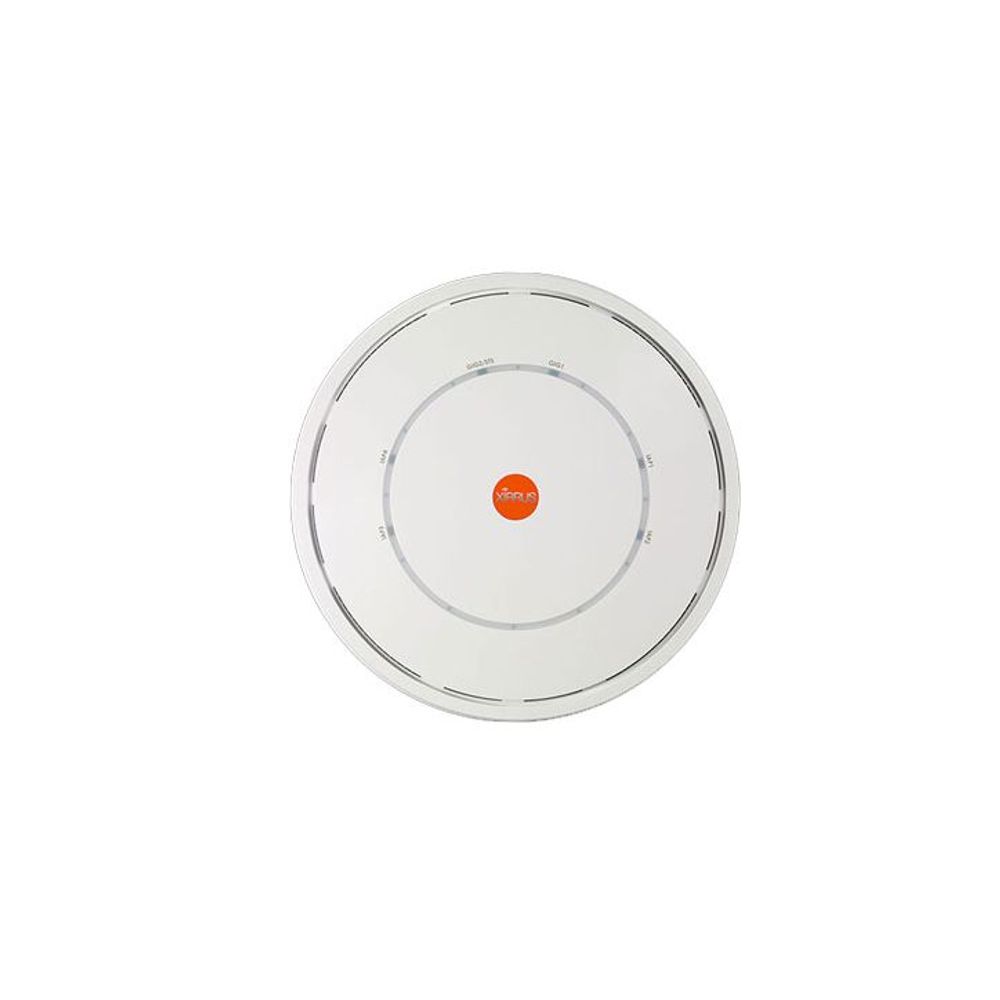

XD4-240 - Xirrus XD4-240 High Density Indoor 4x4 Access Point with Quad 11ac Wave 2 Software Defined Radios
XD4-240 - Xirrus XD4-240 High Density Indoor 4x4 Access Point with Quad 11ac Wave 2 Software Defined Radios
SKU:XD4-240
Regular price
$2,639.00 NZD
Regular price
Sale price
$2,639.00 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*
The Cambium cnPilot Xirrus XD4-240 is a High Density Indoor 4x4 Access Point with Quad 11ac Wave 2 Software Defined Radios.
Xirrus XD (extreme density) Wi-Fi access points (APs) deliver maximum performance in high-density environments like classrooms, auditoriums, libraries, and training centers.
The XD4 integrates four high speed 802.11ac capable radios and optimizes performance with automated RF configuration. The XD platform, paired with award-winning Xirrus XMS cloud or on-premise management system, delivers groundbreaking performance and simplicity.
Unparalleled Performance
When it comes to high-density Wi-Fi the XD4 can’t be beat. Four integrated 802.11ac capable radios and automated RF configuration continually optimize performance. The XD platform automatically chooses the best available bands and power level without IT intervention. Plus, it customizes client connectivity for the best performance based on each device’s capability for a true zero-touch experience.
Best ROI
All XD APs feature TurboXpress, which allows administrators to configure every radio on the AP for high-speed 802.11ac operation with just one click, boosting Wi-Fi performance up to six times. It’s the only industry solution that can add wireless capacity instantly without adding APs. TurboXpress also enables you to effortlessly address changing needs, protecting your investment.
Xirrus XD (extreme density) Wi-Fi access points (APs) deliver maximum performance in high-density environments like classrooms, auditoriums, libraries, and training centers.
The XD4 integrates four high speed 802.11ac capable radios and optimizes performance with automated RF configuration. The XD platform, paired with award-winning Xirrus XMS cloud or on-premise management system, delivers groundbreaking performance and simplicity.
Unparalleled Performance
When it comes to high-density Wi-Fi the XD4 can’t be beat. Four integrated 802.11ac capable radios and automated RF configuration continually optimize performance. The XD platform automatically chooses the best available bands and power level without IT intervention. Plus, it customizes client connectivity for the best performance based on each device’s capability for a true zero-touch experience.
Best ROI
All XD APs feature TurboXpress, which allows administrators to configure every radio on the AP for high-speed 802.11ac operation with just one click, boosting Wi-Fi performance up to six times. It’s the only industry solution that can add wireless capacity instantly without adding APs. TurboXpress also enables you to effortlessly address changing needs, protecting your investment.
Features
- High performance 802.11ac Wave 2 AP
- Software-defined radios enable all-5GHz deployment
- EasyPass simplifies Wi-Fi access
- Bluetooth ready AP for locationing
- SSO with Office 365 and Google Apps
- Manage from the cloud or on premise
- Supports hot stand-by mode for mission critical areas
- Supports ability to turn off radios based on schedule configuration
Details | |
---|---|
Manufacturers Product Code | XD4-240 |
Chassis Dimensions | 10” Diameter, Weight 2.3lbs |
Supported Standards | 802.11 a/b/g/n/ac (Wave 2) |
Number of Radios | 4x 2.4GHz / 5GHz software defined radios |
Radio Type | 4x4 11ac 3.47Gbps |
MIMO Technology | MU-MIMO: 16 Streams |
Maximum Wi-Fi Bandwidth | 13.88Gbps |
Dedicated Wi-Fi Threat Sensor | Yes |
Bluetooth Technology | Yes |
Antennas | 16 (Internal) |
Maximum Wi-Fi Backhaul | 10.4Gbps |
Maximum Associated Users | 780 |
Wired Uplinks | 1x 2.5 Gigabit Ethernet, 1x 1 Gigabit Ethernet |
Maximum Power Consumption | 46W |
Operating Temperature | 0-55C, 0-90% humidity, non-condensing |
Storage Temperature | -40C to 70C |
Details | |
---|---|
Power Supply | Not Included |
Specifications
The Cambium cnPilot Xirrus XD4-240 is a High Density Indoor 4x4 Access Point with Quad 11ac Wave 2 Software Defined Radios.
Xirrus XD (extreme density) Wi-Fi access points (APs) deliver maximum performance in high-density environments like classrooms, auditoriums, libraries, and training centers.
The XD4 integrates four high speed 802.11ac capable radios and optimizes performance with automated RF configuration. The XD platform, paired with award-winning Xirrus XMS cloud or on-premise management system, delivers groundbreaking performance and simplicity.
Unparalleled Performance
When it comes to high-density Wi-Fi the XD4 can’t be beat. Four integrated 802.11ac capable radios and automated RF configuration continually optimize performance. The XD platform automatically chooses the best available bands and power level without IT intervention. Plus, it customizes client connectivity for the best performance based on each device’s capability for a true zero-touch experience.
Best ROI
All XD APs feature TurboXpress, which allows administrators to configure every radio on the AP for high-speed 802.11ac operation with just one click, boosting Wi-Fi performance up to six times. It’s the only industry solution that can add wireless capacity instantly without adding APs. TurboXpress also enables you to effortlessly address changing needs, protecting your investment.
Xirrus XD (extreme density) Wi-Fi access points (APs) deliver maximum performance in high-density environments like classrooms, auditoriums, libraries, and training centers.
The XD4 integrates four high speed 802.11ac capable radios and optimizes performance with automated RF configuration. The XD platform, paired with award-winning Xirrus XMS cloud or on-premise management system, delivers groundbreaking performance and simplicity.
Unparalleled Performance
When it comes to high-density Wi-Fi the XD4 can’t be beat. Four integrated 802.11ac capable radios and automated RF configuration continually optimize performance. The XD platform automatically chooses the best available bands and power level without IT intervention. Plus, it customizes client connectivity for the best performance based on each device’s capability for a true zero-touch experience.
Best ROI
All XD APs feature TurboXpress, which allows administrators to configure every radio on the AP for high-speed 802.11ac operation with just one click, boosting Wi-Fi performance up to six times. It’s the only industry solution that can add wireless capacity instantly without adding APs. TurboXpress also enables you to effortlessly address changing needs, protecting your investment.
Features
- High performance 802.11ac Wave 2 AP
- Software-defined radios enable all-5GHz deployment
- EasyPass simplifies Wi-Fi access
- Bluetooth ready AP for locationing
- SSO with Office 365 and Google Apps
- Manage from the cloud or on premise
- Supports hot stand-by mode for mission critical areas
- Supports ability to turn off radios based on schedule configuration
Details | |
---|---|
Manufacturers Product Code | XD4-240 |
Chassis Dimensions | 10” Diameter, Weight 2.3lbs |
Supported Standards | 802.11 a/b/g/n/ac (Wave 2) |
Number of Radios | 4x 2.4GHz / 5GHz software defined radios |
Radio Type | 4x4 11ac 3.47Gbps |
MIMO Technology | MU-MIMO: 16 Streams |
Maximum Wi-Fi Bandwidth | 13.88Gbps |
Dedicated Wi-Fi Threat Sensor | Yes |
Bluetooth Technology | Yes |
Antennas | 16 (Internal) |
Maximum Wi-Fi Backhaul | 10.4Gbps |
Maximum Associated Users | 780 |
Wired Uplinks | 1x 2.5 Gigabit Ethernet, 1x 1 Gigabit Ethernet |
Maximum Power Consumption | 46W |
Operating Temperature | 0-55C, 0-90% humidity, non-condensing |
Storage Temperature | -40C to 70C |
Details | |
---|---|
Power Supply | Not Included |
