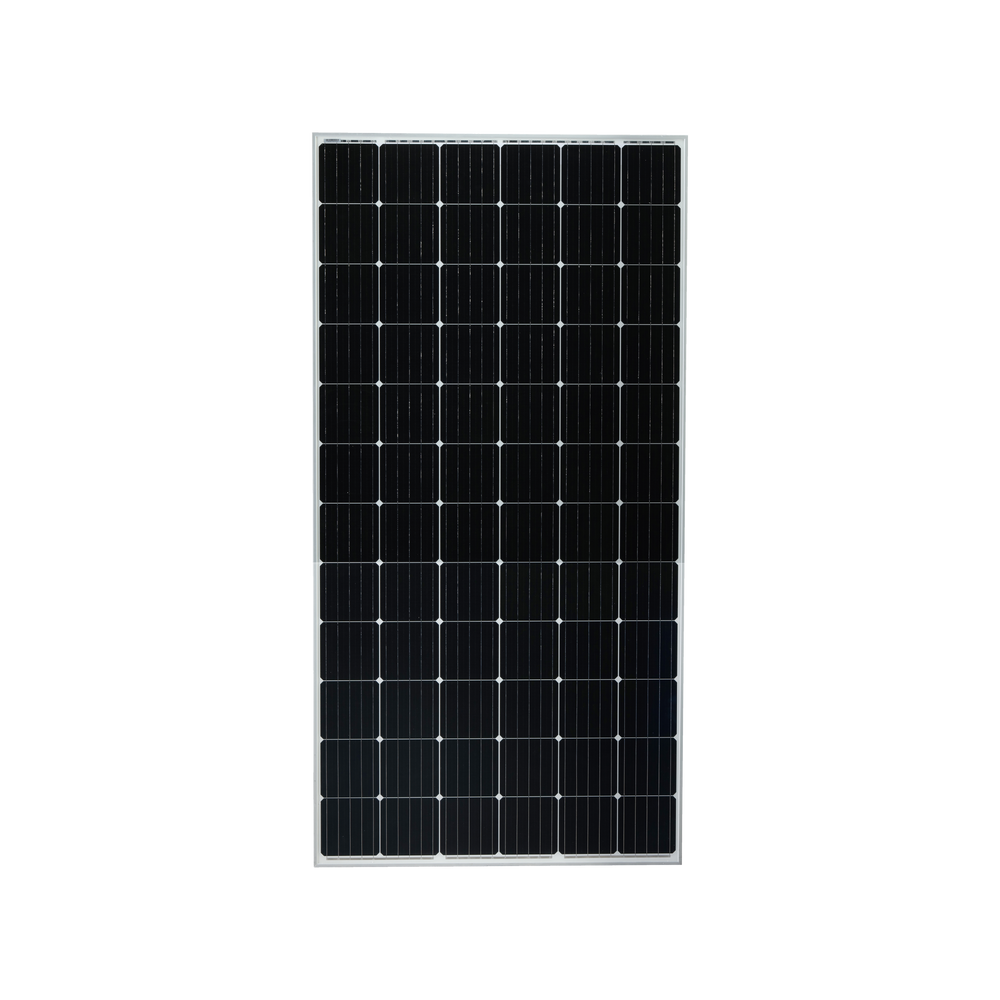

ZDNY-330C72 - Dahua 330W solar panel, monocrystalline silicon Certification
ZDNY-330C72 - Dahua 330W solar panel, monocrystalline silicon Certification
SKU:ZDNY-330C72
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock: 4 left
>Five main grid battery piece: has a more uniform current collection capability, reduce current loss of internal battery board, and has a more beautiful appearance;
>Efficient: the conversion efficiency of the battery is up to 19.2%;
>Good weak light performance: use excellent surface texturing technology of the glass and battery piece;
>Strong load capacity: through 2400Pa wind load and 5400Pa snow load certification.
>Harsh environment adaptability: suitable for a variety of harsh environments, such as high altitude, high salt fog, high cold, etc.
Specs
Model |
ZDNY-330C72 |
Electrical parameter |
|
Max. power(Pmax) |
330Wp |
Max. power point voltage(Vmp) |
39.29V |
Max. power point current(Imp) |
8.4A |
Open circuit voltage(Voc) |
46.35V |
Short circuit current (Isc) |
9.05A |
Efficiency of battery piece |
19.2% |
Max. power temperature coefficient |
-0.4%/ ºC |
Temperature coefficient of open circuit voltage |
-0.35%/ ºC |
Temperature coefficient of short circuit current |
0.053%/ ºC |
Working temperature |
-40ºC~+85ºC(-40℉~+140℉) |
Structural parameter |
|
Dimension of battery cells |
Monocrystalline silicon, 156mmx156mm(6.14”x6.14”) |
Quantity of battery cells |
72pcs(6*12) |
Glass |
3.2mm(0.13”). High permeability, low iron,tempered glass |
Backsheet |
Triple-layer backsheet, white |
Packaging material |
High permeability, EVA |
Frame |
Anodic alumina |
Junction box |
IP65, with diode |
Connector |
MC4 compatible connector |
Weight |
21.6kg(47.62lb) |
Dimension |
1956mmx992mmx45mm(77.01”x39.06”x1.77”) |
Cable length |
900mm/4.0mm2 |
Max. mechanical load |
Wind pressure: 2400Pa; Snow pressure: 5400Pa |
