Adeunis
ARF8170BA-B01 - Adeunis LoRaWAN EU868 Dry Contact and Proximity IoT Sensor
ARF8170BA-B01 - Adeunis LoRaWAN EU868 Dry Contact and Proximity IoT Sensor
SKU:ARF8170BA-B01
Regular price
$95.00 NZD
Regular price
Sale price
$95.00 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*
The Adeunis ARF8170BA-B01 bundles Dry Contacts and a Proximity IoT Sensor for LoRaWAN EU863-870.

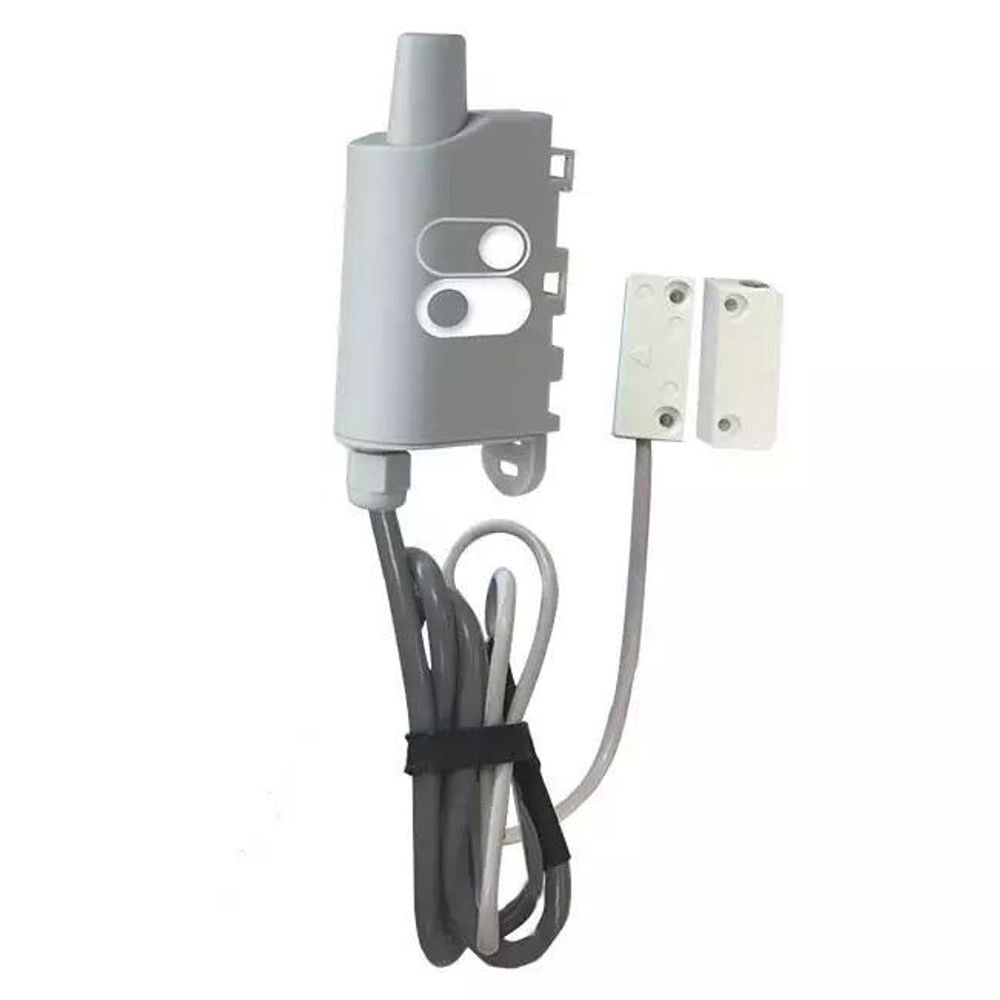

The Contact-sensor is a ready-to-use product enabling you to detect “door opening”. It is an assembly between a DRY CONTACTS transceiver and a proximity switch. Default settings have been established to simplify product installation by the user.
Common uses for the device are to identify the frequency of use of an area (e.g. sanitary, meeting room) and be able to schedule the cleaning of this area. Detect a presence in areas considered sensitive (technical room, electrical room, server room) or a building (doors, windows) and be alerted during an intrusion in this space.
The Contact-sensor is a ready-to-use product enabling you to detect “door opening”. It is an assembly between a DRY CONTACTS transceiver and a proximity switch. Default settings have been established to simplify product installation by the user.
Common uses for the device are to identify the frequency of use of an area (e.g. sanitary, meeting room) and be able to schedule the cleaning of this area. Detect a presence in areas considered sensitive (technical room, electrical room, server room) or a building (doors, windows) and be alerted during an intrusion in this space.
Features
- Compatible with EU863-870 LoRaWAN™ networks
- Ready to use solution
- Self powered
- Transmission on events (Alert) or periodic (Counting)
- Cable cut detection
- Replaceable battery
Details | |
---|---|
Product Code | ARF8170BA-B01 |
Operating temperature range | -10°C / +85°C |
Dimensions | 14 x 38 x 8.7 mm |
Proximity Sensor Cable Length | 1.20m |
Max operating distance between the two magnets | 15 mm |
Dry Contacts Operating temperature range | -25°C to + 70°C |
Dry Contacts Dimensions | 105 x 50 x 27 mm |
Casing | IP67 (IP68 on demand) |
Zone | LoRaWAN: EU863-870 |
Details | |
---|---|
Specifications
The Adeunis ARF8170BA-B01 bundles Dry Contacts and a Proximity IoT Sensor for LoRaWAN EU863-870.
The Contact-sensor is a ready-to-use product enabling you to detect “door opening”. It is an assembly between a DRY CONTACTS transceiver and a proximity switch. Default settings have been established to simplify product installation by the user.
Common uses for the device are to identify the frequency of use of an area (e.g. sanitary, meeting room) and be able to schedule the cleaning of this area. Detect a presence in areas considered sensitive (technical room, electrical room, server room) or a building (doors, windows) and be alerted during an intrusion in this space.
The Contact-sensor is a ready-to-use product enabling you to detect “door opening”. It is an assembly between a DRY CONTACTS transceiver and a proximity switch. Default settings have been established to simplify product installation by the user.
Common uses for the device are to identify the frequency of use of an area (e.g. sanitary, meeting room) and be able to schedule the cleaning of this area. Detect a presence in areas considered sensitive (technical room, electrical room, server room) or a building (doors, windows) and be alerted during an intrusion in this space.
Features
- Compatible with EU863-870 LoRaWAN™ networks
- Ready to use solution
- Self powered
- Transmission on events (Alert) or periodic (Counting)
- Cable cut detection
- Replaceable battery
Details | |
---|---|
Product Code | ARF8170BA-B01 |
Operating temperature range | -10°C / +85°C |
Dimensions | 14 x 38 x 8.7 mm |
Proximity Sensor Cable Length | 1.20m |
Max operating distance between the two magnets | 15 mm |
Dry Contacts Operating temperature range | -25°C to + 70°C |
Dry Contacts Dimensions | 105 x 50 x 27 mm |
Casing | IP67 (IP68 on demand) |
Zone | LoRaWAN: EU863-870 |
Details | |
---|---|
