ARF8200AA - Adeunis ANALOG 0-10V or 4-20mA PWR for LoRaWAN EU868, External power supply (not included)
ARF8200AA - Adeunis ANALOG 0-10V or 4-20mA PWR for LoRaWAN EU868, External power supply (not included)
SKU:ARF8200AA
Regular price
$129.00 NZD
Regular price
Sale price
$129.00 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*

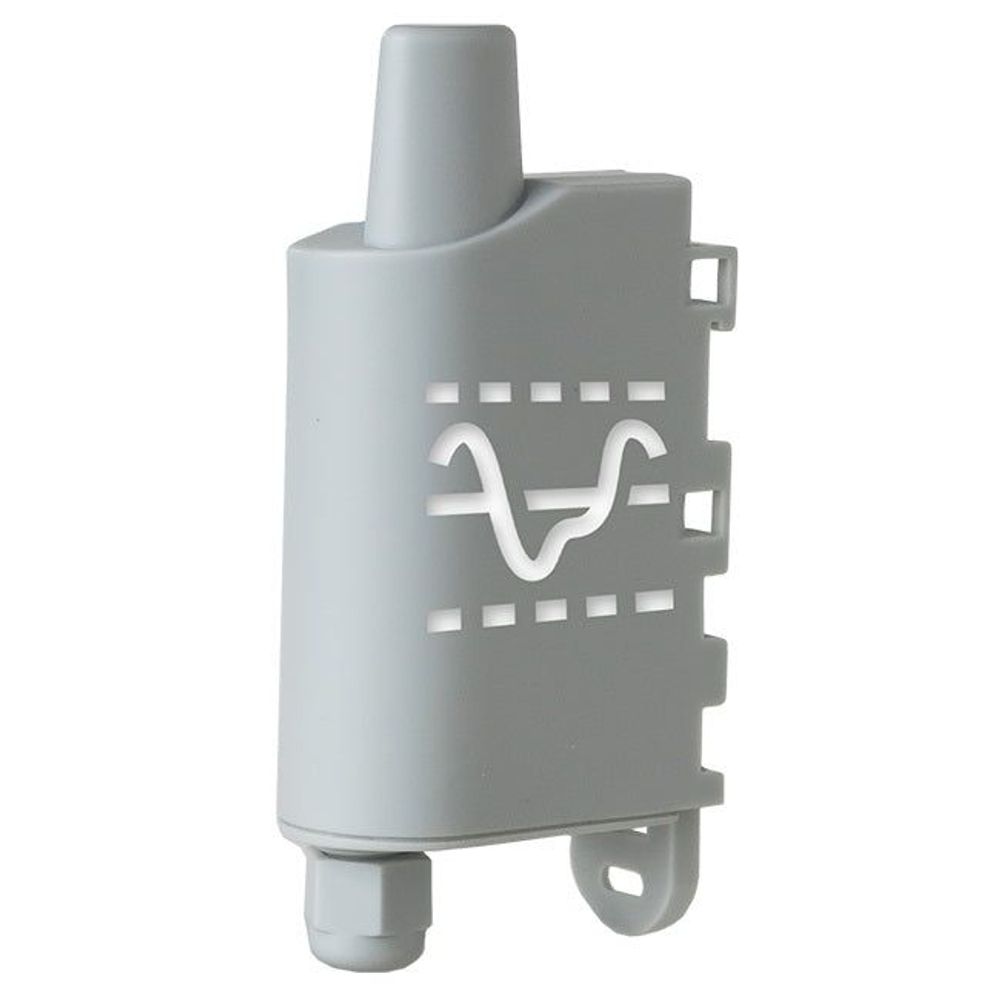

The Adeunis ANALOG PWR is an Analog IoT sensor that supports external power supply (not included) for LoRaWAN EU863-870.
The Adeunis® LoRaWAN 863-870 ANALOG PWR is a ready-to-use radio transmitter enabling any type of 0-10V or 4-20mA sensor to be converted into a wireless communicating sensor. This product meets the needs of users who need to remotely monitor data of any kind (temperature, pressure, level, humidity, CO², speed, brightness, opening, etc.).
The use of the LoRaWAN protocol allows you to integrate the LoRaWAN 863-870 ANALOG PWR into any network that is already deployed. Two sensors can be supported by a single LoRaWAN 863-870 ANALOG PWR transmitter. The product transmits the data from the sensors either periodically or in an event-related way based on top or bottom thresholds or on detection of a change of state on its digital inputs.
The configuration of the transmitter is accessible by the user via a micro-USB port, allowing in particular a choice of modes of transmission, periodicity or type of interface (0-10V or 4-20mA). The LoRaWAN 863-870 ANALOG PWR is powered by an external power supply.
The Adeunis® LoRaWAN 863-870 ANALOG PWR is a ready-to-use radio transmitter enabling any type of 0-10V or 4-20mA sensor to be converted into a wireless communicating sensor. This product meets the needs of users who need to remotely monitor data of any kind (temperature, pressure, level, humidity, CO², speed, brightness, opening, etc.).
The use of the LoRaWAN protocol allows you to integrate the LoRaWAN 863-870 ANALOG PWR into any network that is already deployed. Two sensors can be supported by a single LoRaWAN 863-870 ANALOG PWR transmitter. The product transmits the data from the sensors either periodically or in an event-related way based on top or bottom thresholds or on detection of a change of state on its digital inputs.
The configuration of the transmitter is accessible by the user via a micro-USB port, allowing in particular a choice of modes of transmission, periodicity or type of interface (0-10V or 4-20mA). The LoRaWAN 863-870 ANALOG PWR is powered by an external power supply.
Features
- Compatible with EU863-870 LoRaWAN™ networks
- 2 inputs 0-10V or 4-20mA
- Possibility of triggering measurement via 2 dedicated inputs
- Local and remote configuration
- Ready to use solution
- Low power consumption for optimal autonomy
- External power supply required (not included)
Details | |
---|---|
Product Code | ARF8200AA |
Modes | Periodic or Event |
Analog Inputs | 2x 0-10V or 4-20mA |
Dimensions | 105 x 50 x 27 mm |
Weight | 70 g |
Casing | IP67 |
Integrated Fastening System | DIN rail, tube, wall mount, flange |
Operating Temperature Range | -25°C to + 70°C |
Zone | LoRaWAN: EU863-870 |
Details | |
---|---|
Specifications
The Adeunis ANALOG PWR is an Analog IoT sensor that supports external power supply (not included) for LoRaWAN EU863-870.
The Adeunis® LoRaWAN 863-870 ANALOG PWR is a ready-to-use radio transmitter enabling any type of 0-10V or 4-20mA sensor to be converted into a wireless communicating sensor. This product meets the needs of users who need to remotely monitor data of any kind (temperature, pressure, level, humidity, CO², speed, brightness, opening, etc.).
The use of the LoRaWAN protocol allows you to integrate the LoRaWAN 863-870 ANALOG PWR into any network that is already deployed. Two sensors can be supported by a single LoRaWAN 863-870 ANALOG PWR transmitter. The product transmits the data from the sensors either periodically or in an event-related way based on top or bottom thresholds or on detection of a change of state on its digital inputs.
The configuration of the transmitter is accessible by the user via a micro-USB port, allowing in particular a choice of modes of transmission, periodicity or type of interface (0-10V or 4-20mA). The LoRaWAN 863-870 ANALOG PWR is powered by an external power supply.
The Adeunis® LoRaWAN 863-870 ANALOG PWR is a ready-to-use radio transmitter enabling any type of 0-10V or 4-20mA sensor to be converted into a wireless communicating sensor. This product meets the needs of users who need to remotely monitor data of any kind (temperature, pressure, level, humidity, CO², speed, brightness, opening, etc.).
The use of the LoRaWAN protocol allows you to integrate the LoRaWAN 863-870 ANALOG PWR into any network that is already deployed. Two sensors can be supported by a single LoRaWAN 863-870 ANALOG PWR transmitter. The product transmits the data from the sensors either periodically or in an event-related way based on top or bottom thresholds or on detection of a change of state on its digital inputs.
The configuration of the transmitter is accessible by the user via a micro-USB port, allowing in particular a choice of modes of transmission, periodicity or type of interface (0-10V or 4-20mA). The LoRaWAN 863-870 ANALOG PWR is powered by an external power supply.
Features
- Compatible with EU863-870 LoRaWAN™ networks
- 2 inputs 0-10V or 4-20mA
- Possibility of triggering measurement via 2 dedicated inputs
- Local and remote configuration
- Ready to use solution
- Low power consumption for optimal autonomy
- External power supply required (not included)
Details | |
---|---|
Product Code | ARF8200AA |
Modes | Periodic or Event |
Analog Inputs | 2x 0-10V or 4-20mA |
Dimensions | 105 x 50 x 27 mm |
Weight | 70 g |
Casing | IP67 |
Integrated Fastening System | DIN rail, tube, wall mount, flange |
Operating Temperature Range | -25°C to + 70°C |
Zone | LoRaWAN: EU863-870 |
Details | |
---|---|
