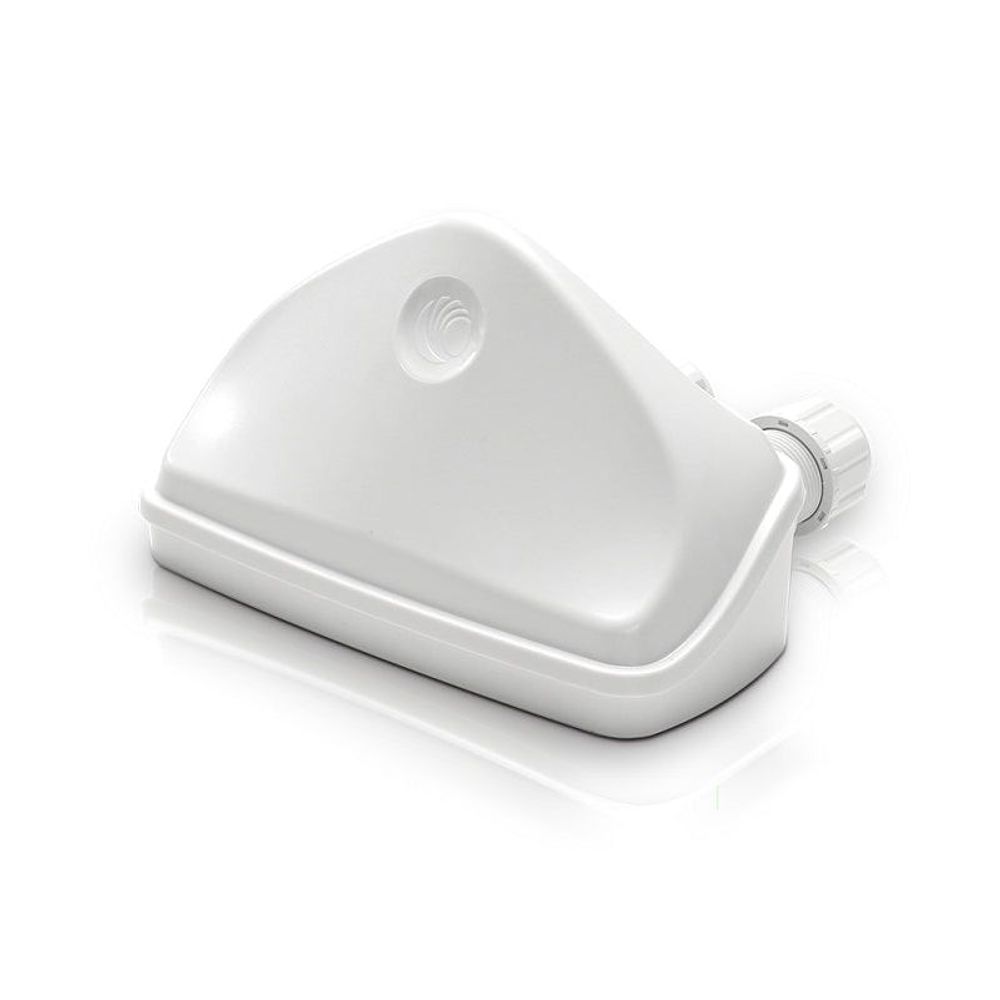

C000000L066 - Cambium cnPulse Sync Generator with CambiumSYNC
C000000L066 - Cambium cnPulse Sync Generator with CambiumSYNC
SKU:C000000L066
Regular price
$509.00 NZD
Regular price
Sale price
$509.00 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Cambium cnPulse Sync Generator with CambiumSYNC.
cnPulse is the latest GPS synchronization generation device designed specifically for Cambium Networks PMP and PTP radios. The cnPulse module is IP67 (weather proof and supports a wide temperature range for rugged environments.The GPS receiver is highly reliable and supports both GPS and GNSS signals. cnPulse gets it power from the ODU AUX port in mode 1 or from the CAT-5 drop cable in mode 2 so no external power supply is required. There are no configuration or software settings required.
TDD Synchronization is critical for deploying dense scalable wireless networks, whether in a PTP or PMP topology. One typical source for synchronization is the GPS satellite signal which carries a precise one pulse per second (1PPS) clock. Using this clock, PMP and PTP networks can synchronize the start and stop time of all transmissions. By synchronizing the transmit and receive signals, each AP or Access Point isn’t transmitting while its neighbor is receiving, thereby reducing self-interference, increasing spectral efficiency and enabling much more dense network deployments.
Note that a single cnPulse can provide synchronization to two AP’s by leveraging mode 1 on the first ODU and mode 2 on the second ODU.
cnPulse is the latest GPS synchronization generation device designed specifically for Cambium Networks PMP and PTP radios. The cnPulse module is IP67 (weather proof and supports a wide temperature range for rugged environments.The GPS receiver is highly reliable and supports both GPS and GNSS signals. cnPulse gets it power from the ODU AUX port in mode 1 or from the CAT-5 drop cable in mode 2 so no external power supply is required. There are no configuration or software settings required.
TDD Synchronization is critical for deploying dense scalable wireless networks, whether in a PTP or PMP topology. One typical source for synchronization is the GPS satellite signal which carries a precise one pulse per second (1PPS) clock. Using this clock, PMP and PTP networks can synchronize the start and stop time of all transmissions. By synchronizing the transmit and receive signals, each AP or Access Point isn’t transmitting while its neighbor is receiving, thereby reducing self-interference, increasing spectral efficiency and enabling much more dense network deployments.
Note that a single cnPulse can provide synchronization to two AP’s by leveraging mode 1 on the first ODU and mode 2 on the second ODU.
Details | |
---|---|
Manufacturer's Product Code | C000000L066B |
Communication Standard | NMEA – 0183 |
Interface Technology | 1 PPS, Tx GPS Location Data (Serial 8/N/1 9600 bps) |
CambiumSYNC Mode Compatibility | PMP 450i, PTP 450i, PMP 450m, PTP 550, ePMP 2000, ePMP 3000 |
Aux Serial Mode Compatibility | CMM5, PMP 450m, PMP 450i, PTP 450i |
Integrated Antenna | GPS L1, 1575.42MHz, GLONASS L1, 1598.0625~1605.375MHz |
Tracking Channels | 33 tracking/ 99 acquisition-channel GPS +GLONASS receiver |
Update Rate | 1 Hz (NMEA) |
Timing Accuracy | ±20ns RMS |
Position Accuracy | 3 meter |
Acquisition - Cold Start | 35 seconds (typical under open clear sky) |
Acquisition Sensitivity | -148 dBm |
Tracking Sensitivity | -165 dBm |
Input Voltage | 4.5V to 6.0 VDC at AUX Port (port 1), 44-59 VDC on PoE Input Port (port 3) |
Max Power Consumption | 0.3W Avg (0.5W Max @ 6V Aux), 2.4W Avg. (4W Max @ 59V Poe) |
Interface 1 | AUX PORT, RJ-45 8-pin shielded; AUX output |
Interface 2 | PoE + CambiumSYNC ODU, RJ-45 8-pin shielded; PoE + CambiumSYNC + Data output |
Interface 3 | PoE+ CambiumSYNC PIDU, RJ-45 8-pin shielded; PoE + Data Input |
Temperature | -40C to +85C (-40F to +185F) |
Humidity | 0% to 95% humidity, non-condensing |
Water/Dust Ingress | IP67 |
Pole Mount Diameter | 25-70mm |
Dimensions | 16.8 cm x 9 cm x 10 cm (LxWxH) (6.6” x 3.5” x 4”) |
Weight | 0.42 kg (15 ounces) |
Details | |
---|---|
Mounting Hardware | cnPulse ships with a right angle bracket for pole mount applications |
Specifications
Cambium cnPulse Sync Generator with CambiumSYNC.
cnPulse is the latest GPS synchronization generation device designed specifically for Cambium Networks PMP and PTP radios. The cnPulse module is IP67 (weather proof and supports a wide temperature range for rugged environments.The GPS receiver is highly reliable and supports both GPS and GNSS signals. cnPulse gets it power from the ODU AUX port in mode 1 or from the CAT-5 drop cable in mode 2 so no external power supply is required. There are no configuration or software settings required.
TDD Synchronization is critical for deploying dense scalable wireless networks, whether in a PTP or PMP topology. One typical source for synchronization is the GPS satellite signal which carries a precise one pulse per second (1PPS) clock. Using this clock, PMP and PTP networks can synchronize the start and stop time of all transmissions. By synchronizing the transmit and receive signals, each AP or Access Point isn’t transmitting while its neighbor is receiving, thereby reducing self-interference, increasing spectral efficiency and enabling much more dense network deployments.
Note that a single cnPulse can provide synchronization to two AP’s by leveraging mode 1 on the first ODU and mode 2 on the second ODU.
cnPulse is the latest GPS synchronization generation device designed specifically for Cambium Networks PMP and PTP radios. The cnPulse module is IP67 (weather proof and supports a wide temperature range for rugged environments.The GPS receiver is highly reliable and supports both GPS and GNSS signals. cnPulse gets it power from the ODU AUX port in mode 1 or from the CAT-5 drop cable in mode 2 so no external power supply is required. There are no configuration or software settings required.
TDD Synchronization is critical for deploying dense scalable wireless networks, whether in a PTP or PMP topology. One typical source for synchronization is the GPS satellite signal which carries a precise one pulse per second (1PPS) clock. Using this clock, PMP and PTP networks can synchronize the start and stop time of all transmissions. By synchronizing the transmit and receive signals, each AP or Access Point isn’t transmitting while its neighbor is receiving, thereby reducing self-interference, increasing spectral efficiency and enabling much more dense network deployments.
Note that a single cnPulse can provide synchronization to two AP’s by leveraging mode 1 on the first ODU and mode 2 on the second ODU.
Details | |
---|---|
Manufacturer's Product Code | C000000L066B |
Communication Standard | NMEA – 0183 |
Interface Technology | 1 PPS, Tx GPS Location Data (Serial 8/N/1 9600 bps) |
CambiumSYNC Mode Compatibility | PMP 450i, PTP 450i, PMP 450m, PTP 550, ePMP 2000, ePMP 3000 |
Aux Serial Mode Compatibility | CMM5, PMP 450m, PMP 450i, PTP 450i |
Integrated Antenna | GPS L1, 1575.42MHz, GLONASS L1, 1598.0625~1605.375MHz |
Tracking Channels | 33 tracking/ 99 acquisition-channel GPS +GLONASS receiver |
Update Rate | 1 Hz (NMEA) |
Timing Accuracy | ±20ns RMS |
Position Accuracy | 3 meter |
Acquisition - Cold Start | 35 seconds (typical under open clear sky) |
Acquisition Sensitivity | -148 dBm |
Tracking Sensitivity | -165 dBm |
Input Voltage | 4.5V to 6.0 VDC at AUX Port (port 1), 44-59 VDC on PoE Input Port (port 3) |
Max Power Consumption | 0.3W Avg (0.5W Max @ 6V Aux), 2.4W Avg. (4W Max @ 59V Poe) |
Interface 1 | AUX PORT, RJ-45 8-pin shielded; AUX output |
Interface 2 | PoE + CambiumSYNC ODU, RJ-45 8-pin shielded; PoE + CambiumSYNC + Data output |
Interface 3 | PoE+ CambiumSYNC PIDU, RJ-45 8-pin shielded; PoE + Data Input |
Temperature | -40C to +85C (-40F to +185F) |
Humidity | 0% to 95% humidity, non-condensing |
Water/Dust Ingress | IP67 |
Pole Mount Diameter | 25-70mm |
Dimensions | 16.8 cm x 9 cm x 10 cm (LxWxH) (6.6” x 3.5” x 4”) |
Weight | 0.42 kg (15 ounces) |
Details | |
---|---|
Mounting Hardware | cnPulse ships with a right angle bracket for pole mount applications |
