Cambium Networks

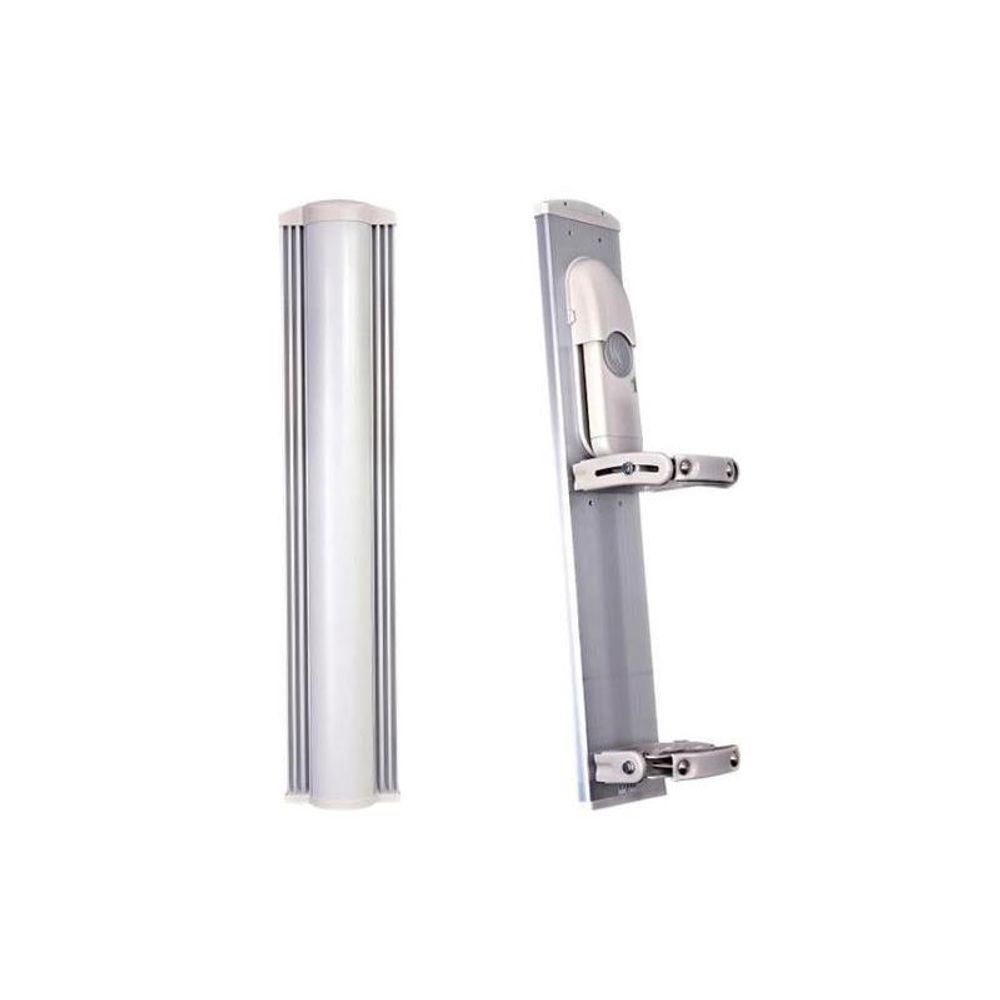

C024900D004A - Cambium 2.3GHz to 2.7GHz 90deg Sector Antenna
C024900D004A - Cambium 2.3GHz to 2.7GHz 90deg Sector Antenna
SKU:C024900D004A
Regular price
$295.00 NZD
Regular price
Sale price
$295.00 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*
The Cambium 2.3GHz to 2.7GHz 90deg Sector Antenna offers an ideal array of features - spectral efficiency, the capability to overcome environmental challenges and higher signal strengths. 2x2 Multiple Input and Multiple Output (MIMO) gives the ePMP 1000 antennas the benefits of dual stream operation, provides interference mitigation by enabling the radios to select the best signal quality and allows for successful deployment of wireless networks in difficult environments. Easy Configuration is supported by adjustable hardware and a simple one-step connection with the radio. As an added bonus, a dedicated place is designed for a GPS antenna, providing more flexibility. ePMP1000 Antennas are outdoor-rated. Cambium Networks perform a rigorous set of environmental tests. We validate and guarantee the specifications and ensure their consistency with real life conditions.
Features
- Suitable for Managed Spectrum Park (MSP) 2.6GHz Applications
- Covers 2300 - 2700 MHz frequencies
Details | |
---|---|
Manufacturer's Product Code | C024900D004A |
Frequency Range | 2300 – 2700 GHz |
Gain | 15 dBi |
Polarisation | Dual Slant +/- 45 degrees |
Max VSWR | 1.7:1 MAX |
Horizontal Beamwidth | 90deg |
Elevation Beamwidth | 11deg |
Connector Type | (2) RP-SMA Male |
Dimensions | 800h x 225w x 67d (excl AP & bracket) |
Wind Loading | 200 km/hr |
Pole Mount Diameter | Supports 1” to 4” Dia. Pole |
Details | |
---|---|
Pole Mount | Yes, Included |
Specifications
The Cambium 2.3GHz to 2.7GHz 90deg Sector Antenna offers an ideal array of features - spectral efficiency, the capability to overcome environmental challenges and higher signal strengths. 2x2 Multiple Input and Multiple Output (MIMO) gives the ePMP 1000 antennas the benefits of dual stream operation, provides interference mitigation by enabling the radios to select the best signal quality and allows for successful deployment of wireless networks in difficult environments. Easy Configuration is supported by adjustable hardware and a simple one-step connection with the radio. As an added bonus, a dedicated place is designed for a GPS antenna, providing more flexibility. ePMP1000 Antennas are outdoor-rated. Cambium Networks perform a rigorous set of environmental tests. We validate and guarantee the specifications and ensure their consistency with real life conditions.
Features
- Suitable for Managed Spectrum Park (MSP) 2.6GHz Applications
- Covers 2300 - 2700 MHz frequencies
Details | |
---|---|
Manufacturer's Product Code | C024900D004A |
Frequency Range | 2300 – 2700 GHz |
Gain | 15 dBi |
Polarisation | Dual Slant +/- 45 degrees |
Max VSWR | 1.7:1 MAX |
Horizontal Beamwidth | 90deg |
Elevation Beamwidth | 11deg |
Connector Type | (2) RP-SMA Male |
Dimensions | 800h x 225w x 67d (excl AP & bracket) |
Wind Loading | 200 km/hr |
Pole Mount Diameter | Supports 1” to 4” Dia. Pole |
Details | |
---|---|
Pole Mount | Yes, Included |
