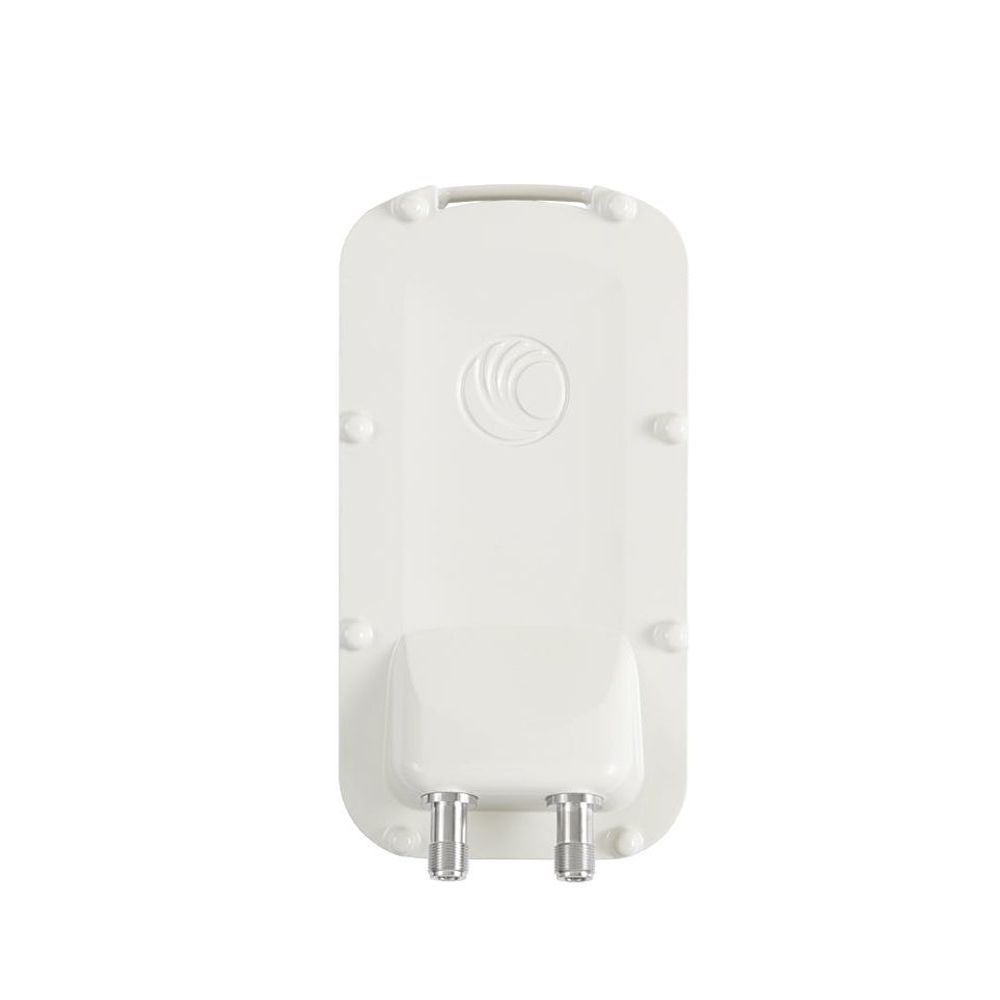

Cambium 5 GHz PMP 450i Connectorized Access Point (ROW).
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Now capable of up to 300 Mbps per sector in a 40 MHz channel!
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Now capable of up to 300 Mbps per sector in a 40 MHz channel!
Features
- Ultra-wide band 5 GHz Radio
- Rugged metal enclosure designed to meet IP-66 and IP-67 standards
- 2x2 OFDM MIMO radio capable of up to 300 Mbps per sector
- Dynamic Interference Filtering
- Multi function AUX port with PoE-Out
Details | |
---|---|
Product Code | C050045A001A |
Frequency Range | 5 GHz : 4900 - 5925 MH |
Channel Width | 5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz |
MAC (Media Access Control) Layer | Cambium Networks proprietary |
Physical Layer | 2x2 MIMO OFDM |
Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
MTU | 1700 bytes |
VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
Subscriber Per Sector | Up to 238 |
ARQ | Yes |
Modulation Levels (Adaptive) | 2X QPSK, 4X 16QAM, 6X 64QAM, 8X 256QAM |
Maximum Deployment Range | Up to 40 miles (64 km) |
Latency | 3 - 5 ms, typical |
GPS Synchroization | Yes, via Autosync (CMM5 or UGPS) |
Quality of Service | Diffserve QoS |
Antenna Connection | 50 ohm, N-Type (Connectorized version only) |
Max Transmit Power | +28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations) |
Surge Suppression (LPU fitted) | EN61000-4-5: 1.2us/50us, 500 V voltage waveform, Recommended external surge suppressor: Cambium Networks Model # C000000L033A |
Mean Time Between Failure | > 40 Years |
Environmental | IP67, IP66 |
Temperature / Humidity | -40°C to +60°C (-40°F to +140°F), 0-100% condensing |
Power Consumption | 15 W typical, 18 W max, 45 W max with Aux port PoE out enabled |
Input Voltage | 48-59 V DC, 802.3at compatible |
Â
Details | |
---|---|
Power Supply | Sold Separately (N000000L034) |
Mounting Hardware | Sold Separately (N000065L031) |
Â
Â
Specifications
Â
Â
Cambium 5 GHz PMP 450i Connectorized Access Point (ROW).
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Now capable of up to 300 Mbps per sector in a 40 MHz channel!
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Now capable of up to 300 Mbps per sector in a 40 MHz channel!
Features
- Ultra-wide band 5 GHz Radio
- Rugged metal enclosure designed to meet IP-66 and IP-67 standards
- 2x2 OFDM MIMO radio capable of up to 300 Mbps per sector
- Dynamic Interference Filtering
- Multi function AUX port with PoE-Out
Details | |
---|---|
Product Code | C050045A001A |
Frequency Range | 5 GHz : 4900 - 5925 MH |
Channel Width | 5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz |
MAC (Media Access Control) Layer | Cambium Networks proprietary |
Physical Layer | 2x2 MIMO OFDM |
Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
MTU | 1700 bytes |
VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
Subscriber Per Sector | Up to 238 |
ARQ | Yes |
Modulation Levels (Adaptive) | 2X QPSK, 4X 16QAM, 6X 64QAM, 8X 256QAM |
Maximum Deployment Range | Up to 40 miles (64 km) |
Latency | 3 - 5 ms, typical |
GPS Synchroization | Yes, via Autosync (CMM5 or UGPS) |
Quality of Service | Diffserve QoS |
Antenna Connection | 50 ohm, N-Type (Connectorized version only) |
Max Transmit Power | +28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations) |
Surge Suppression (LPU fitted) | EN61000-4-5: 1.2us/50us, 500 V voltage waveform, Recommended external surge suppressor: Cambium Networks Model # C000000L033A |
Mean Time Between Failure | > 40 Years |
Environmental | IP67, IP66 |
Temperature / Humidity | -40°C to +60°C (-40°F to +140°F), 0-100% condensing |
Power Consumption | 15 W typical, 18 W max, 45 W max with Aux port PoE out enabled |
Input Voltage | 48-59 V DC, 802.3at compatible |
Details | |
---|---|
Power Supply | Sold Separately (N000000L034) |
Mounting Hardware | Sold Separately (N000065L031) |
