Cambium Networks

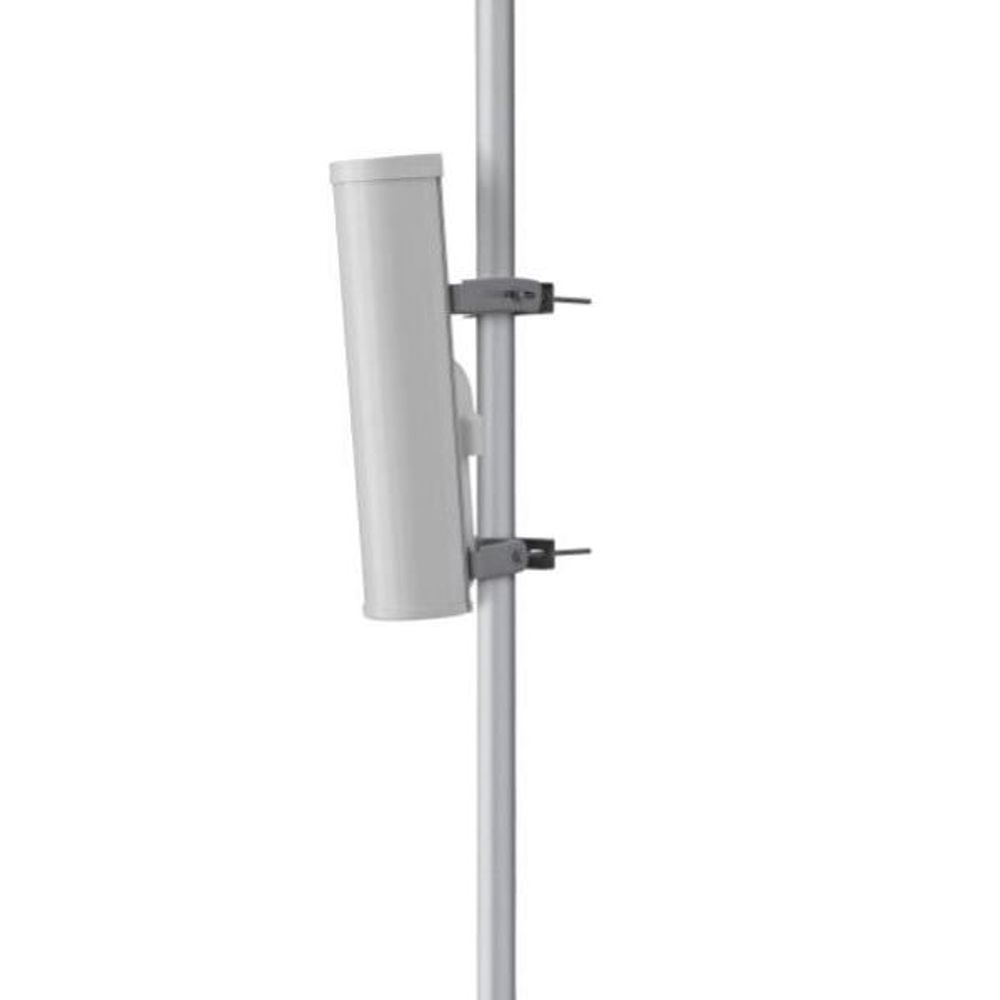

C050900D021A - Cambium ePMP2000/3000L 5GHz 90/120deg Sector Antenna

C050900D021A - Cambium ePMP2000/3000L 5GHz 90/120deg Sector Antenna

C050900D021A

$410.00 NZD
$410.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*
Cambium ePMP2000 and ePMP3000L 5GHz 18dBi 90/120deg Sector Antenna for high capacity Point to Multipoint wireless applications. Cambium Networks has deployed more than five million radios around the world achieving unparalleled degrees of scalability. Based on this vast experience, Cambium Networks has designed an antenna solution that enables network operators to increase the spectral efficiency and scale of their ePMP point-to-mulitpoint (PMP) distribution access networks. Wireless Service Providers deploying networks in 5GHz spectrum will find this sector antenna for 90deg and 120deg applications especially well-suited for high-density WISP networks requiring frequency re-use and wide-band spectrum coverage.


Features
  • Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has 35dB front to back ratio including a wide aperture in the rear-facing direction
  • Consistent gain from 4.9 to 6.0GHz allows the operator to select a channel anywhere in the band and achieve the expected performance
  • Small compact design, integrated ePMP radio mount and GPS antenna integration
Details
Manufacturer's Product Code C050900D021B
Frequency Range 4.9GHz - 5.97GHz
Gain 18dBi
Polarisation Horizontal and Vertical
Horizontal Beamwidth 90/120deg
Connector Type (2) RP-SMA
Dimensions 594x157x110mm
Pole Mount Diameter 50-100mm



Details
Pole Mount Included





Specifications





Details
Manufacturer's Product Code C050900D021B
Frequency Range 4.9GHz - 5.97GHz
Gain 18dBi
Polarisation Horizontal and Vertical
Horizontal Beamwidth 90/120deg
Connector Type (2) RP-SMA
Dimensions 594x157x110mm
Pole Mount Diameter 50-100mm
