Cambium Networks

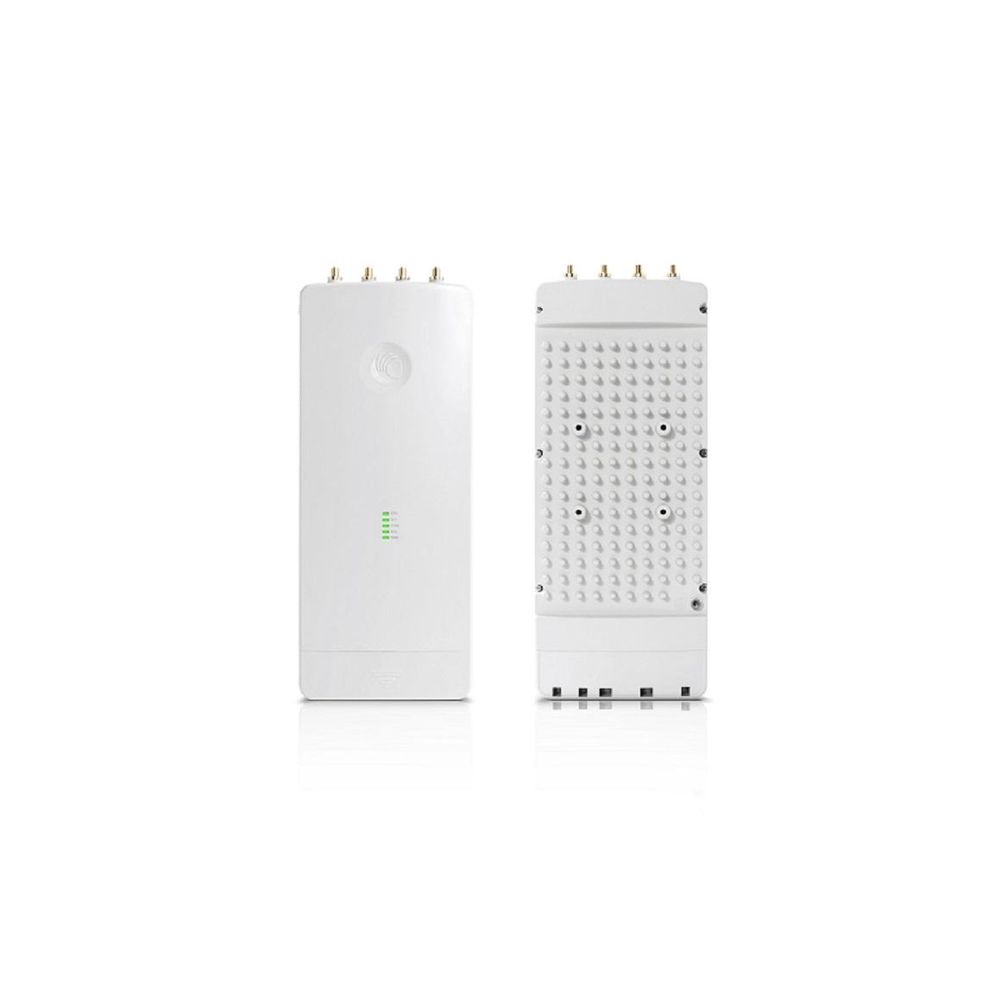

C050910A801 - Cambium ePMP 3000 5GHz Beamforming Access Point Radio
C050910A801 - Cambium ePMP 3000 5GHz Beamforming Access Point Radio
SKU:C050910A801
Regular price
$1,610.00 NZD
Regular price
Sale price
$1,610.00 NZD
Unit price
/
per
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Couldn't load pickup availability
Cambium Networks’ ePMP High Capacity Point to Multipoint wireless product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price.
The Cambium ePMP 3000 is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO).
The ePMP 3000 is a 4X4 MU-MIMO access point that can double the wireless throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.
In addition, the ePMP 3000 continues interference mitigation techniques with the support of the beam steering antenna for uplink, dynamic filtering for neighboring channel interference, and the robust software from the ePMP product line. Perfect for WISP applications.
The ePMP 3000 AP system consists of the ePMP 3000 AP, a 4X4 sector antenna, optional beam steering antenna and 25 dBi and 16 dBi subscriber modules.
The ePMP 3000 system boasts high packet per second performance, peak throughput of 1.2 Gbps and supporting subscriber modules with 600 Mbps of peak throughput.
Features
The Cambium ePMP 3000 is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO).
The ePMP 3000 is a 4X4 MU-MIMO access point that can double the wireless throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.
In addition, the ePMP 3000 continues interference mitigation techniques with the support of the beam steering antenna for uplink, dynamic filtering for neighboring channel interference, and the robust software from the ePMP product line. Perfect for WISP applications.
The ePMP 3000 AP system consists of the ePMP 3000 AP, a 4X4 sector antenna, optional beam steering antenna and 25 dBi and 16 dBi subscriber modules.
The ePMP 3000 system boasts high packet per second performance, peak throughput of 1.2 Gbps and supporting subscriber modules with 600 Mbps of peak throughput.
Features
- Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.
- Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler up to 120 simultaneously active subscriber modules can be served without performance degradation.
- Industry-Leading Interference Tolerance: The intelligent filtering capability on the receive side makes the ePMP 3000 immune to the effects of strong off-channel interferers and on the transmit side serves to reduce off-channel noise for better radio co-location.
- Industry-Leading Spectral Efficiency: MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users at the same time.
- MU-MIMO support with peak throughput of 1.2 Gbps
- 256QAM-5/6, 80 MHz support
- Supports a wide frequency range: 4910 – 5970 MHz
- 802.3at compliant 100/1000BaseT interface
- Frequency re-use with GPS sync, interference mitigation with beam steering antenna and dynamic filtering
- Free Cloud or on-premises network management with cnMaestro
- IP55 Outdoor Rated
- 3 Year Standard Warranty
| Details | |
|---|---|
| Manufacturer's Code | C050910A801A |
| Output Power | 0 to +32 dBm (combined, to regional EIRP limit) (2 dB interval) |
| Channel Width | 20 / 40 / 80 MHz |
| Frequency Range | 4910 – 5980 MHz |
| Protocols Used | IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTPs, SNMPv2c, SSH |
| Interfaces | 100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port |
| PoE In | 56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter |
| Max Power consumption | 25W |
| Number of chains | 4 |
| Polarisation | 4x4 MUMIMO/OFDM |
| Dimensions | 22.2 x 12.4 x 4.5 cm (without brackets) |
| IP Rating | IP55 |
| Temperature | -30°C to +55°C |
| Subscribers per Sector | Up to 120 |
| Details | |
|---|---|
| Power Supply | 3 Pin Clover Lead |
| Power Injector | Included |
Specifications
Cambium Networks’ ePMP High Capacity Point to Multipoint wireless product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price.
The Cambium ePMP 3000 is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO).
The ePMP 3000 is a 4X4 MU-MIMO access point that can double the wireless throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.
In addition, the ePMP 3000 continues interference mitigation techniques with the support of the beam steering antenna for uplink, dynamic filtering for neighboring channel interference, and the robust software from the ePMP product line. Perfect for WISP applications.
The ePMP 3000 AP system consists of the ePMP 3000 AP, a 4X4 sector antenna, optional beam steering antenna and 25 dBi and 16 dBi subscriber modules.
The ePMP 3000 system boasts high packet per second performance, peak throughput of 1.2 Gbps and supporting subscriber modules with 600 Mbps of peak throughput.
Click here for more information about the complete Point to Multi-Point product range for Cambium ePMP 3000.
The Cambium ePMP 3000 is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO).
The ePMP 3000 is a 4X4 MU-MIMO access point that can double the wireless throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.
In addition, the ePMP 3000 continues interference mitigation techniques with the support of the beam steering antenna for uplink, dynamic filtering for neighboring channel interference, and the robust software from the ePMP product line. Perfect for WISP applications.
The ePMP 3000 AP system consists of the ePMP 3000 AP, a 4X4 sector antenna, optional beam steering antenna and 25 dBi and 16 dBi subscriber modules.
The ePMP 3000 system boasts high packet per second performance, peak throughput of 1.2 Gbps and supporting subscriber modules with 600 Mbps of peak throughput.
Click here for more information about the complete Point to Multi-Point product range for Cambium ePMP 3000.
Features
- Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.
- Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler up to 120 simultaneously active subscriber modules can be served without performance degradation.
- Industry-Leading Interference Tolerance: The intelligent filtering capability on the receive side makes the ePMP 3000 immune to the effects of strong off-channel interferers and on the transmit side serves to reduce off-channel noise for better radio co-location.
- Industry-Leading Spectral Efficiency: MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users at the same time.
- MU-MIMO support with peak throughput of 1.2 Gbps
- 256QAM-5/6, 80 MHz support
- Supports a wide frequency range: 4910 – 5970 MHz
- 802.3at compliant 100/1000BaseT interface
- Frequency re-use with GPS sync, interference mitigation with beam steering antenna and dynamic filtering
- Free Cloud or on-premises network management with cnMaestro
- IP55 Outdoor Rated
- 3 Year Standard Warranty
| Details | |
|---|---|
| Manufacturer's Code | C050910A801A |
| Output Power | 0 to +32 dBm (combined, to regional EIRP limit) (2 dB interval) |
| Channel Width | 20 / 40 / 80 MHz |
| Frequency Range | 4910 – 5980 MHz |
| Protocols Used | IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTPs, SNMPv2c, SSH |
| Interfaces | 100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port |
| PoE In | 56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter |
| Max Power consumption | 25W |
| Number of chains | 4 |
| Polarisation | 4x4 MUMIMO/OFDM |
| Dimensions | 22.2 x 12.4 x 4.5 cm (without brackets) |
| IP Rating | IP55 |
| Temperature | -30°C to +55°C |
| Subscribers per Sector | Up to 120 |
| Details | |
|---|---|
| Power Supply | 3 Pin Clover Lead |
| Power Injector | Included |
