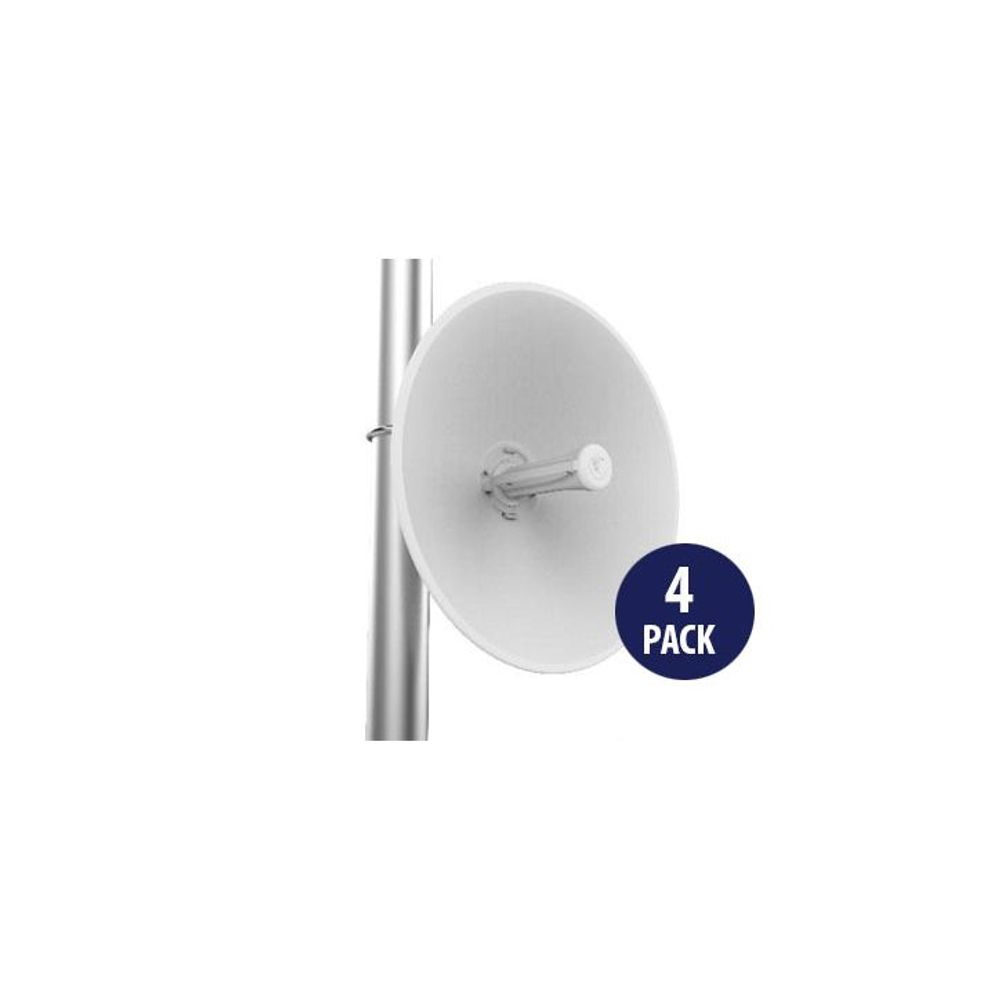

C050910M801 - Cambium ePMP 5 GHz Force 300-25 High Gain Radio 4-Pack
C050910M801 - Cambium ePMP 5 GHz Force 300-25 High Gain Radio 4-Pack
SKU:C050910M801
Regular price
$1,399.00 NZD
Regular price
Sale price
$1,399.00 NZD
Unit price
/
per
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Couldn't load pickup availability
Cambium ePMP 5 GHz Force 300-25 High Gain, High TX power CPE Radio 4-Pack. The Cambium Force 300-25 continues the tradition of previous products with an integrated 25dBi dish with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force300-25 also supports an always on spectrum analyser.
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-25 offers a compelling yet affordable point to point product and a future high gain subscriber module for the ePMP3000 Access Point.
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-25 offers a compelling yet affordable point to point product and a future high gain subscriber module for the ePMP3000 Access Point.
Features
- Convenient 4-Pack packaging to reduce shipping costs
- Cambium Networks’ ePMP Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
- The ePMP Force 300-25 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
- The ePMP Force 300-25 supports constant monitoring of the radio spectrum and allows for live action without bringing down the radio.
- Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
- QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority.
| Details | |
|---|---|
| Manufacturer's Code | C050910M801A |
| Channel Width | 20/40/80 MHz |
| Proprietary Physical | Layer Air Interface on top of 802.11ac Wave 2 technology (2x2 MIMO/OFDM) |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910–5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestroâ„¢ |
| VLAN | 802.1Q with 802.1p priority |
| Modulation | MCS0 (BPSK) to MCS9 (256 QAM 5/6) |
| Transmit Power Range | 0 to +27 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Antenna Gain | 25dBi |
| 3 dB Beamwidth Azimuth | 6º to 10º |
| 3 dB Beamwidth Elevation | 6º to 10º |
| Front-To-Back Isolation | 25 dB |
| Cross Polarization | 25 dB |
| Surge Suppression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to +60°C |
| Weight | 2.4 kg (Includes mounting bracket) |
| Wind Survival | 180 km/hour |
| Dimensions (Dia x Depth) | 470 x 310 mm with mounting bracket attached |
| Pole Diameter Range | 64 - 76 mm with included clamp |
| Power Consumption | 12 W (Up to 15 W in extreme cold temperatures when heater is activated.) |
| Input Voltage | 30 V Passive PoE (14-30 V DC Input) |
| Encryption | 128-bit AES (CCMP mode) |
Â
| Details | |
|---|---|
| Power Supply | 30V PoE Power Supply included |
| Pole Mount Bracket | Included |
Â
Â
Specifications
Â
Â
Cambium ePMP 5 GHz Force 300-25 High Gain, High TX power CPE Radio 4-Pack. The Cambium Force 300-25 continues the tradition of previous products with an integrated 25dBi dish with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force300-25 also supports an always on spectrum analyser.
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-25 offers a compelling yet affordable point to point product and a future high gain subscriber module for the ePMP3000 Access Point.
Click here for more information about the complete Point to Multi-Point product range for Cambium ePMP 3000.
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-25 offers a compelling yet affordable point to point product and a future high gain subscriber module for the ePMP3000 Access Point.
Click here for more information about the complete Point to Multi-Point product range for Cambium ePMP 3000.
Features
- Convenient 4-Pack packaging to reduce shipping costs
- Cambium Networks’ ePMP Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
- The ePMP Force 300-25 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
- The ePMP Force 300-25 supports constant monitoring of the radio spectrum and allows for live action without bringing down the radio.
- Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
- QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority.
| Details | |
|---|---|
| Manufacturer's Code | C050910M801A |
| Channel Width | 20/40/80 MHz |
| Proprietary Physical | Layer Air Interface on top of 802.11ac Wave 2 technology (2x2 MIMO/OFDM) |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910–5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestroâ„¢ |
| VLAN | 802.1Q with 802.1p priority |
| Modulation | MCS0 (BPSK) to MCS9 (256 QAM 5/6) |
| Transmit Power Range | 0 to +27 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Antenna Gain | 25dBi |
| 3 dB Beamwidth Azimuth | 6º to 10º |
| 3 dB Beamwidth Elevation | 6º to 10º |
| Front-To-Back Isolation | 25 dB |
| Cross Polarization | 25 dB |
| Surge Suppression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to +60°C |
| Weight | 2.4 kg (Includes mounting bracket) |
| Wind Survival | 180 km/hour |
| Dimensions (Dia x Depth) | 470 x 310 mm with mounting bracket attached |
| Pole Diameter Range | 64 - 76 mm with included clamp |
| Power Consumption | 12 W (Up to 15 W in extreme cold temperatures when heater is activated.) |
| Input Voltage | 30 V Passive PoE (14-30 V DC Input) |
| Encryption | 128-bit AES (CCMP mode) |
| Details | |
|---|---|
| Power Supply | 30V PoE Power Supply included |
| Pole Mount Bracket | Included |
