Cambium Networks
C050940M851 - Cambium ePMP 5 GHz Force 4525L Subscriber Module (6-Pack)
C050940M851 - Cambium ePMP 5 GHz Force 4525L Subscriber Module (6-Pack)
SKU:C050940M851
Regular price
$1,998.00 NZD
Regular price
Sale price
$1,998.00 NZD
Unit price
/
per
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Couldn't load pickup availability

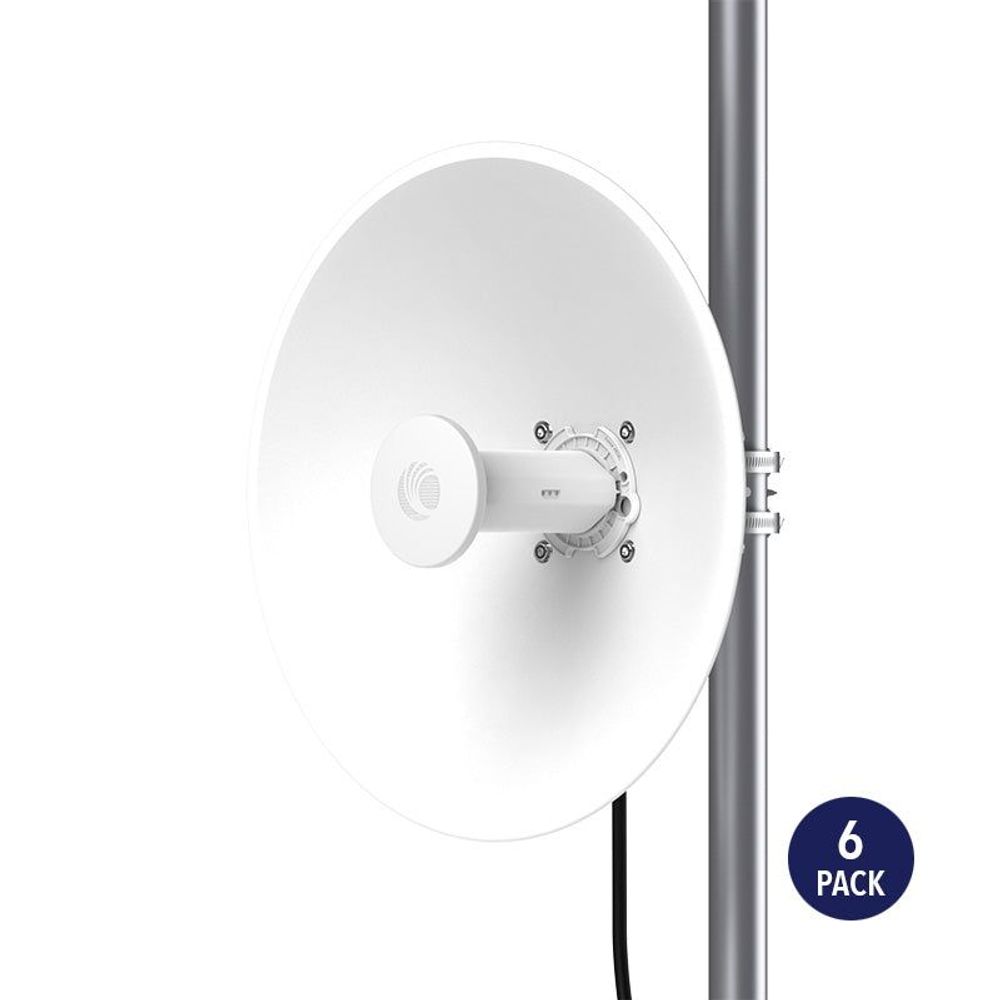

Cambium ePMP 5 GHz Force 4525L Subscriber Module (6-Pack).
Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The Force 4500 series of subscriber modules (SM) meet this demand by offering high performance and low latency across both point-to-multipoint and point-to-point deployments.
Force 4500 SM series have the following differentiating features:
• High capacity and latencies less than 5 ms when using ePTP technology
• Interoperability with the ePMP 4500 which uses MU-MIMO to achieve up to 4 Gbps per sector by transmitting to four ePMP 4500 SM’s simultaneously.
• 1024QAM and an integrated 25 dBi dish antenna
• Multiple levels of QoS (Quality of Service) for voice, video and data applications supporting a wide variety of service packages for both residential and enterprise users
• Security features meeting the requirements of enterprise, industrial, government and service provider users
• Management by Cambium Networks cnMaestro™ element management system for easy provisioning, monitoring and upgrades
• Network planning with LINKPlanner and cnHeat
• 3-year hardware warranty and support from Cambium Networks
• Each SM comes with a Power over Ethernet injector and pole mount hardware included
Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The Force 4500 series of subscriber modules (SM) meet this demand by offering high performance and low latency across both point-to-multipoint and point-to-point deployments.
Force 4500 SM series have the following differentiating features:
• High capacity and latencies less than 5 ms when using ePTP technology
• Interoperability with the ePMP 4500 which uses MU-MIMO to achieve up to 4 Gbps per sector by transmitting to four ePMP 4500 SM’s simultaneously.
• 1024QAM and an integrated 25 dBi dish antenna
• Multiple levels of QoS (Quality of Service) for voice, video and data applications supporting a wide variety of service packages for both residential and enterprise users
• Security features meeting the requirements of enterprise, industrial, government and service provider users
• Management by Cambium Networks cnMaestro™ element management system for easy provisioning, monitoring and upgrades
• Network planning with LINKPlanner and cnHeat
• 3-year hardware warranty and support from Cambium Networks
• Each SM comes with a Power over Ethernet injector and pole mount hardware included
Features
- High-performance subscriber modules for point-to-point and point-to-multipoint fixed wireless broadband applications
- Gbps capacity leveraging 80 MHz channels
- Compatible with ePMP 4500 Series Access Points for MU-MIMO performance.
- 3-year hardware warranty
| Details | |
|---|---|
| Manufacturer's Code | C050940M851A |
| Channel Width | 20 / 40 / 80 MHz |
| Proprietary Physical Layer | 2x2 MIMO/OFDMA |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 5150–5920 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™ VLAN 802.1Q with 802.1p priority |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -56 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -53 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6) |
| Transmit Power Range | +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| QoS (Quality of Service) | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR* support |
| Surge Supression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to 55°C (-22°F to 131°F) |
| Weight | 1.88Kg (4.14lbs) |
| Wind Survival | 200 km/hour (124 mi/hour) |
| Dimensions (Dia x Depth) | 472 x 472 x 281 mm (18.5 x 18.5 x 11.0 in) |
| Pole Diameter Range | Center: 3.1 to 7.6 cm (1.25 to 3.0 inches) |
| Power Consumption | 13W |
| Input Voltage | Passive PoE 13–30V |
| Encryption | 128-bit AES (CCMP mode), 256-bit AES optional where allowed |
| Details | |
|---|---|
| Power Supply | 30V 15W PoE's Included |
| Mounting Hardware | Pole Mount Bracket Included with 2x Steel Hose Clamps |
Specifications
Cambium ePMP 5 GHz Force 4525L Subscriber Module (6-Pack).
Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The Force 4500 series of subscriber modules (SM) meet this demand by offering high performance and low latency across both point-to-multipoint and point-to-point deployments.
Force 4500 SM series have the following differentiating features:
• High capacity and latencies less than 5 ms when using ePTP technology
• Interoperability with the ePMP 4500 which uses MU-MIMO to achieve up to 4 Gbps per sector by transmitting to four ePMP 4500 SM’s simultaneously.
• 1024QAM and an integrated 25 dBi dish antenna
• Multiple levels of QoS (Quality of Service) for voice, video and data applications supporting a wide variety of service packages for both residential and enterprise users
• Security features meeting the requirements of enterprise, industrial, government and service provider users
• Management by Cambium Networks cnMaestro™ element management system for easy provisioning, monitoring and upgrades
• Network planning with LINKPlanner and cnHeat
• 3-year hardware warranty and support from Cambium Networks
• Each SM comes with a Power over Ethernet injector and pole mount hardware included
Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The Force 4500 series of subscriber modules (SM) meet this demand by offering high performance and low latency across both point-to-multipoint and point-to-point deployments.
Force 4500 SM series have the following differentiating features:
• High capacity and latencies less than 5 ms when using ePTP technology
• Interoperability with the ePMP 4500 which uses MU-MIMO to achieve up to 4 Gbps per sector by transmitting to four ePMP 4500 SM’s simultaneously.
• 1024QAM and an integrated 25 dBi dish antenna
• Multiple levels of QoS (Quality of Service) for voice, video and data applications supporting a wide variety of service packages for both residential and enterprise users
• Security features meeting the requirements of enterprise, industrial, government and service provider users
• Management by Cambium Networks cnMaestro™ element management system for easy provisioning, monitoring and upgrades
• Network planning with LINKPlanner and cnHeat
• 3-year hardware warranty and support from Cambium Networks
• Each SM comes with a Power over Ethernet injector and pole mount hardware included
Features
- High-performance subscriber modules for point-to-point and point-to-multipoint fixed wireless broadband applications
- Gbps capacity leveraging 80 MHz channels
- Compatible with ePMP 4500 Series Access Points for MU-MIMO performance.
- 3-year hardware warranty
| Details | |
|---|---|
| Manufacturer's Code | C050940M851A |
| Channel Width | 20 / 40 / 80 MHz |
| Proprietary Physical Layer | 2x2 MIMO/OFDMA |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 5150–5920 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™ VLAN 802.1Q with 802.1p priority |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -56 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -53 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6) |
| Transmit Power Range | +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| QoS (Quality of Service) | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR* support |
| Surge Supression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to 55°C (-22°F to 131°F) |
| Weight | 1.88Kg (4.14lbs) |
| Wind Survival | 200 km/hour (124 mi/hour) |
| Dimensions (Dia x Depth) | 472 x 472 x 281 mm (18.5 x 18.5 x 11.0 in) |
| Pole Diameter Range | Center: 3.1 to 7.6 cm (1.25 to 3.0 inches) |
| Power Consumption | 13W |
| Input Voltage | Passive PoE 13–30V |
| Encryption | 128-bit AES (CCMP mode), 256-bit AES optional where allowed |
| Details | |
|---|---|
| Power Supply | 30V 15W PoE's Included |
| Mounting Hardware | Pole Mount Bracket Included with 2x Steel Hose Clamps |
