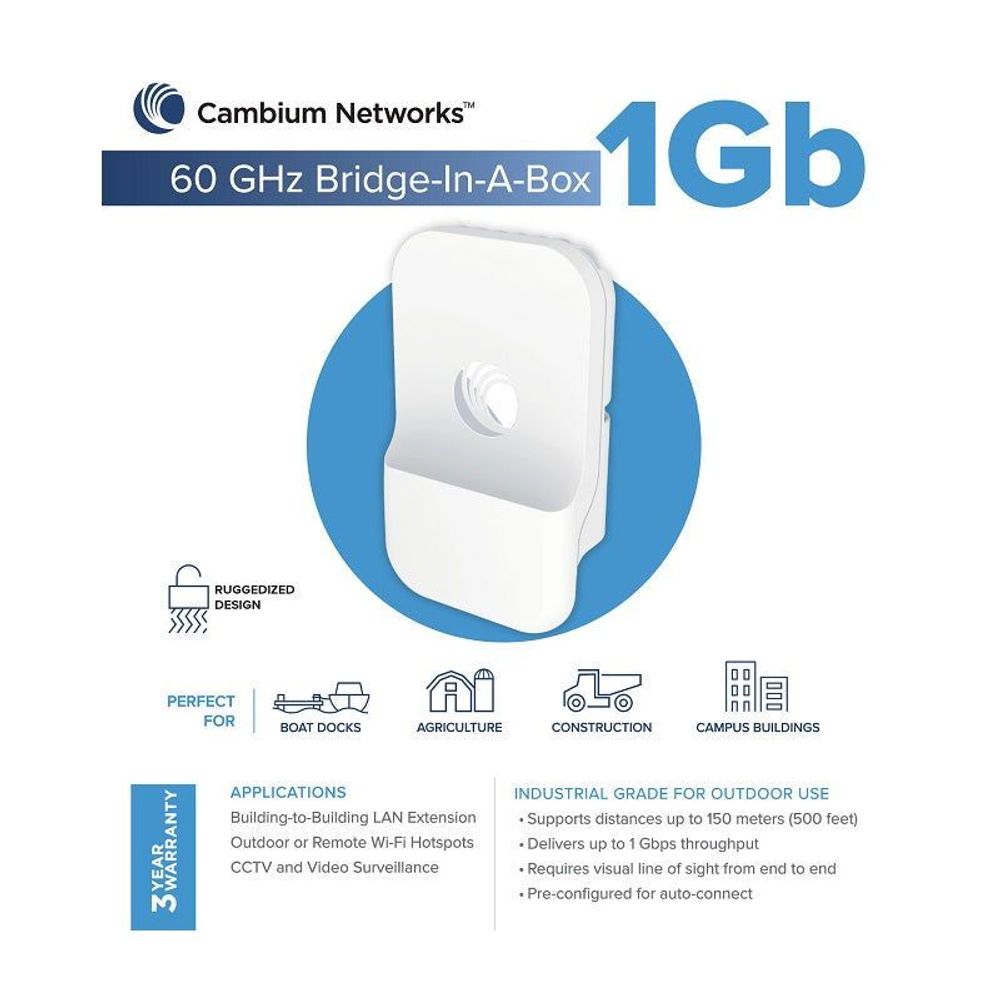

C600510C008 - Cambium cnWave 60 GHz Bridge in a Box 1Gbps Full Duplex Wireless Backhaul
C600510C008 - Cambium cnWave 60 GHz Bridge in a Box 1Gbps Full Duplex Wireless Backhaul
SKU:C600510C008
Regular price
$1,134.00 NZD
Regular price
Sale price
$1,134.00 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Cambium cnWave 60 GHz Bridge in a Box 1Gbps Full Duplex Wireless Backhaul.
Each Bridge-in-a-Box comes with two wireless radio modules and power over Ethernet supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need. The Gigabit modules use the unlicensed 60 GHz frequency band and are extremely easy to deploy as they come pre-configured and pre-paired to connect.
For those places you couldn’t connect before, Bridge-in-a-Box will get you there today.
How are people using Bridge-in-a-Box?
Building-to-building connectivity
Extending Internet Connectivity
Connecting Remote or outdoor Wi-Fi hotspots
Remote camera or CCTV video feeds
Each Bridge-in-a-Box comes with two wireless radio modules and power over Ethernet supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need. The Gigabit modules use the unlicensed 60 GHz frequency band and are extremely easy to deploy as they come pre-configured and pre-paired to connect.
For those places you couldn’t connect before, Bridge-in-a-Box will get you there today.
How are people using Bridge-in-a-Box?
Building-to-building connectivity
Extending Internet Connectivity
Connecting Remote or outdoor Wi-Fi hotspots
Remote camera or CCTV video feeds
Features
- Uses the 60 GHz unlicensed frequency band
- Up to 2 Gbps total throughput
- Range up to 150 meters (500 feet)
- 3-Year Warranty
Details | |
---|---|
Manufacturer's Code | C600510C008A |
Wireless Standard | 802.11ay standard |
Radio Power | Up to 38 dBm EIRP |
Antenna | 22.5 dBi |
Environmental | IP66/67 |
Operating Temperature | -40ºC to 60ºC (-40ºF to 140ºF) |
Mounting | 25 mm to 70 mm (1 in to 2.75 in) |
Security | 128-bit AES encryption |
Frequency Range | 57–66 GHz |
Channel Bandwidth Options | 2.16 GHz, 4.32 GHz |
Ethernet Interface | 1 x 100/1000 BaseT with PoE In |
Protocols | IPv4, IPv6, Layer2 Bridge, Layer3 IPv6 Routing, Open/R mesh |
Network Management | cnMaestro, HTTP, HTTPS, SNMP v2c & v3 |
VLAN | 802.1ad (QinQ), 802.1Q with 802.1p priority |
ARQ | Yes |
Modulation Levels | MCS-0 (BPSK) to MCS-10 (16-QAM-3/4) |
Surge Suppression | 2KV |
Weight | 0.46 kg (1.01 lbs) |
Wind Survival | 200 km/h (124 mph) |
Dimensions H x W x D | 169 x 100 x 54 mm (6.65 x 3.94 x 2.13 in) |
Power Consumption | 10W |
Â
Details | |
---|---|
Power Supply | 3 Pin Clover Lead |
Power Injector | Included |
Â
Â
Specifications
Â
Â
Cambium cnWave 60 GHz Bridge in a Box 1Gbps Full Duplex Wireless Backhaul.
Each Bridge-in-a-Box comes with two wireless radio modules and power over Ethernet supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need. The Gigabit modules use the unlicensed 60 GHz frequency band and are extremely easy to deploy as they come pre-configured and pre-paired to connect.
For those places you couldn’t connect before, Bridge-in-a-Box will get you there today.
How are people using Bridge-in-a-Box?
Building-to-building connectivity
Extending Internet Connectivity
Connecting Remote or outdoor Wi-Fi hotspots
Remote camera or CCTV video feeds
Each Bridge-in-a-Box comes with two wireless radio modules and power over Ethernet supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need. The Gigabit modules use the unlicensed 60 GHz frequency band and are extremely easy to deploy as they come pre-configured and pre-paired to connect.
For those places you couldn’t connect before, Bridge-in-a-Box will get you there today.
How are people using Bridge-in-a-Box?
Building-to-building connectivity
Extending Internet Connectivity
Connecting Remote or outdoor Wi-Fi hotspots
Remote camera or CCTV video feeds
Features
- Uses the 60 GHz unlicensed frequency band
- Up to 2 Gbps total throughput
- Range up to 150 meters (500 feet)
- 3-Year Warranty
Details | |
---|---|
Manufacturer's Code | C600510C008A |
Wireless Standard | 802.11ay standard |
Radio Power | Up to 38 dBm EIRP |
Antenna | 22.5 dBi |
Environmental | IP66/67 |
Operating Temperature | -40ºC to 60ºC (-40ºF to 140ºF) |
Mounting | 25 mm to 70 mm (1 in to 2.75 in) |
Security | 128-bit AES encryption |
Frequency Range | 57–66 GHz |
Channel Bandwidth Options | 2.16 GHz, 4.32 GHz |
Ethernet Interface | 1 x 100/1000 BaseT with PoE In |
Protocols | IPv4, IPv6, Layer2 Bridge, Layer3 IPv6 Routing, Open/R mesh |
Network Management | cnMaestro, HTTP, HTTPS, SNMP v2c & v3 |
VLAN | 802.1ad (QinQ), 802.1Q with 802.1p priority |
ARQ | Yes |
Modulation Levels | MCS-0 (BPSK) to MCS-10 (16-QAM-3/4) |
Surge Suppression | 2KV |
Weight | 0.46 kg (1.01 lbs) |
Wind Survival | 200 km/h (124 mph) |
Dimensions H x W x D | 169 x 100 x 54 mm (6.65 x 3.94 x 2.13 in) |
Power Consumption | 10W |
Details | |
---|---|
Power Supply | 3 Pin Clover Lead |
Power Injector | Included |
