The Vertical Double Surface Mount is to allow for the surface mounting of the Prox Rex, Press Rex, Em Rex and Smart Em Rex Units on a solid wall with one above the other with double vertical surround.

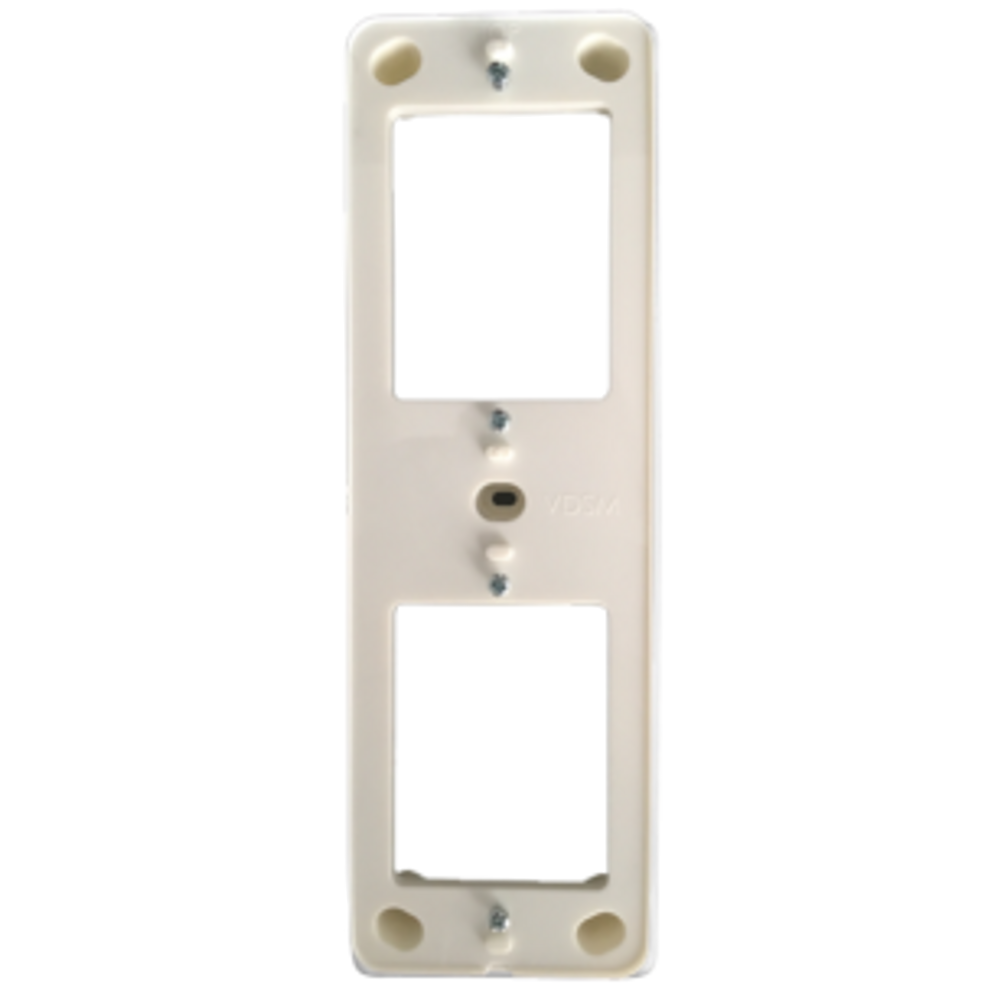

TDL VDSM – Vertical Double Surface Mount

Specifications

• The surround is 245mm H x 78mm W x 25mm D.
• It come complete with shorter product fixing screws.
• The bottom of the VDSM should be mounted at a height of between 1000m and 1100mm off the floor.
• The Surround has breakouts on all sides to take a 20mm conduit.
• There are positioning post which are designed for the mounting of the exit units which means the units line up correctly for the fitting of the double surround
