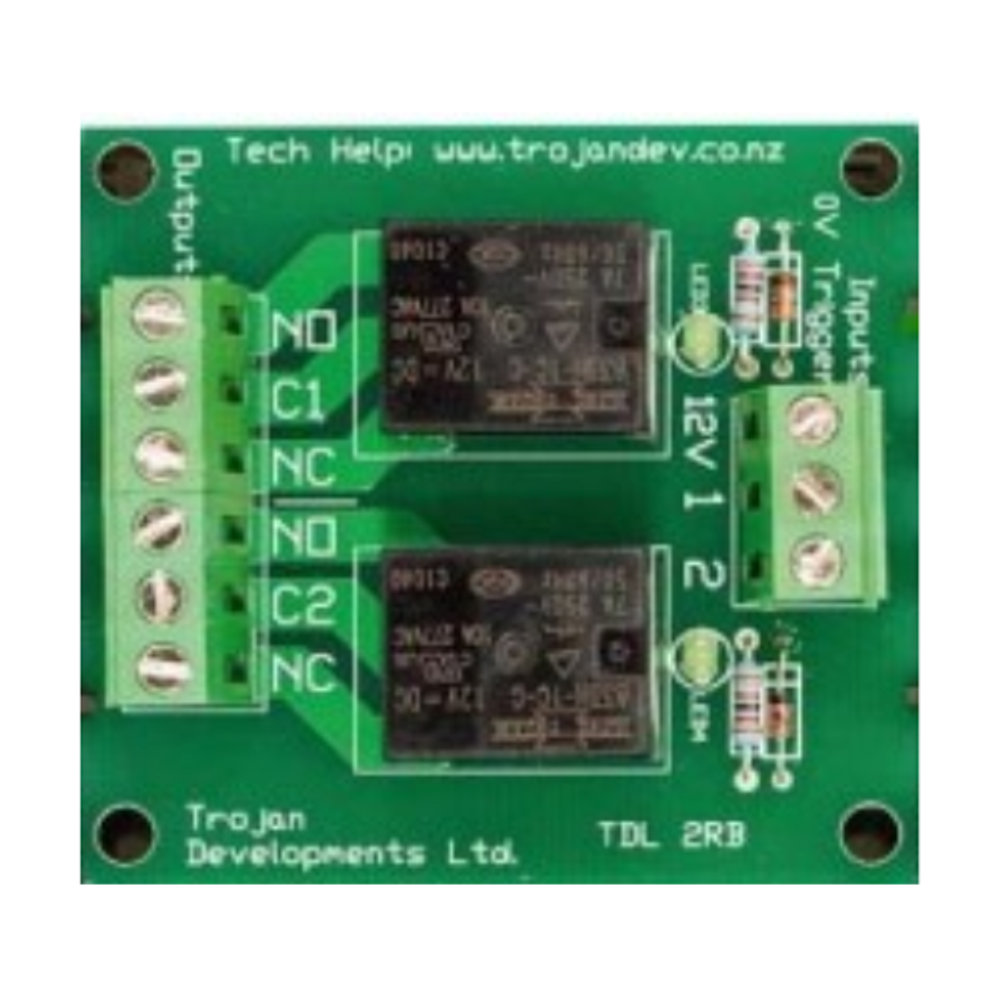

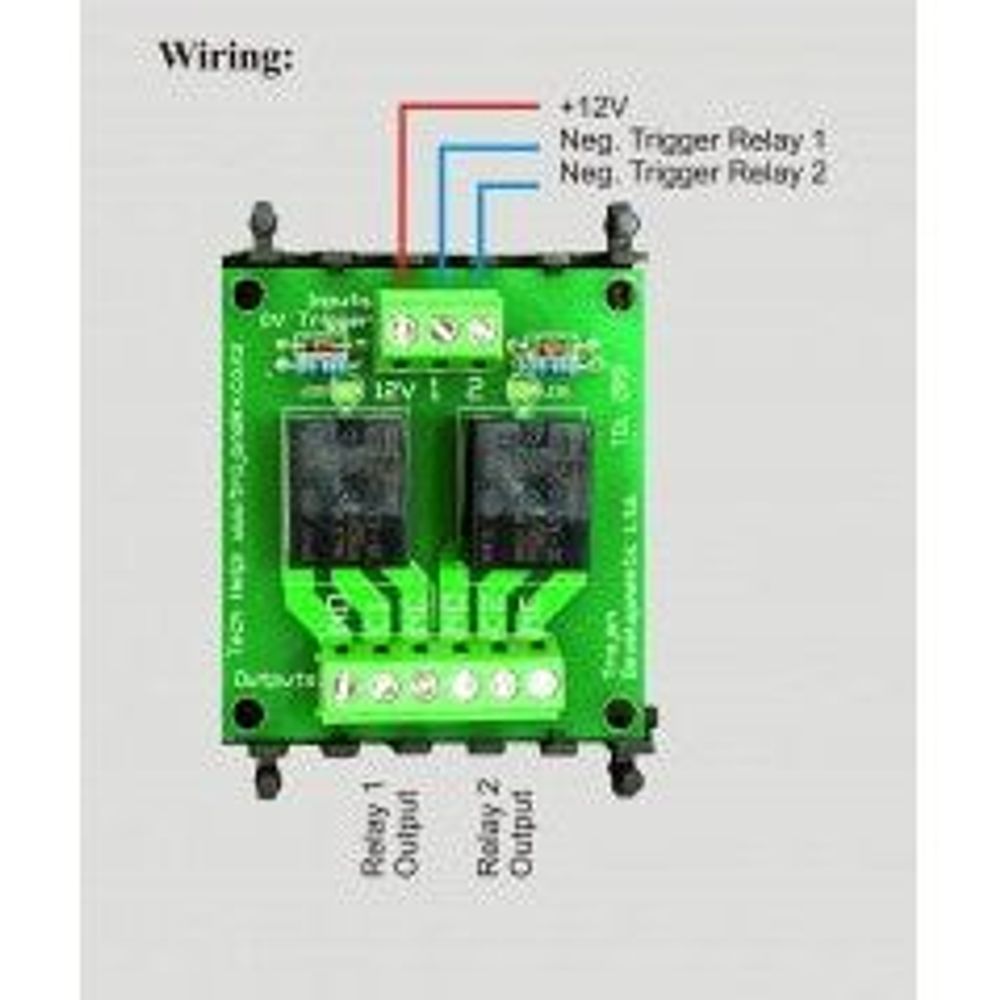

Two Way 8 Amp Power Relay Board The 2 Way 8 Amp Relay Board has 2 x 12Vdc inputs that can switch 2 x 8 amp single pole double throw relays. This unit also fits on the TDL Mounting Base system to ensure a neat and tidy installation.

Features

• Contact rated at 8 Amps AC/DC
• Designed to be used as an interface between a low current switching control board and a high powered lock
• LED to indicate relay status
• Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm² cable
• Fits TDL-MB mounting system
• Modular unit that can be used to switch a number of devices

Specifications

• Two way Relay Board
• Operating Voltage 9 to 16Vdc - 38mA at 13.6 Vdc per relay
• 12Vdc negative trigger inputs
• Two Single Pole Double Throw relays
• Contacts rated at 8 Amps AC/DC
• Dimensions: 55mm (w) x 60mm (h) x 23mm (d)



Specs





TDL 2RB – 2 Way Relay Board

This is a 2 way, 8Amp single pole change over relay board, which is suitable for various access control applications.

The unit is based on a strandard foot print so that it can be mounted with other TDL boards on the optional TDL Mounting Base to ensure a neat and tidy installation.

Specifications

• Contacts rated at 8 Amps AC/DC
• Fits TDL-MB mounting system
• Modular unit that can be used to switch a number of devices
• Designed to be used as an interface between a low current switching control board and a high powered lock
• LED’s to indicate relay status
• Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm²
