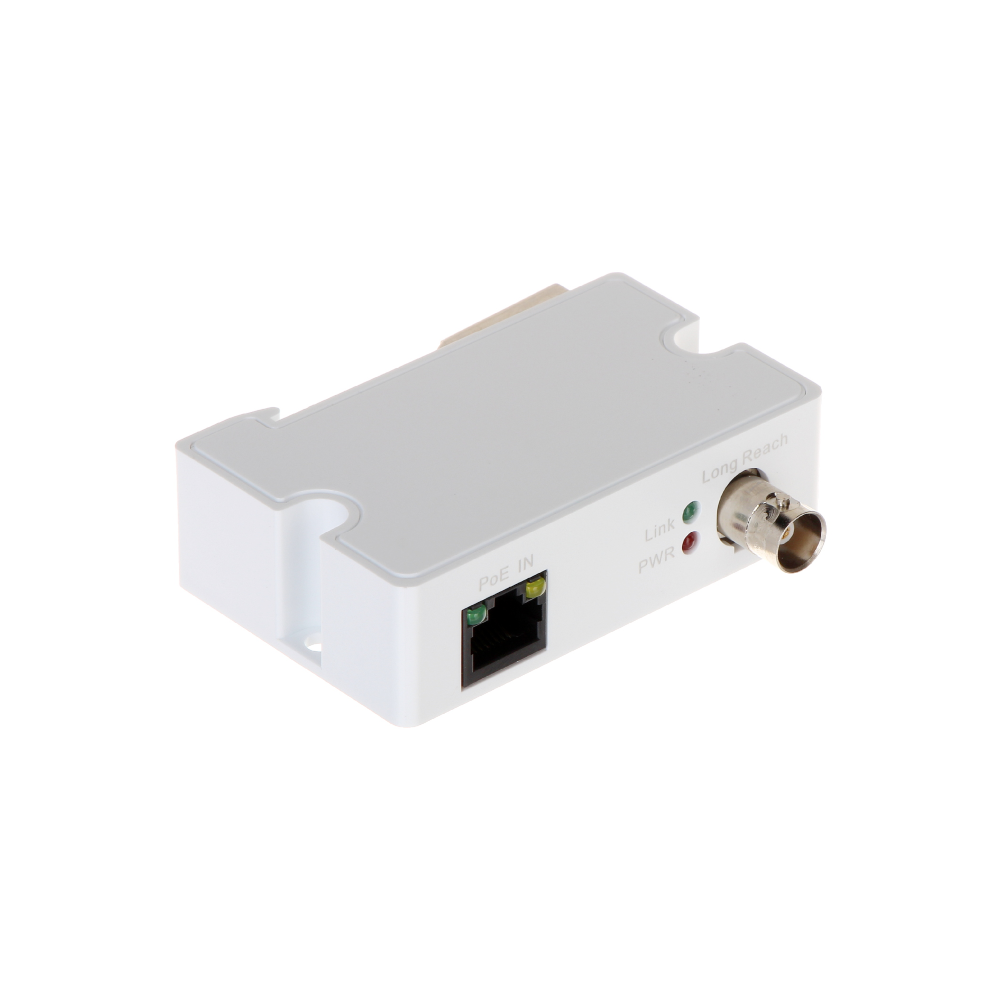

Dahua DH-LR1002-1EC DIN-RAIL IP / PoE over Coax Converter / Extender – Single Un

Dahua DH-LR1002-1EC DIN-RAIL IP / PoE over Coax Converter / Extender – Single Unit – PoE Source-end Unit – Requires PoE Input

Dahua DH-LR1002-1EC DIN-RAIL IP / PoE over Coax Converter / Extender – Single Unit – PoE Source-end Unit – Requires PoE Input

Features :-

• Functional Ports: One (1) RJ45, 10/100 Mbps Base-TX, One (1) BNC
• Transmission Distance: 100 Mbps: 400 m (1312 ft), 10 Mbps: 1000 m (3280 ft)
• Power Consumption: <2 W
• Transmission Bandwidth: RG59 Coaxial Cable: 400 m (1312 ft) at 100 Mbps, 1000 m (3280 ft) at 10 Mbps
• PoE Protocol: IEEE802.3af (PoE) and IEEE802.3at (PoE+)
• Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3x
• Operating Temperature: – 30 °C to 65 °C (– 22 °F to 149 °F)
• Application Humidity: 5% to 95%
• Lightning Protection: Common Mode: 4 KV, Differential Mode: 2 KV
• Dimensions (W x D x H): 79.0 mm x 52.0 mm x 23.0 mm (3.11 in. x 2.05 in. x 0.91 in.)
• Weight: 0.61 kg (1.34 lb)
• Depending on your system, the LR1002 or LR1002-1ET is required with this unit. Please see the attached ePoE Configuration Guide image for more information

Dahua Product-Link -> DH-LR1002-1EC
